Display/Image

Projection System: DLP™

Light Source: Nichia 66 W Laser Diode

Light Source Life: 20000 hours (Standard), 30000 hours (ECO)

Native Resolution: 1920 x 1080

Maximum Resolution: 3840 x 2160

Brightness: 5000 ANSI Lumens (Standard), 3420 lm (ECO), (Compliant with ISO 21118 standard)

Aspect Ratio: 16:9 (Native), 4:3 (Supported)

Contrast Ratio: 50,000:1

Image Size: 31" (78.7 cm) ~ 7.62 m (300")

Throw Ratio: 1.12 to 1.47 (2057.4 mm@2000 mm)

Zoom Ratio: 1.3x

Digital Zoom: 2x

Lens: F = f/2.4~f/2.78, f = 16.90 mm~21.61 mm, Manual Zoom, Manual Focus

Projection Offset (Half-Height): 132%

Projection Mode: Front Ceiling, Rear, Front, Rear Ceiling

Display Color: 1.07 billion

Vertical Sync Rate: 24 ~ 120 Hz

Horizontal Sync Rate: 15 to 135 kHz

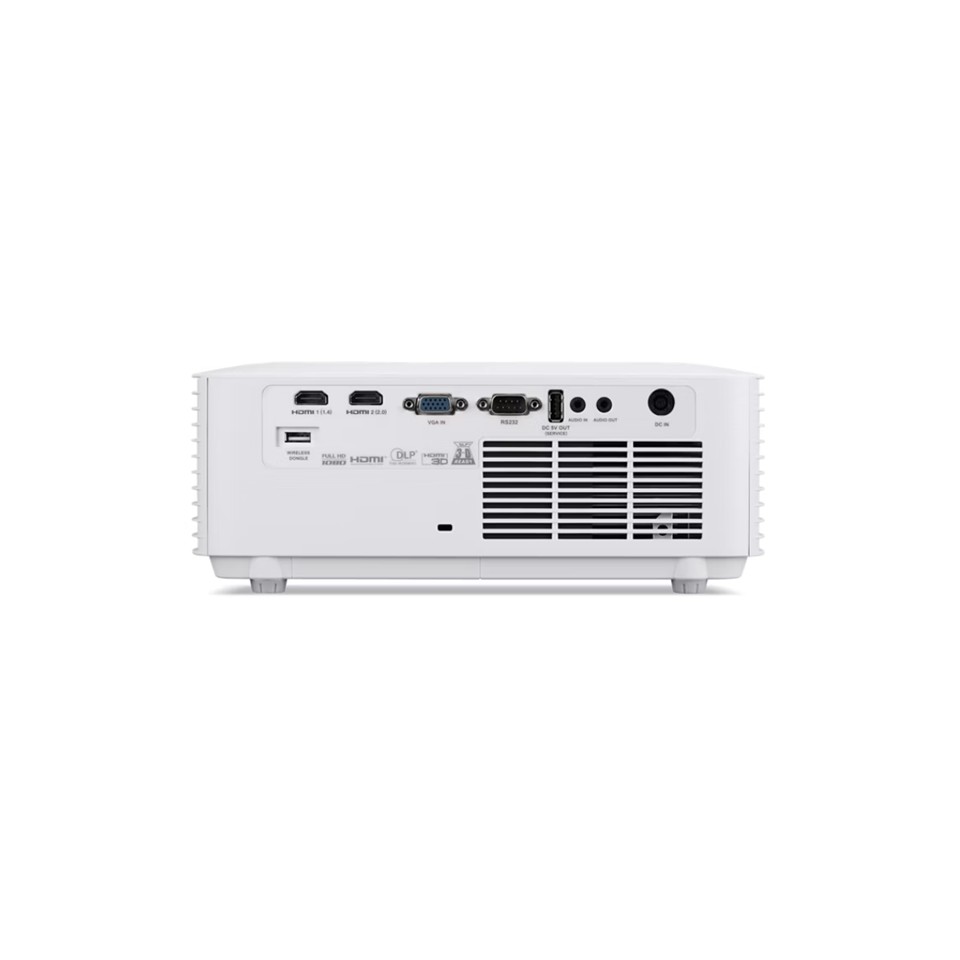

Interfaces/Ports

HDMI: HDMI (2.0) x 2

VGA In: x1, D-sub

Audio In: x1, 3.5mm mini jack

Audio Out: x1, 3.5mm mini jack

S/PDIF

USB Type-A Out: x1, DC Out (5V/1.5A)

Speaker: x1, 15 W Speaker

Control & Network

RS232: x1, D-sub

Wi-Fi Standard: 802.11 a/b/g/n/ac (2.4G/5G), 1T1R (UWA5)

Wireless Projection: Miracast Wi-Fi, EZCast, Chromecast

General

3D Support: DLP™ 3D

Security: Security Bar

                 Kensington Lock

Power Description

Power Consumption: 210Watts (Standard), 160Watts (ECO), 0.5Watts (Standby)

Physical Characteristics

Installation: Ceiling Mountable

[Dimensions (W x D x H): 286 mm (11.26") x 216 mm (8.50") x 115.50 mm (4.55")

286 mm (11.26") x 216 mm (8.50") x 115.50 mm (4.55")

Weight (Approximate): 2.9 kg (6.4 lb)

Standard Accessories

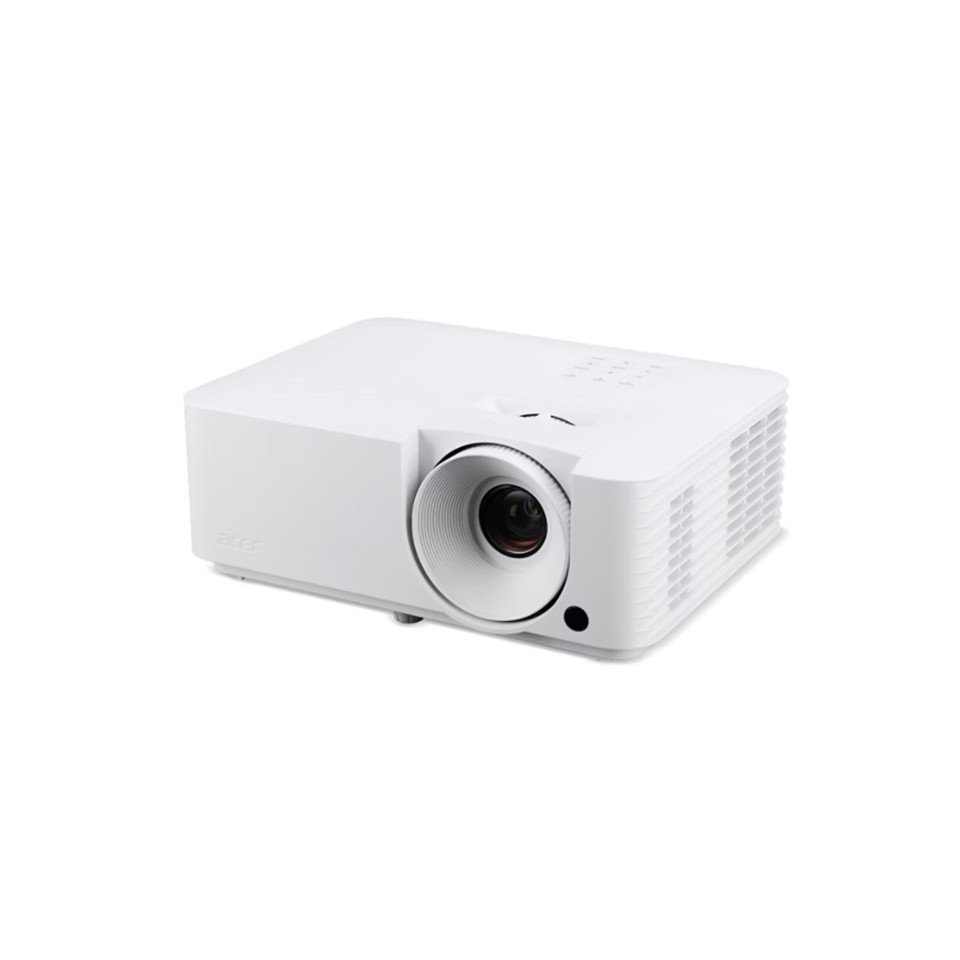

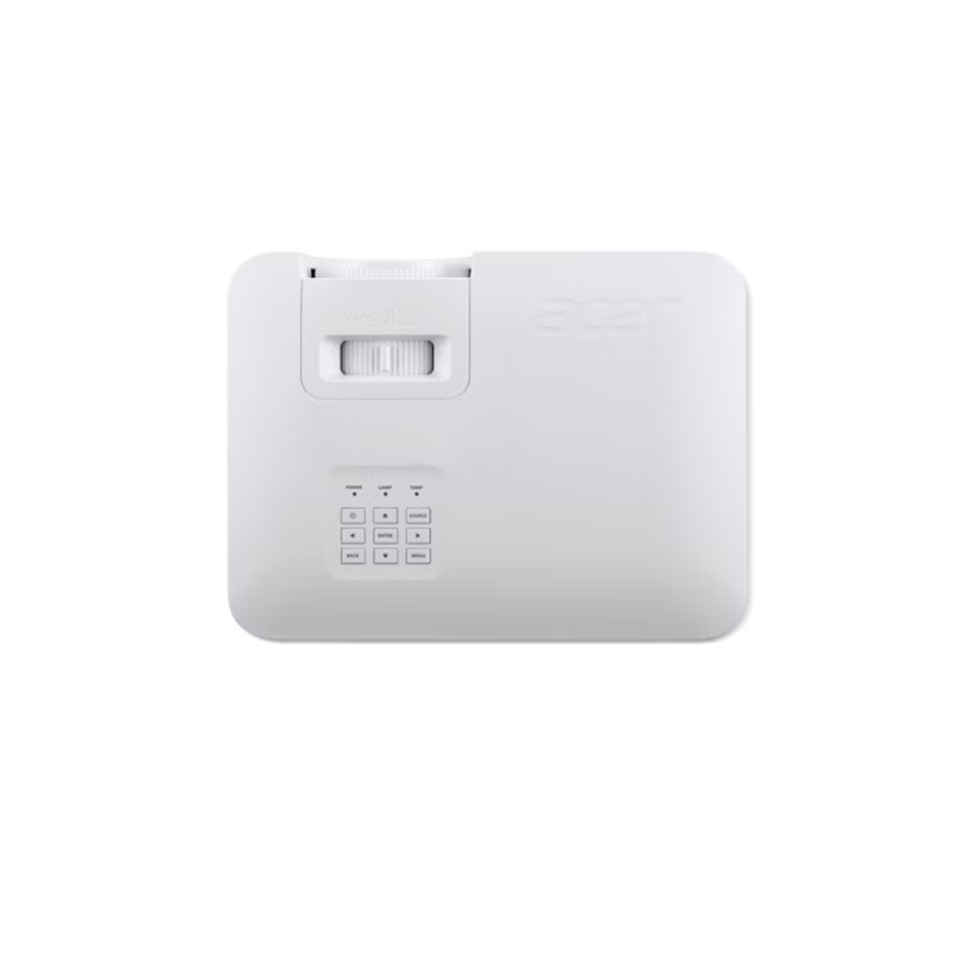

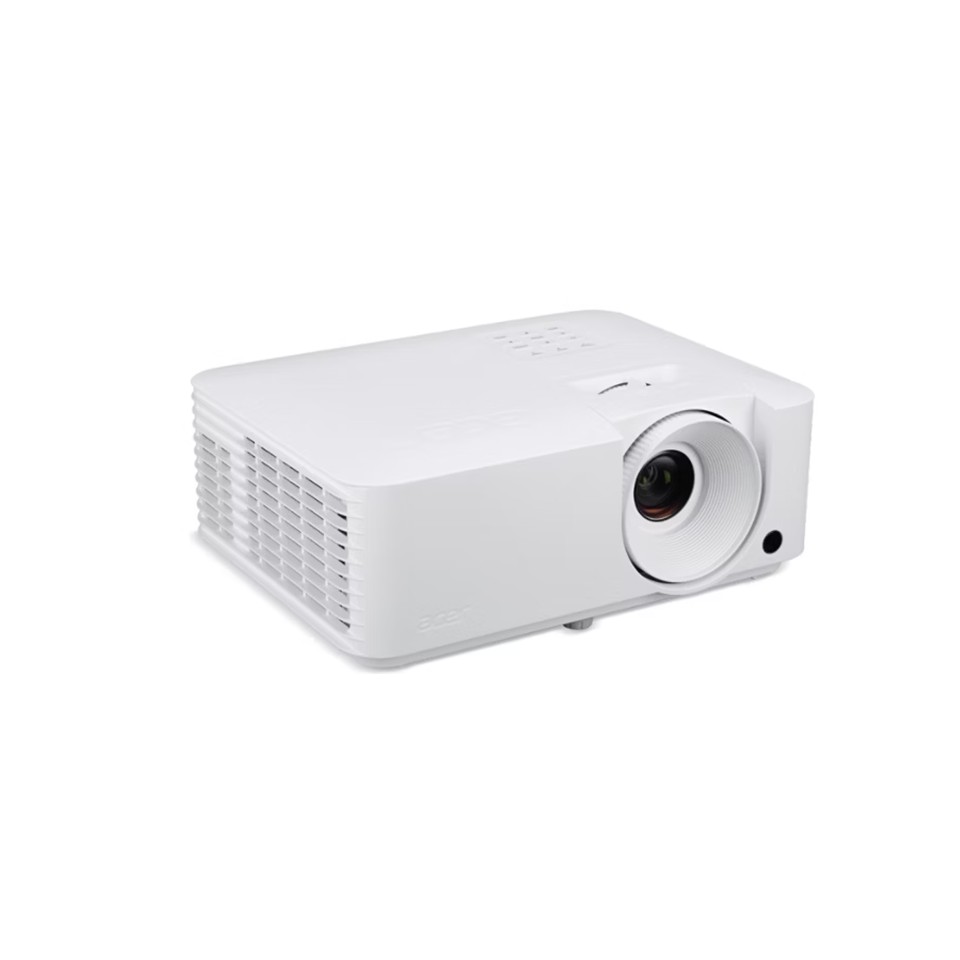

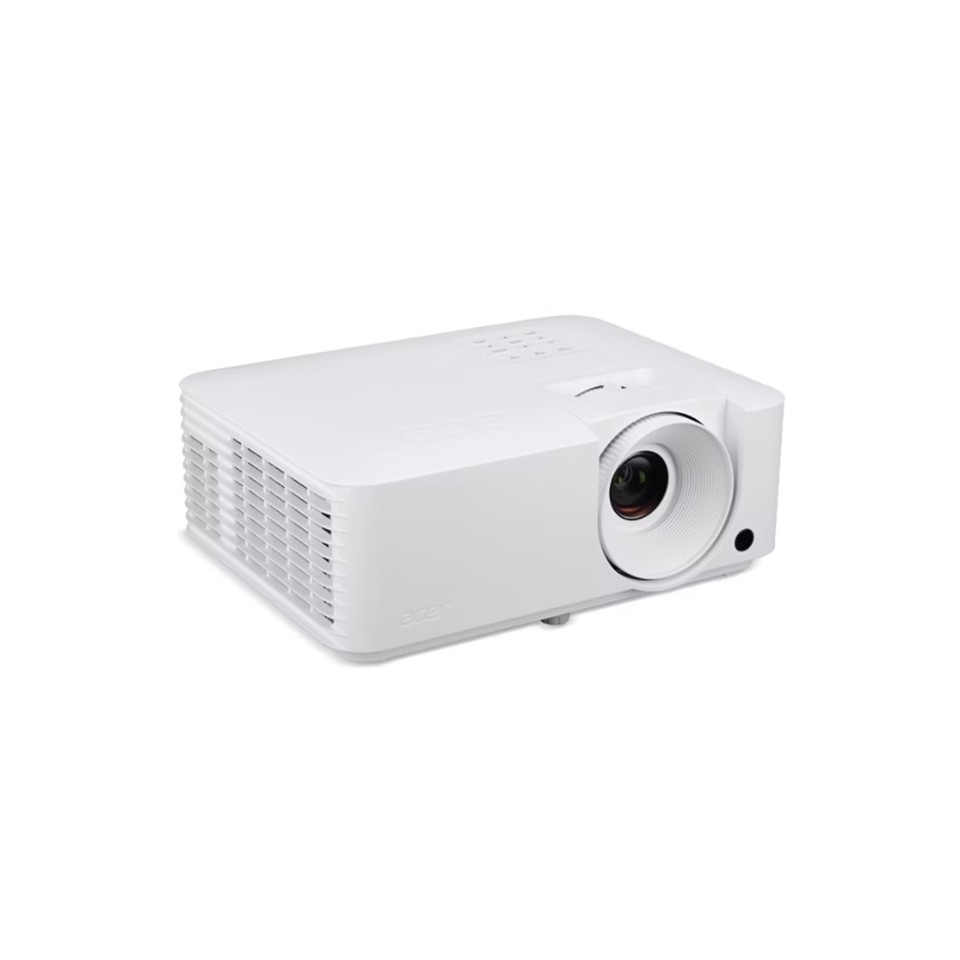

Vero PL2530i DLP Projector

AC Power Cord

AC to DC Power Adapter

Battery for remote control

HDMI Cable

Lens Cap

Quick Start Guide

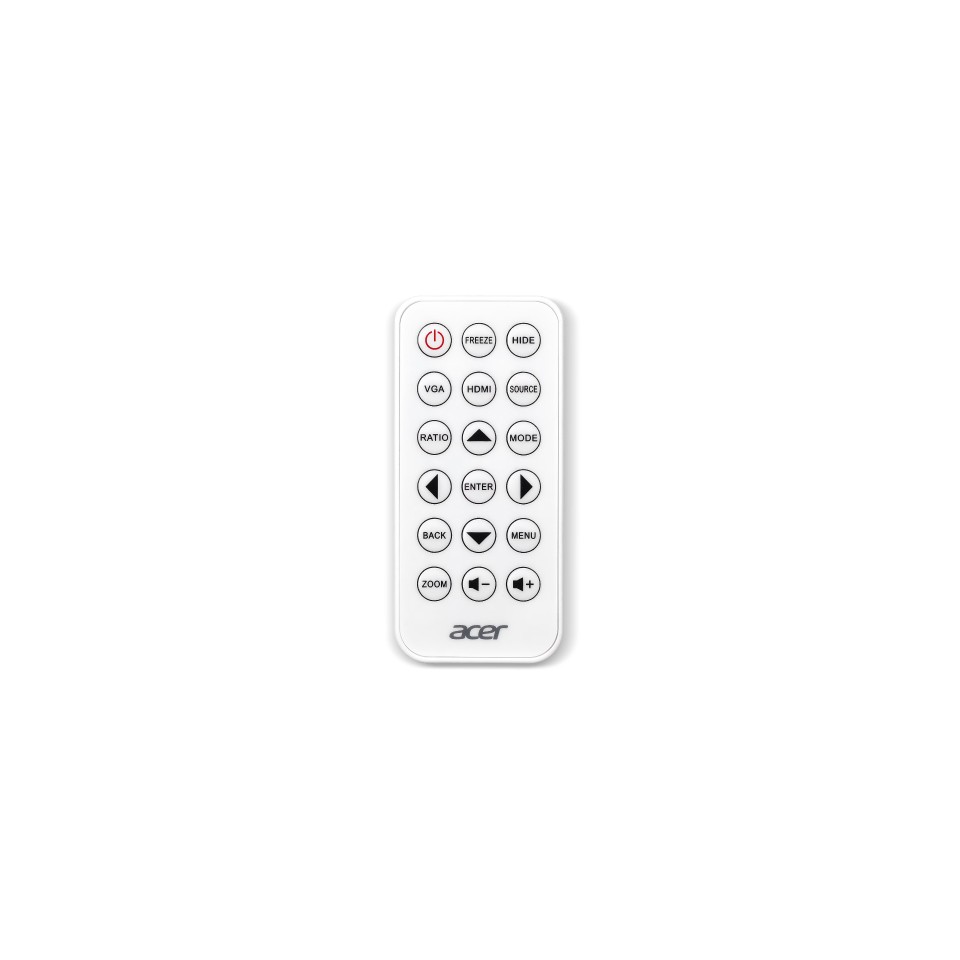

Remote Control

Carrying Case
