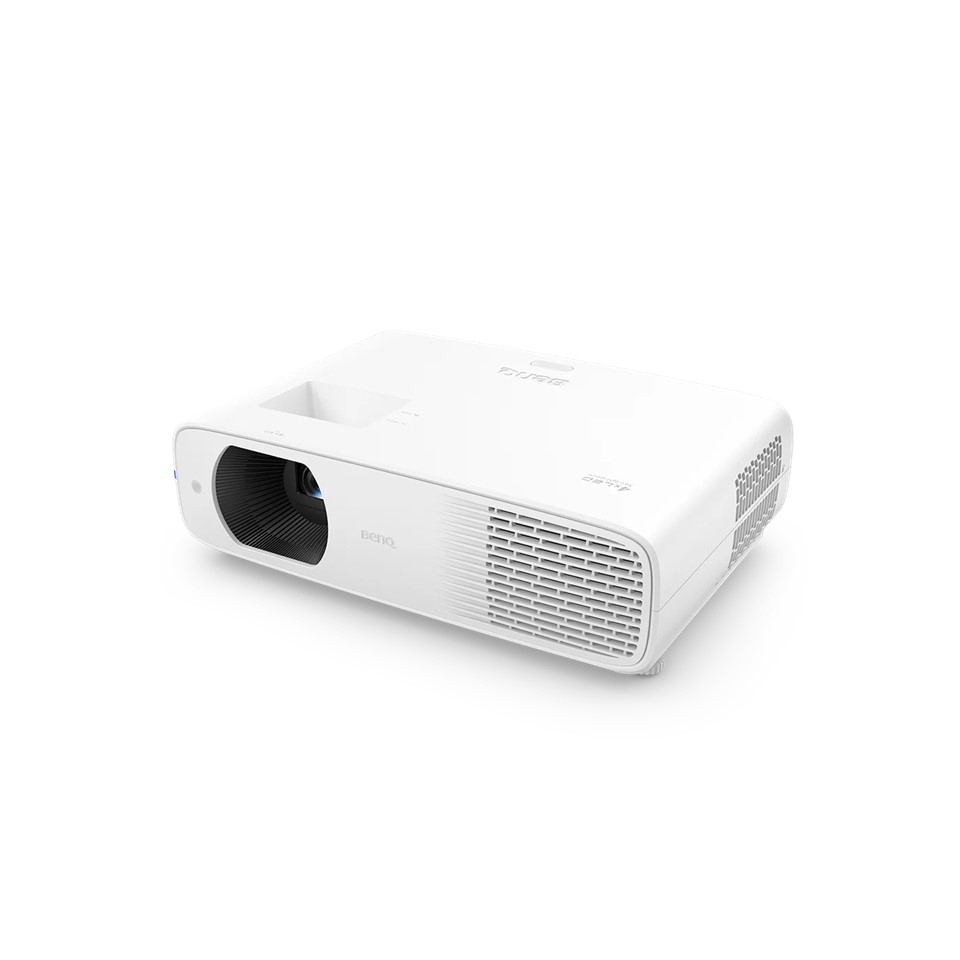

Let Your Innovation Shine through Accurate Color
- Up to 30,000 hours LED lifespan with no lamp replacement
- 98% Rec.709 color coverage for great color saturation and precision

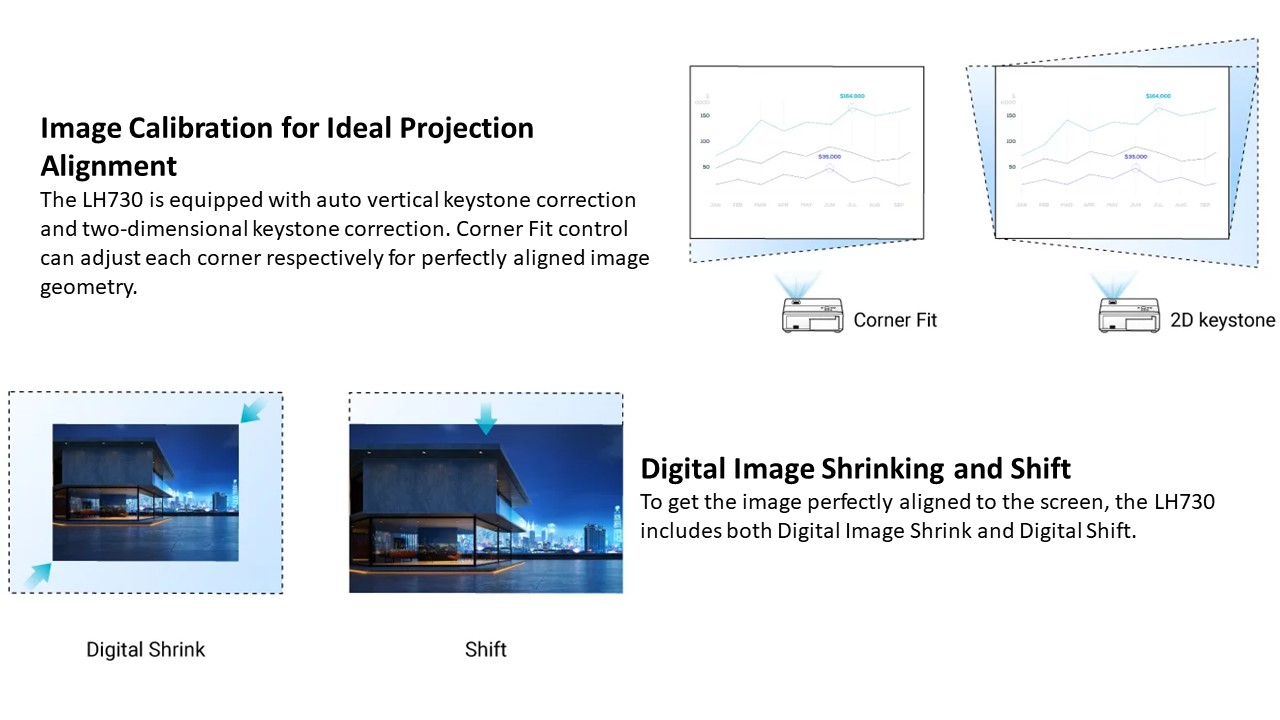

- Flexible Installation Features: 2D & Auto Vertical keystone, Corner Fit, and Digital Shrink
- Compatible with 4K HDR and HLG via dual HDMI 2.0










All Specifications
DisplayBrightness (ANSI lumens)4000
Native Resolution1080P (1920x1080)
Contrast Ratio (FOFO)500,000:1
Display Color30-bit (1.07 billion colors)

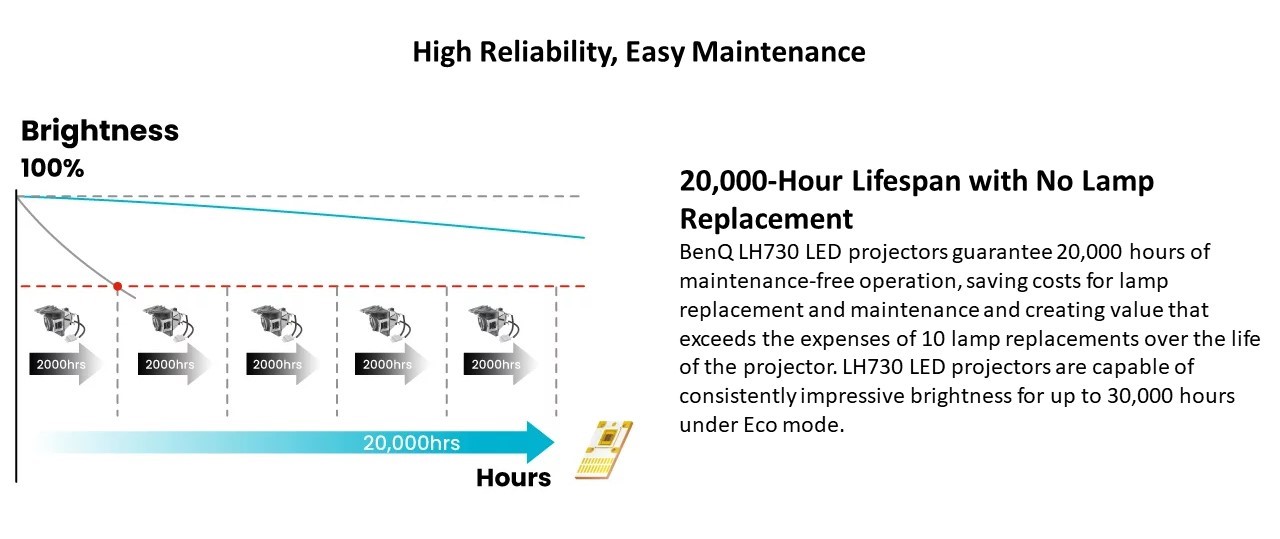

Light Source Lifea. Normal 20000 hrs, b. ECO 30000 hrs
OpticalLensF/# = 1.6~1.75,f = 19.16~23.02 mm
Projection Offset (Full-Height)91.7%
Keystone Adjustment2D, (Auto) Vertical ± 30 degrees; Horizontal ± 30 degrees
PicturePicture Modes3D, Bright, HDR10, HLG, Infographic, Presentation, Spreadsheet, User 1, User 2, Video Conference
CompatibilityInput Lag33.4 ms (1080P 60Hz)
Resolution SupportVGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency15K~135KHz
Vertical Scan Rate23~120Hz

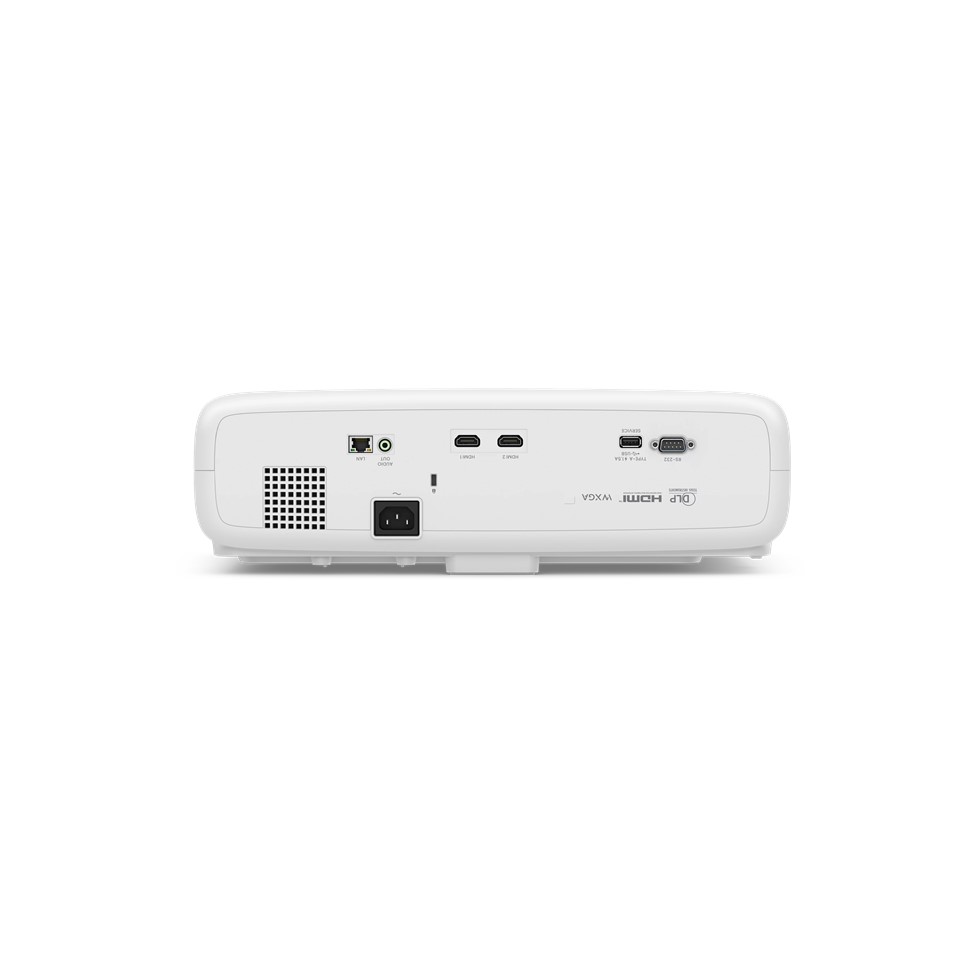

I/O InterfaceHDMI in(x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
USB Type A(x2), USB Type A-1 (2.0/Power Supply1.5A), USB Type A-2 (2.0/Power Supply1.0A/Wireless Dongle)
AudioAudio out (3.5mm Mini Jack)(x1)
EnvironmentOperating Temperature0~40℃
Power SupplyAC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)100VAC~120VAC : 365W@90VAC
Stand-by Power Consumption<0.5W
Network Stand-by Power Consumption<2W
Acoustic Noise (Typ./Eco.)(dB)33/28
AccessoriesWireless USB dongle(Optional), 5201BS
Remote Control w/ BatteryRCX016
Power Cord (by region)x1 (1.8M)
3D Glasses(Optional), DGD5
Quick Start Guide(x1) 22L
Warranty Card (by region)Yes
Universal Ceiling Mount(Optional), CM00G3
Dimension & WeightDimensions (WxHxD) (mm)420 x131.7 x286.7
Net Weight (kg)5.3 Kg +/- 100g
