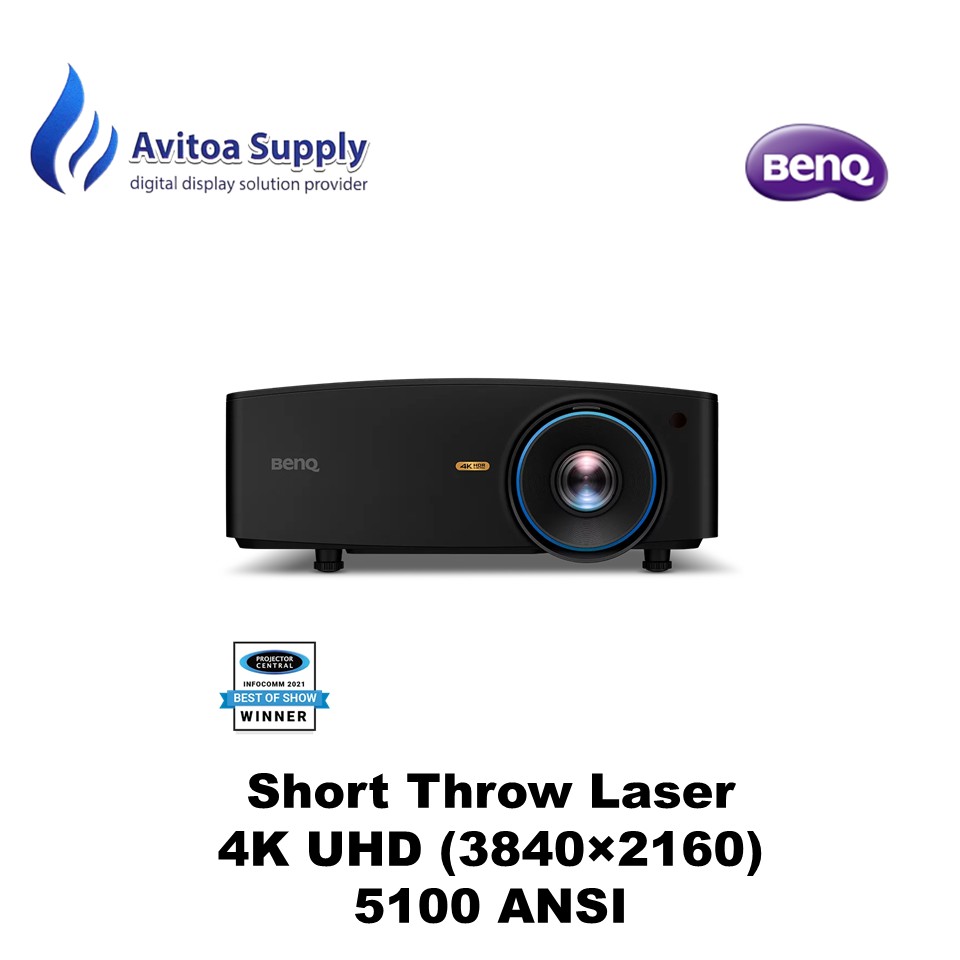

BenQ LK936ST - 4K HDR Short-Throw Laser Projector

+ Add to Wishlist

MYR26888.00

No Variant ✓

Add To Cart

Brand: BenQ

Get shipping estimates

Country

State

Shipping Method

Product Details
Enquiry

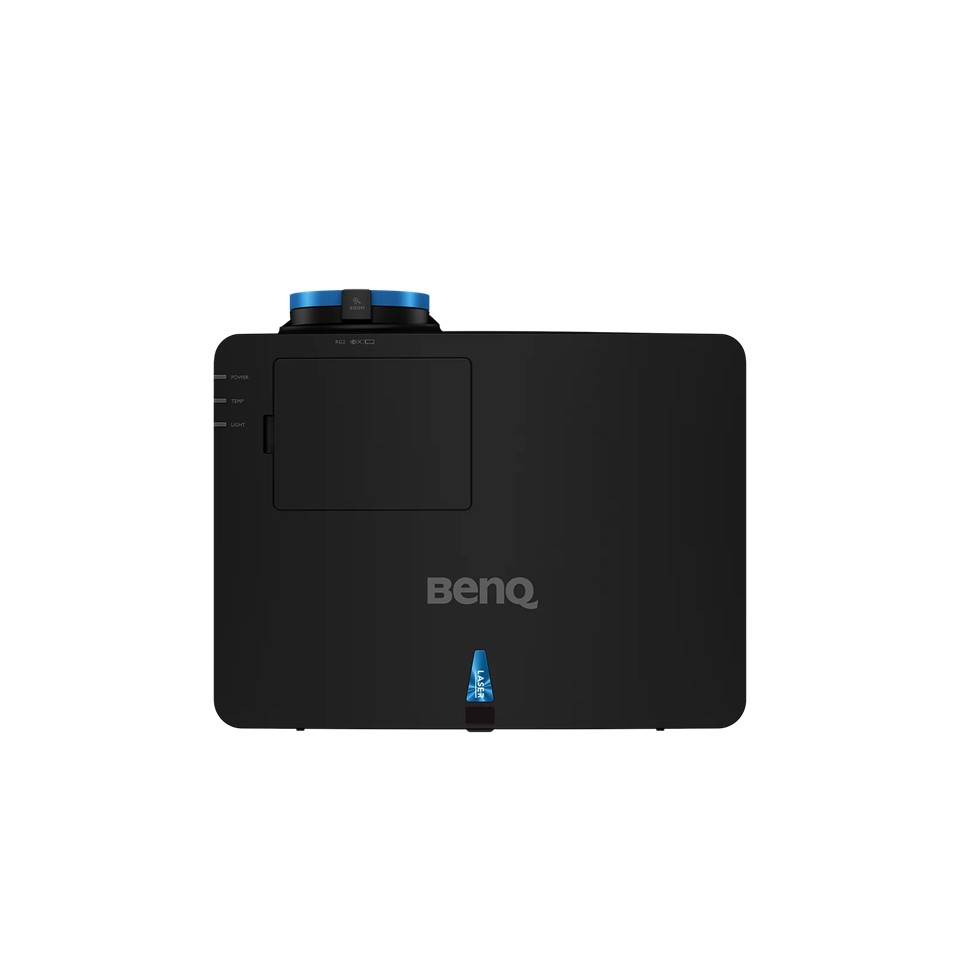

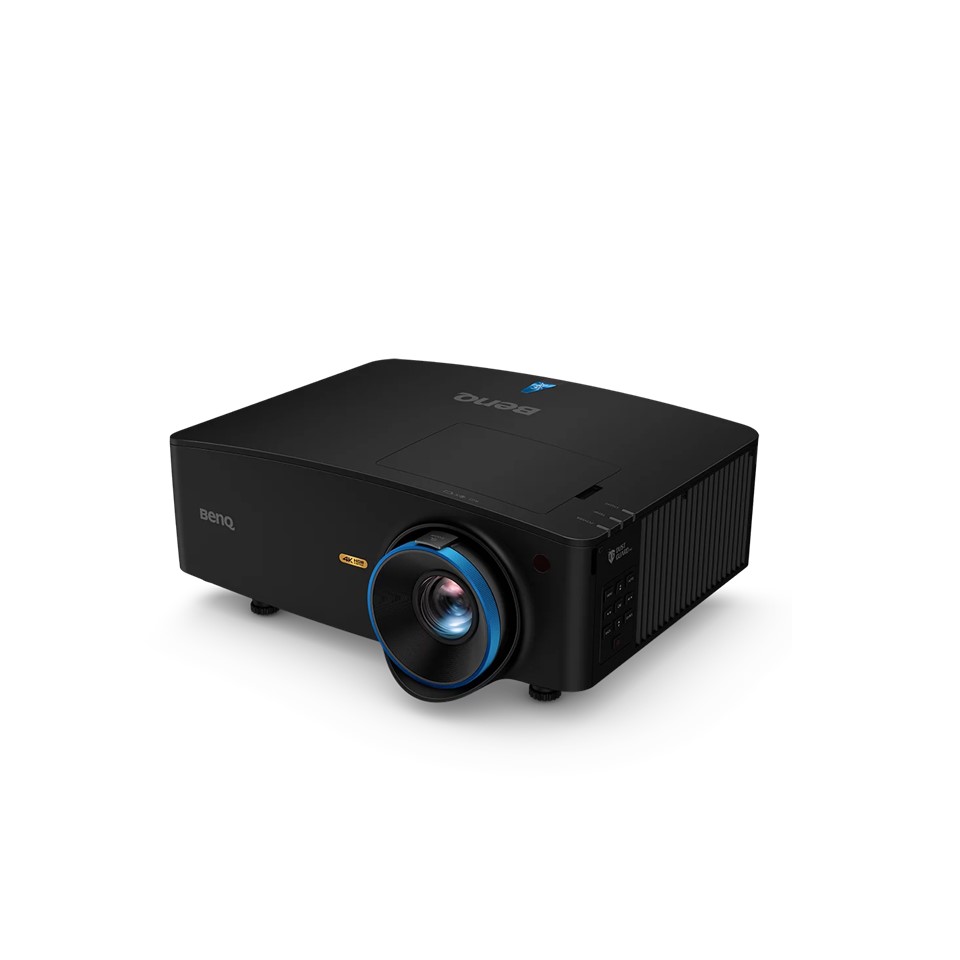

LK936ST - 4K HDR Short-Throw Laser Projector

Ultimate Dual Purpose Golf Simulation / Family Home Theater Projector

5100 Lumens of Color Accurate Brightness

4K Resolution for an Ultra Sharp Image

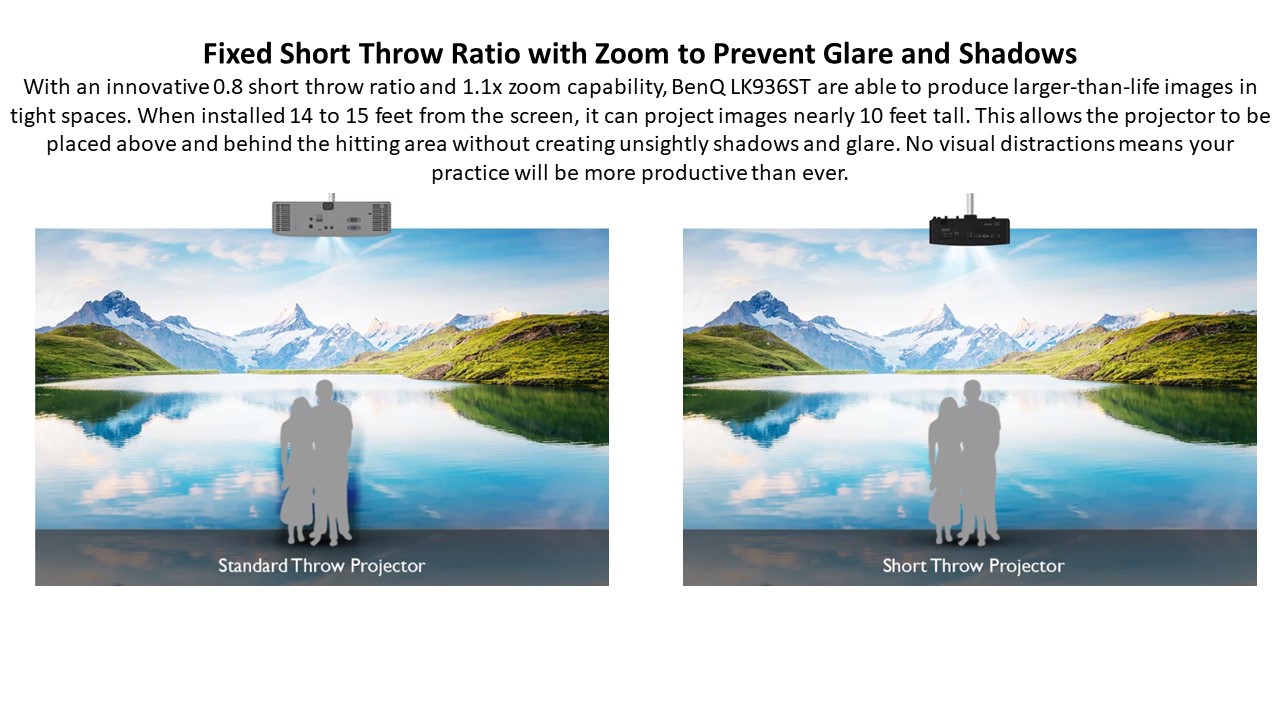

Short Throw for Large Images in Small Spaces

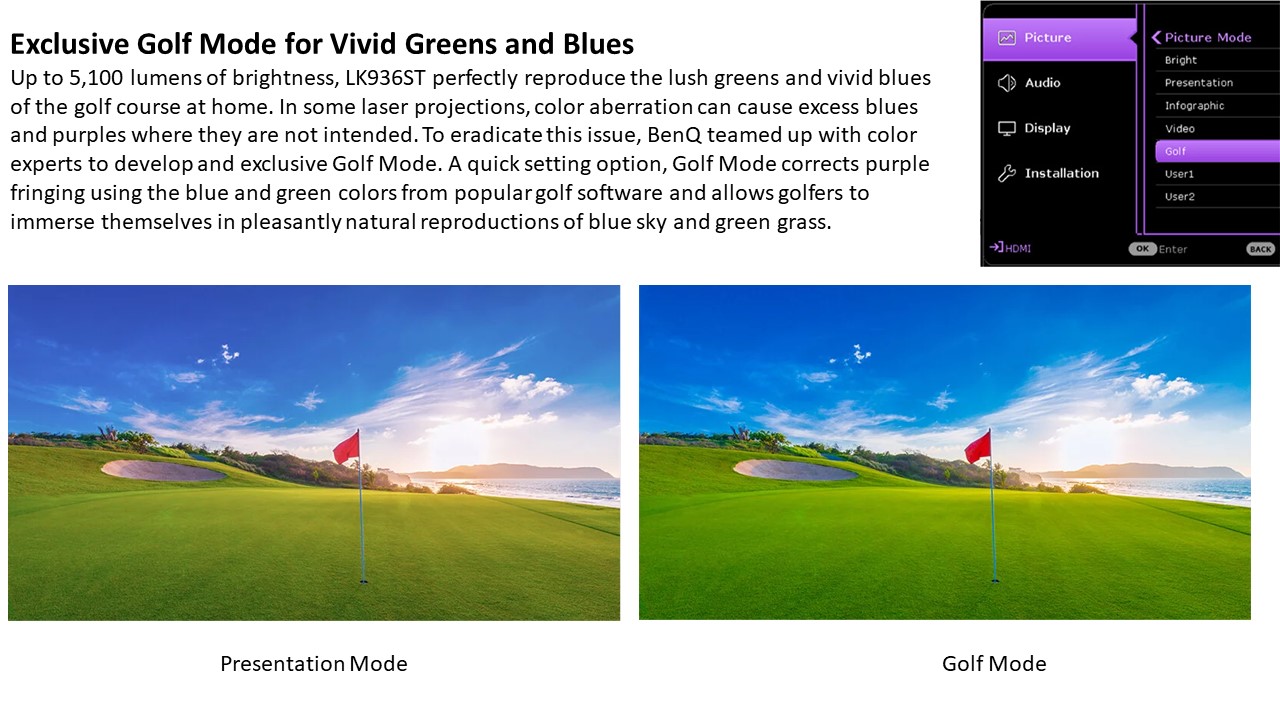

Custom Golf Simulator Mode Color Optimization

<img src='/assets/richtexteditorphp/richtexteditor/images/media.png' width='20' height='20/' alt="" />Video /editor_img/BenQ/LK936ST/lk936st-digital-shrink-and-shift.mp4

All Specifications

Display

Brightness (ANSI lumens)

5100

Native Resolution

4K UHD (3840×2160)

Native Aspect Ratio

16:9

Contrast Ratio (FOFO)

3,000,000:1

Display Color

30-bit (1.07 billion colors)

Light Source

Laser

Light Source Life

a. Normal 20000 hrs

Optical

Throw Ratio

0.81 ~0.89

Zoom Ratio

1.1x

Lens

F/# =1.83 ~ 1.86 f= 8.6 ~ 9.4

Projection Offset (Full-Height)

Keystone Adjustment

3D, Vertical ± 40 degrees; Horizontal ± 40 degrees; Rotation ± 40 degrees

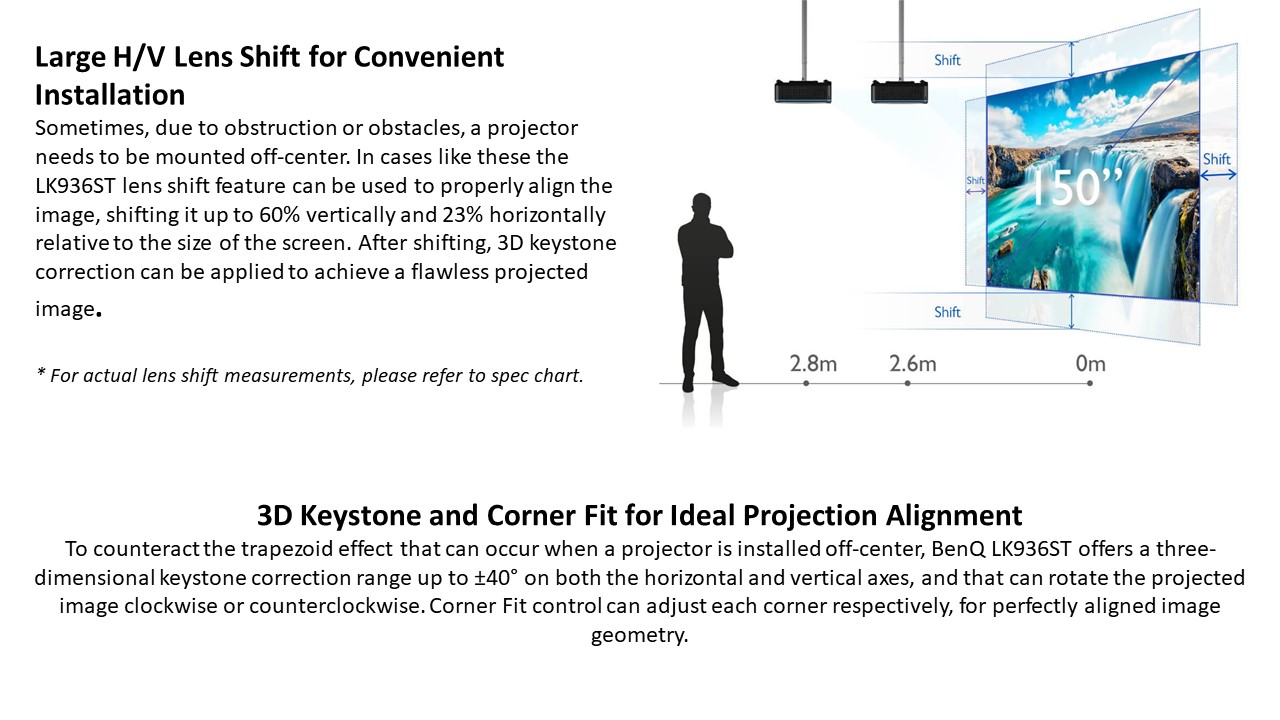

Lens Shift Vertical

-60%~ +60%

Lens Shift Horizontal

-23%~ +23%


Rec. 709 Coverage

92%

Picture Modes

3D, Bright, DICOM SIM, Golf, Infographic, Presentation, sRGB, User 1, User 2, Video

Compatibility

Input Lag

33.4 ms (1080P 60Hz)

Resolution Support

VGA (640 x 480) to 4K UHD (3840 x 2160)

Horizontal Frequency

15K~135KHz

Vertical Scan Rate

23~240Hz

I/O Interface

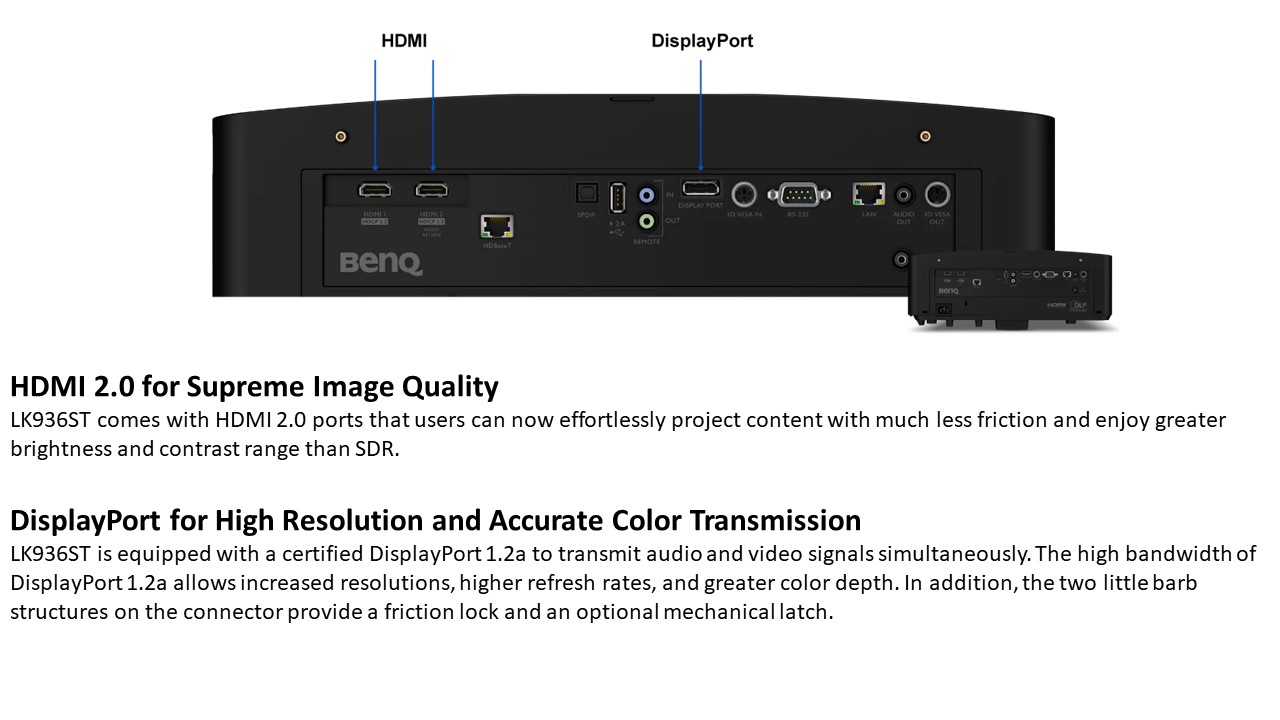

HDMI in

(x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)

Display Port

(x1)

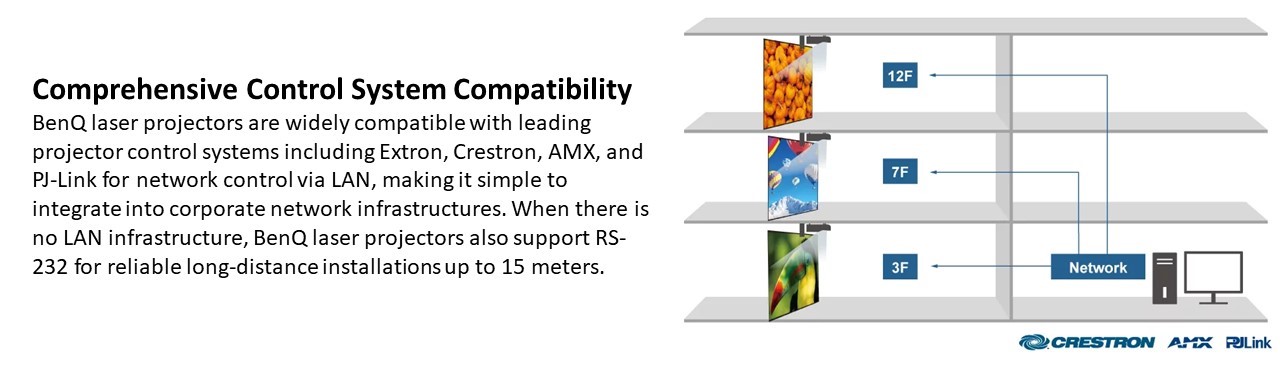

LAN (RJ45)

(x1)

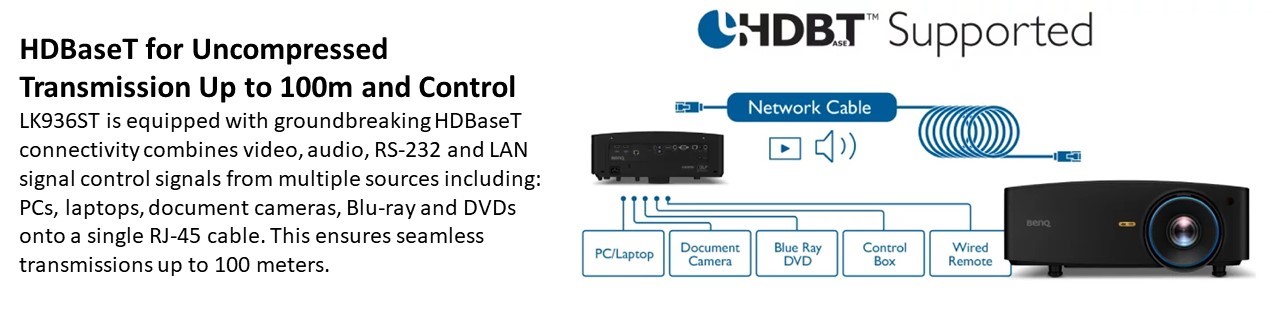

HDBaseT (RJ45)

(x1), Video/Audio

3D Sync in

(x1), VESA

3D Sync out

(x1), VESA

USB Type A

(x1), USB Type A-1 (2.0/Power Supply2.0A)

RS232 in (DB-9pin)

(x1)

Wired Remote in (3.5mm Mini Jack)

(x1)

Wired Remote out (3.5mm Mini Jack)

(x1)

DC 12V Trigger (3.5mm Jack)

(x1)

Audio

Speaker

(x1), 10W

Audio out (3.5mm Mini Jack)

(x1)

HDMI Audio Return

ARC, 5.1 channel

S/PDIF

Multi-Channel, RAW

Environment

Operating Temperature

0~40℃

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

440W

Stand-by Power Consumption

<0.5W

Network Stand-by Power Consumption

<2W

Acoustic Noise (Typ./Eco.)(dB)

40/33

Accessories

Remote Control w/ Battery

RCA011

Power Cord (by region)

x1 (1.8M)

HDMI cable

1.8m

3D Glasses

(Optional), DGD5

Installation Guide

1 (8L)

Warranty Card (by region)

Yes

Universal Ceiling Mount

(Optional), CM00G3

Dimension & Weight

Dimensions (WxHxD) (mm)

416x166x351

Net Weight (kg)

Projection System

DLPAll Specifications

Display

Brightness (ANSI lumens)

5100

Native Resolution

4K UHD (3840×2160)

Native Aspect Ratio

16:9

Contrast Ratio (FOFO)

3,000,000:1

Display Color

30-bit (1.07 billion colors)

Light Source

Laser

Light Source Life

a. Normal 20000 hrs

Optical

Throw Ratio

0.81 ~0.89

Zoom Ratio

1.1x

Lens

F/# =1.83 ~ 1.86 f= 8.6 ~ 9.4

Projection Offset (Full-Height)

Keystone Adjustment

3D, Vertical ± 40 degrees; Horizontal ± 40 degrees; Rotation ± 40 degrees

Lens Shift Vertical

-60%~ +60%

Lens Shift Horizontal

-23%~ +23%


Rec. 709 Coverage

92%

Picture Modes

3D, Bright, DICOM SIM, Golf, Infographic, Presentation, sRGB, User 1, User 2, Video

Compatibility

Input Lag

33.4 ms (1080P 60Hz)

Resolution Support

VGA (640 x 480) to 4K UHD (3840 x 2160)

Horizontal Frequency

15K~135KHz

Vertical Scan Rate

23~240Hz

I/O Interface

HDMI in

(x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)

Display Port

(x1)

LAN (RJ45)

(x1)

HDBaseT (RJ45)

(x1), Video/Audio

3D Sync in

(x1), VESA

3D Sync out

(x1), VESA

USB Type A

(x1), USB Type A-1 (2.0/Power Supply2.0A)

RS232 in (DB-9pin)

(x1)

Wired Remote in (3.5mm Mini Jack)

(x1)

Wired Remote out (3.5mm Mini Jack)

(x1)

DC 12V Trigger (3.5mm Jack)

(x1)

Audio

Speaker

(x1), 10W

Audio out (3.5mm Mini Jack)

(x1)

HDMI Audio Return

ARC, 5.1 channel

S/PDIF

Multi-Channel, RAW

Environment

Operating Temperature

0~40℃

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

440W

Stand-by Power Consumption

<0.5W

Network Stand-by Power Consumption

<2W

Acoustic Noise (Typ./Eco.)(dB)

40/33

Accessories

Remote Control w/ Battery

RCA011

Power Cord (by region)

x1 (1.8M)

HDMI cable
