BenQ TZY31 InstaShare Button Solution

+ Add to Wishlist

MYR4124.00

No Variant ✓

Add To Cart

Brand: BenQ

Get shipping estimates

Country

State

Shipping Method

Product Details
Enquiry

TZY31 InstaShare Button Solution

One-click wireless screen sharing for BenQ Displays

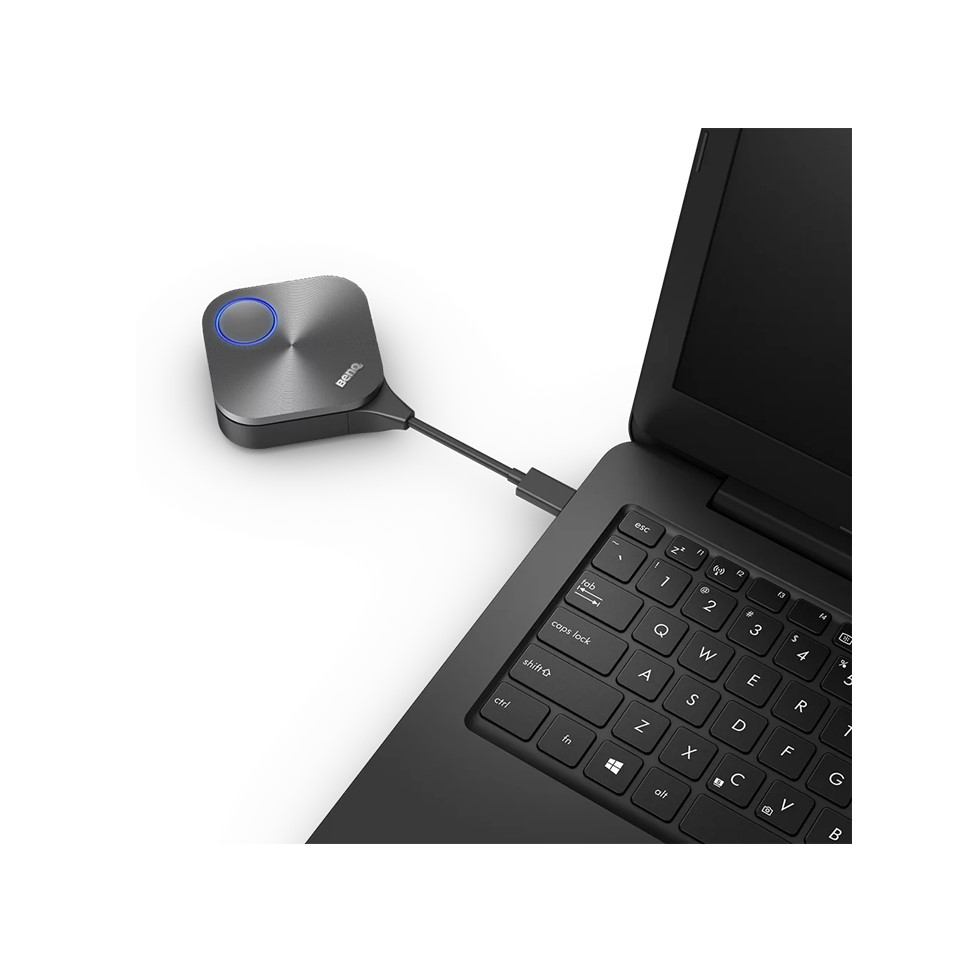

Plug and click to instantly share your screen

Side-by-side view of multiple screens
Share entire screen, media files, or video feed
Broadcast large display to connected devices
No charging or batteries required

<img src='/assets/richtexteditorphp/richtexteditor/images/media.png' width='20' height='20/' alt="" />Video /editor_img/BenQ/TZY31/InstaShare Button Solution TZY31: One-click wireless sharing | BenQ Accessory.mp4

<img src='/assets/richtexteditorphp/richtexteditor/images/media.png' width='20' height='20/' alt="" />Video /editor_img/BenQ/TZY31/wirelessly-edu-v2.mp4

<img src='/assets/richtexteditorphp/richtexteditor/images/media.png' width='20' height='20/' alt="" />Video /editor_img/BenQ/TZY31/tzy05-e1.mp4

All Specifications

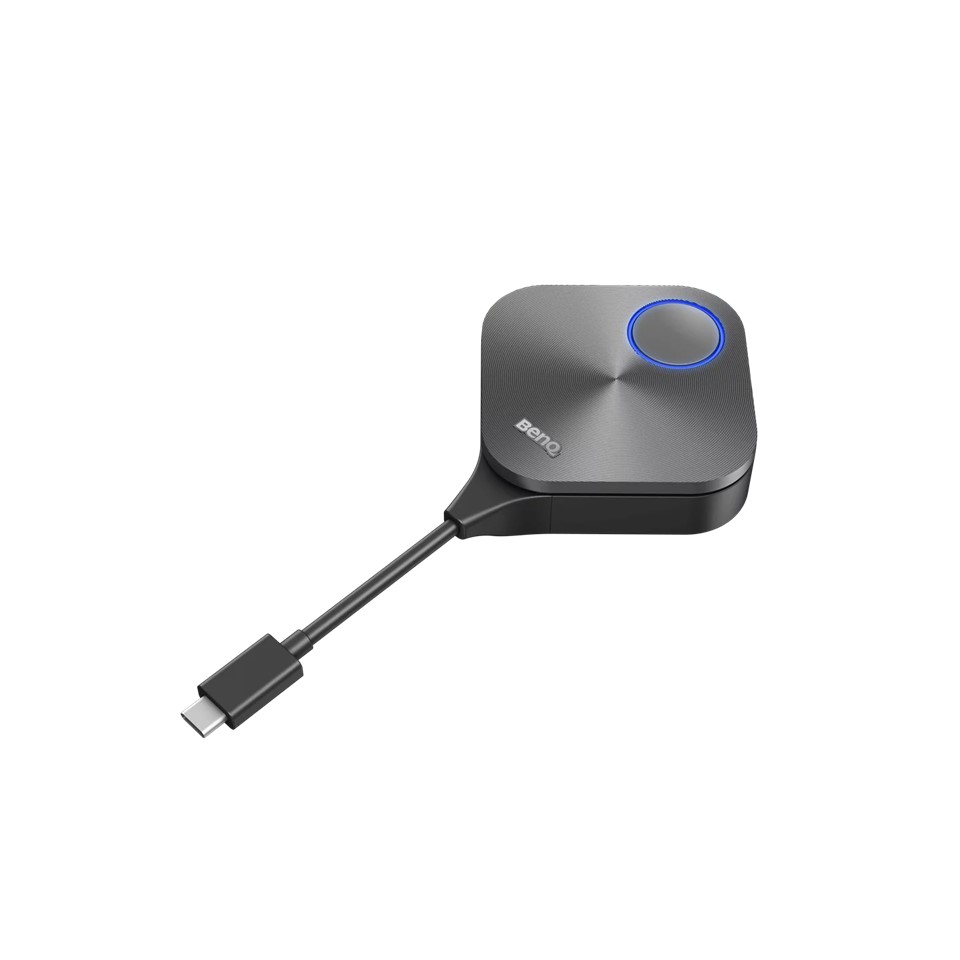

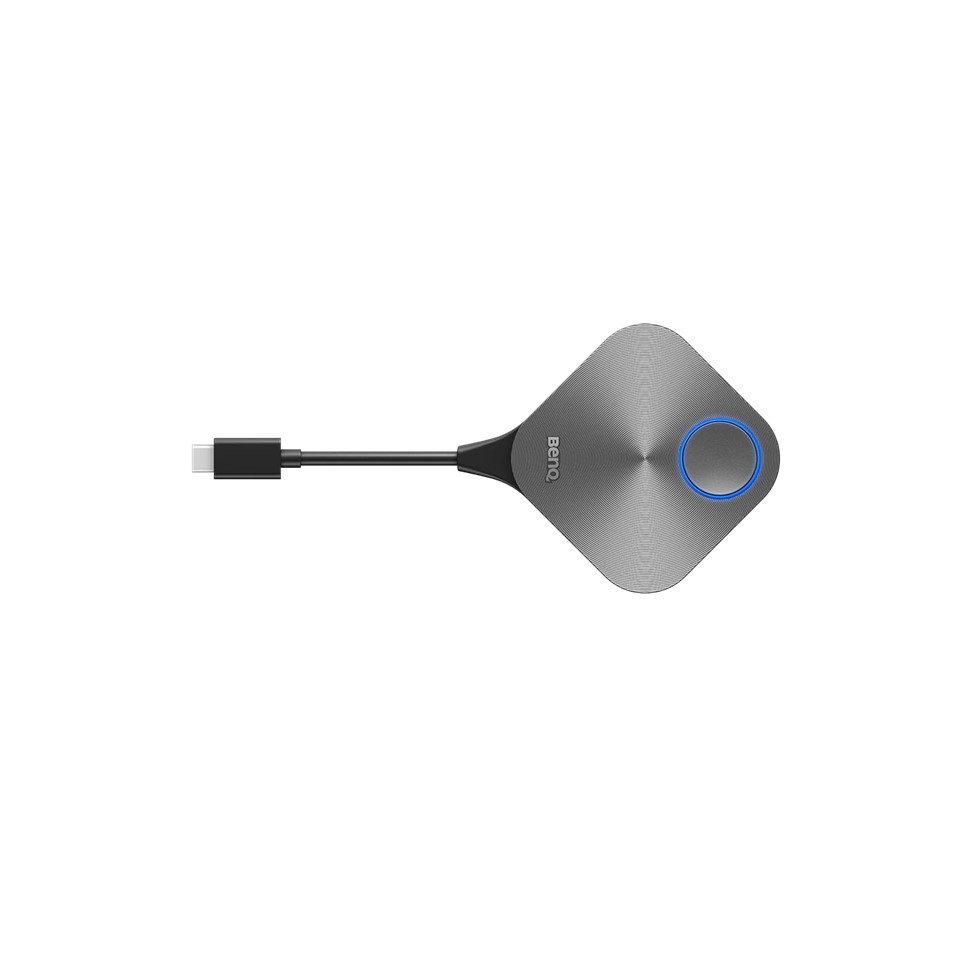

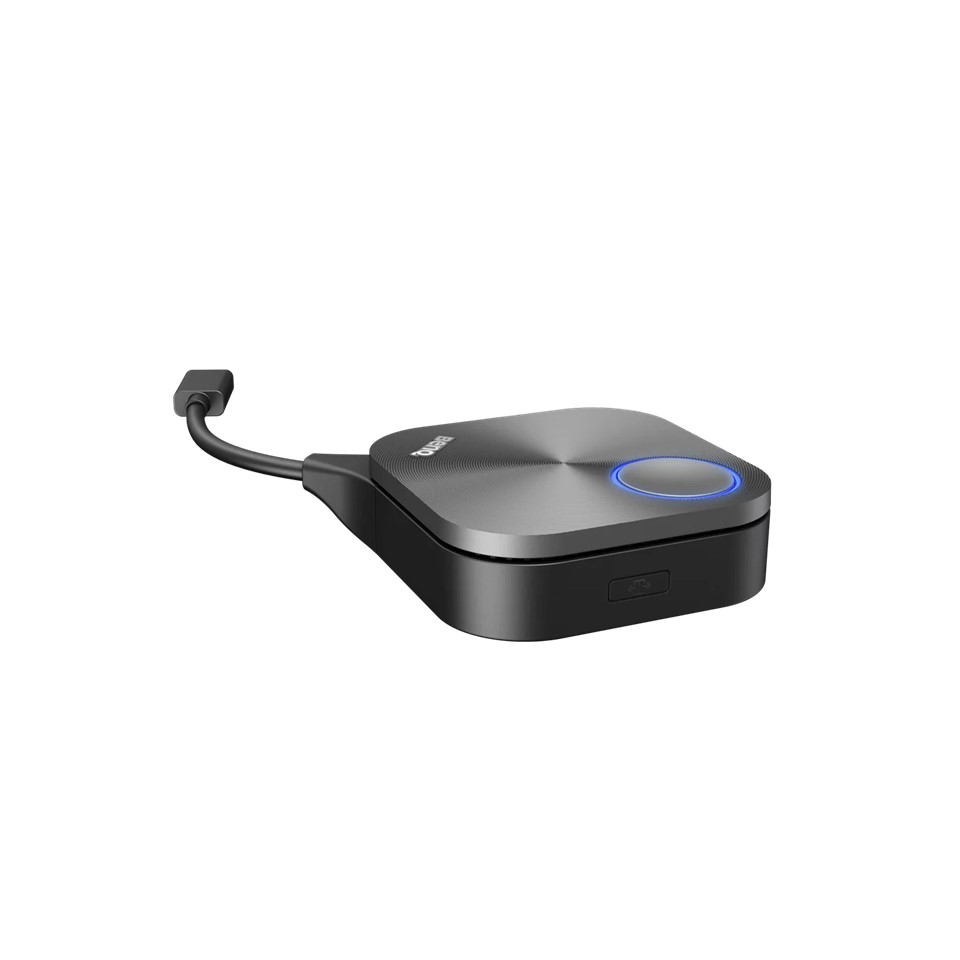

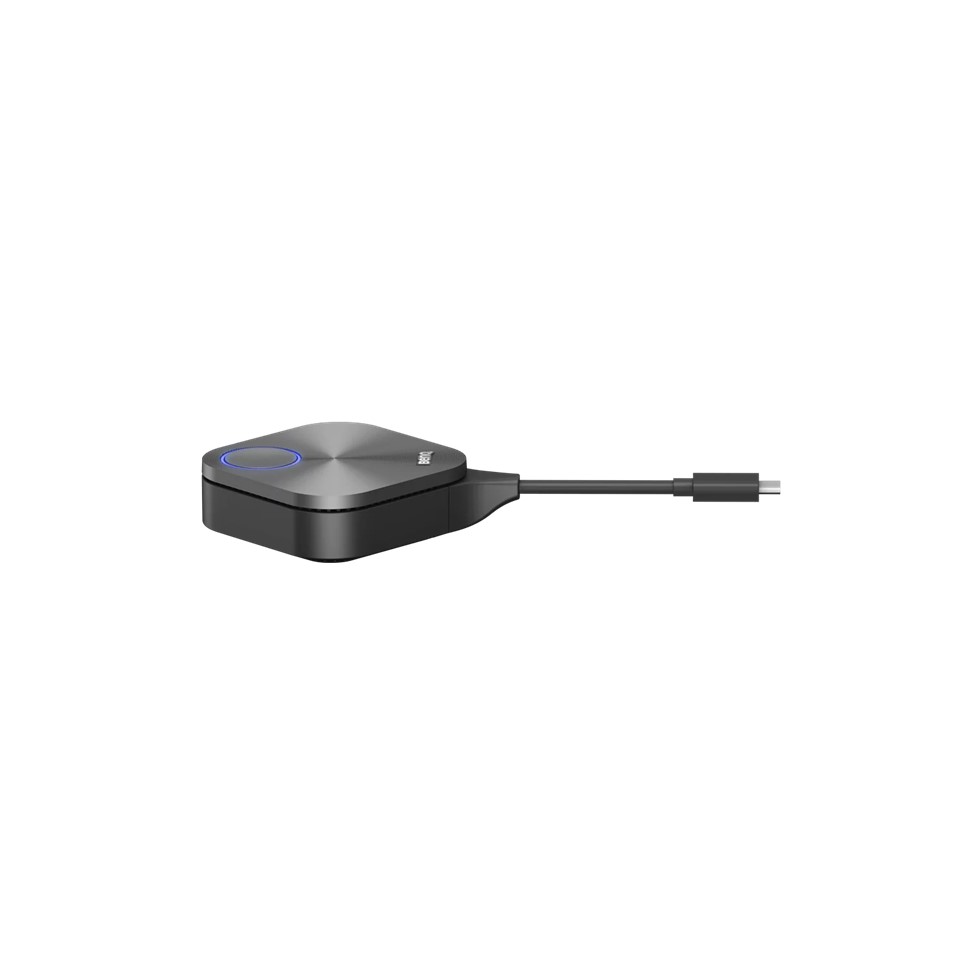

InstaShare Button

Color

Silver

Wireless Transmission Frame Rate

Up to 60 fps depending on environment (1080P60/4K30P)

TX Button Input resolution

Up to 4K30P

Audio Rate

Stereo, Radio quality 16bits 48KHz

Wi-Fi Standard

IEEE 802.11ac 5GHz, 2T2R MIMO

Authentication protocol

Wi-Fi Standard

Wireless Security (Encryption)

WPA2/3 Personal/WPA2 Enterprise Support AES-256

Wireless Coverage Reach

Max. 15 m (Between Button and IFP)

Cable

USB Type C

Power Supply

DC 5V±10%, Minimum 0.9A

Power Consumption

Max 4.5W Full Loading

Dimension (WxHxD)

67mm x 67mm x23.2mm

Temperature range

Operating: 0°C to +40°C (+32°F to +104°F)
Storage: -10°C to +60°C (+14°F to +140°F)

Humidity range

Operating: 10% to 80% relative humidity
Storage: 5% to 90% relative humidity (non-condensing)

Compatibility

1. RM03 series (with USB Type-C)
2. RP02, RE01, RM02K, RM02S, CP01K, CS01, SL02K series, and VC01A (with USB Type-C to USB Type-A adapter)

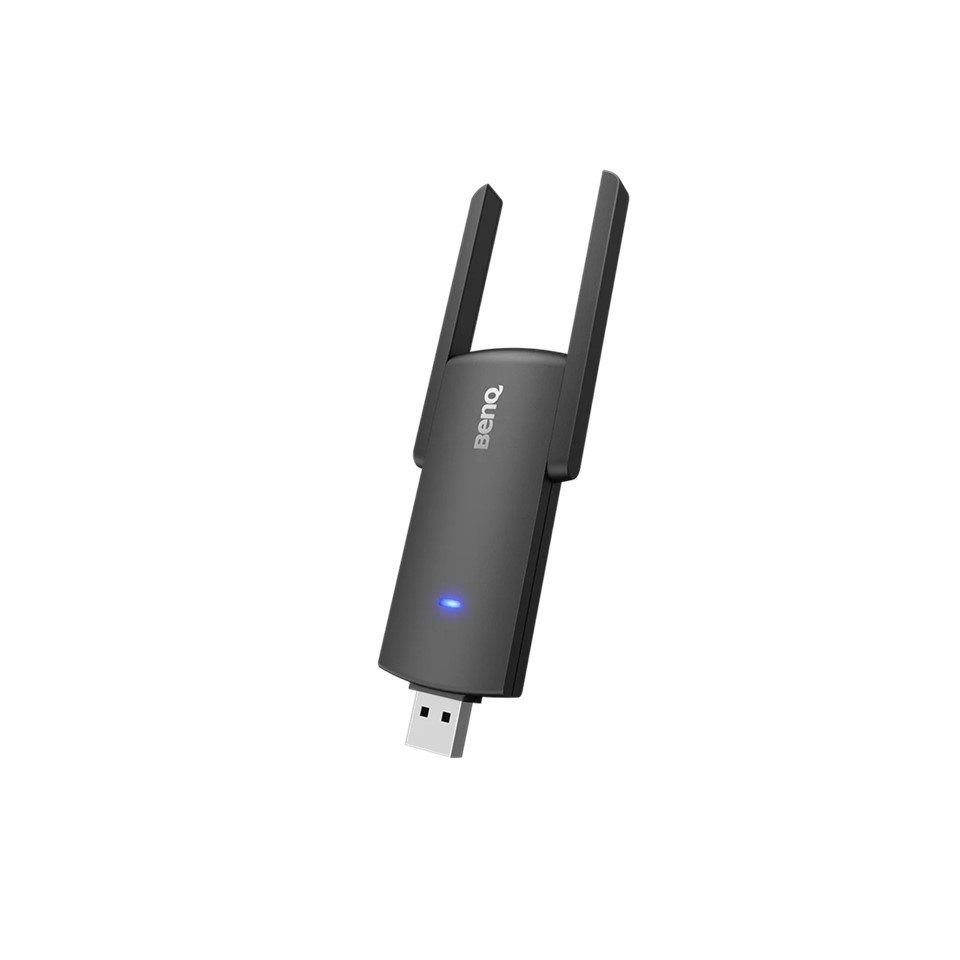

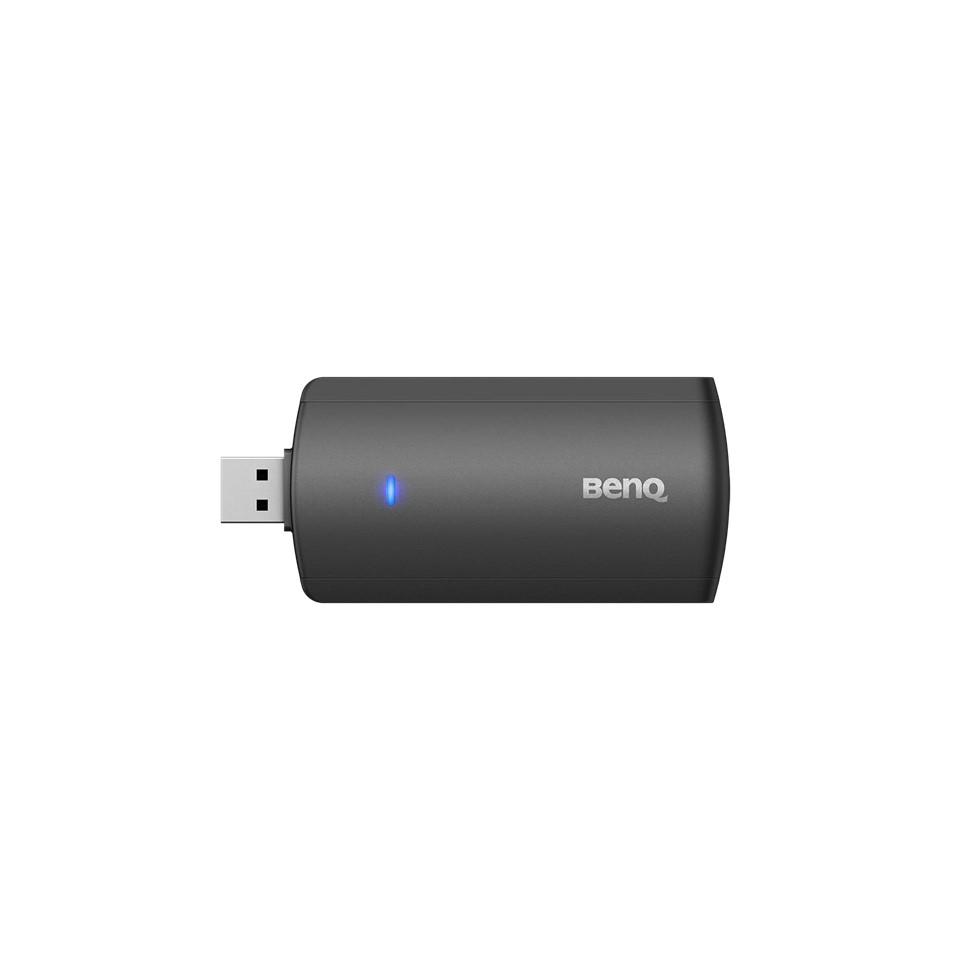

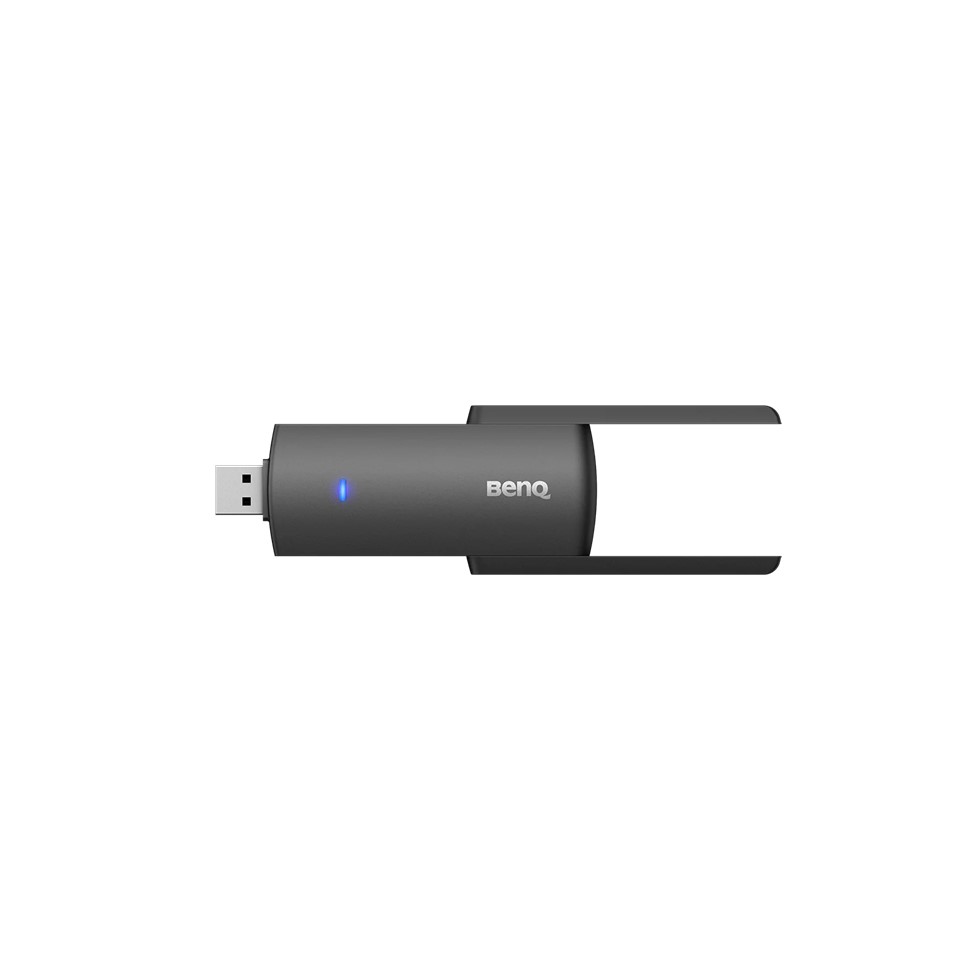

BenQ Wireless USB Dongle

Color

Black

Wi-Fi Standard

802.11 a/b/g/n/ac

Interface

USB 3.0

Wi-Fi band

Dual Band 2.4GHz / 5GHz

MU-MIMO

Yes

Wi-Fi Performance

2.4 GHz Band: up to 400 Mbps 
5 GHz Band: up to 867 Mbps

External Antenna

Supported OS

Android

Wireless Coverage Reach

Max. 15 m (Between Dongle and IFP)

Security

WPA-PSK/WPA2-PSK WPA/WPA2/WEP

Power Supply

DC 5V, 0.9A (Maximum)

Dimension L*H*W

137 x 41 x 12 mm

Net Weight

0.055kg

Temperature range

Operation : 0℃~40℃
Storage : -40℃~70℃

Humidity range

Operation: 10%~90%
Storage: 5%~90%

Compatibility

RM6503, RM7503, RM8603
RP6502, RP7502, RP8602
RE6501, RE7501, RE8601, RE9801
RM6502K, RM7502K, RM8602K
RM6502S, RM7502S, RM8602S
CP6501K, CP8601K
CS6501, CS7501, CS8601
SL5502K, SL6502K, SL7502K, SL8502K
ST4302, ST5502, ST6502, ST7502, ST8602
IL4301, IL5501
BH2401, BH2401T, BH2801, BH2801N, BH3501, BH3501T, BH3801, BH3801D, BH3801N
VC01A

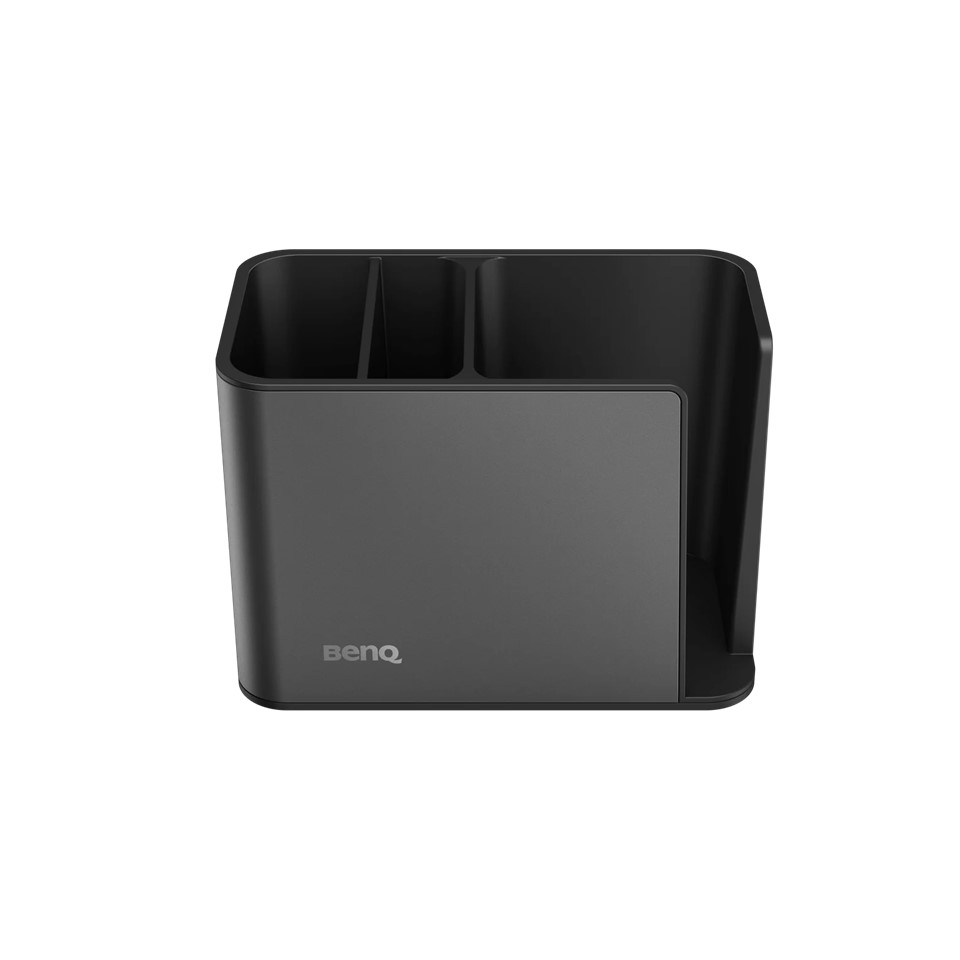

BenQ InstaShare Dock

Color

Black

Weight (Net)

420g

Dimension L*H*W

150 x 85 x 106 mm

InstaShare Button Loading quantity

4 pcs

Product material

PC+ABS & Aluminum alloy 6063 & Silica gel
