LCD Panel

Screen Size: 43 inch

Backlight: ELED

LCD Technology: IPS/VA

Aspect Ratio: 9:16

Brightness: 320 cd/m² (typ.)

Display Colors: 10 bit (8 bit + FRC), 1.07B colors

Resolution: 2160 (H) × 3840 (V)

Viewing Angle: 178° (H) / 178° (V)

Response Time: 8 ms

Surface Treatment: Haze 25%

Built-in System

Operating System: Android 11.0

CPU: 4 cores A55, 1.92 GHz

RAM: 4 GB

ROM: 32 GB

Video Decoding:

H.265 HEVC MP-10@L5.1 up to 2160p@60 fps;

H.264 AVC HP@L5.1 up to 2160p@30 fps;

VP9 Profile 2 up to 2160p@60 fps;

H.264 MVC up to 1080p@30 fps;

MPEG-4 ASP@L5 up to 1080p@30 fps;

WMV/VC-1 SP/MP/AP up to 1080p@30 fps;

Function

Audio Compression: MPEG-3, WMA, WAV

Video Compression: MPEG-4, H.264 AVC/MVC, H.265 HEVC

Video Format: mp4, avi, mov, mkv, wmv

Device Ports

Network Port: 1 × RJ–45 10/100/1,000 Mbps self-adaptive Ethernet port

Wi-Fi: Optional (External Wi-Fi module)

Data Transmission Ports:

1 × USB 2.0 (type A); 1 × USB 3.0 (type A)

1 × TF card slot, up to 128 GB

Video Input: 1 × HDMI 2.1 (3840 × 2160@60 Hz)

Audio Port: 1 × 3.5 mm jack output

IR Receiver: Yes

Speaker

Built in Speaker: 2 × 5 W

Touchscreen

Touch Technology: Capacitive

Response Time: ≤8 ms

Touch Points: 10 points

General

Power Supply: 100–240 VAC, 50/60 Hz

Power Consumption: 75 W (typ.), 80 W (max)

Standby Power Consumption: ≤0.5 W

Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)

Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity: 10%–85% (RH), non-condensing

Storage Humidity: 10%–90% (RH), non-condensing

Product Material: Metal casing

Casing Color (Frame/Rear): Black

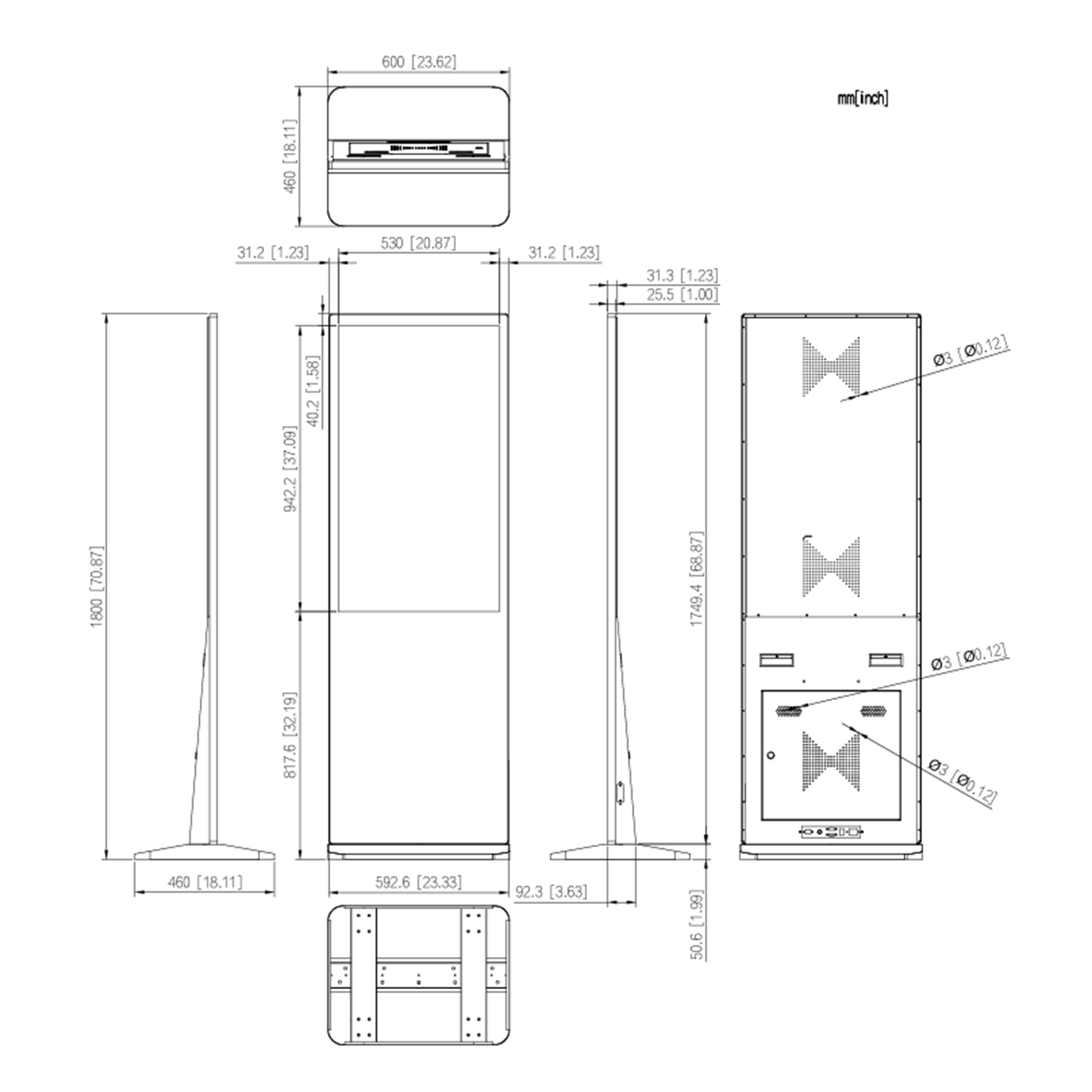

Product Dimensions:

1749.4 mm × 592.6 mm × 92.3 mm (68.87" × 23.33" × 3.63") (without bracket)

1,800.0 mm × 600.0 mm × 460.0 mm (70.87" × 23.62" × 18.11") (with bracket)

Frame Size: 40.2 mm/31.2 mm /31.2 mm (1.58"/1.23"/1.23") (T/L/R)

Packaging Dimensions: 1,920 mm × 200 mm × 762 mm (75.6" × 7.9" × 30.0") (L × W × H)

Net Weight: 41 kg (90.39 lb)

Gross Weight: 51 kg (112.44 lb)

Installation: Vertical mount

Display Mode: Portrait

Accessory: Bracket, user's manual, power cord, legal and regulatory information, energy label, remote control

Certification

Certifications: CE EMC, CE LVD, CE ERP
