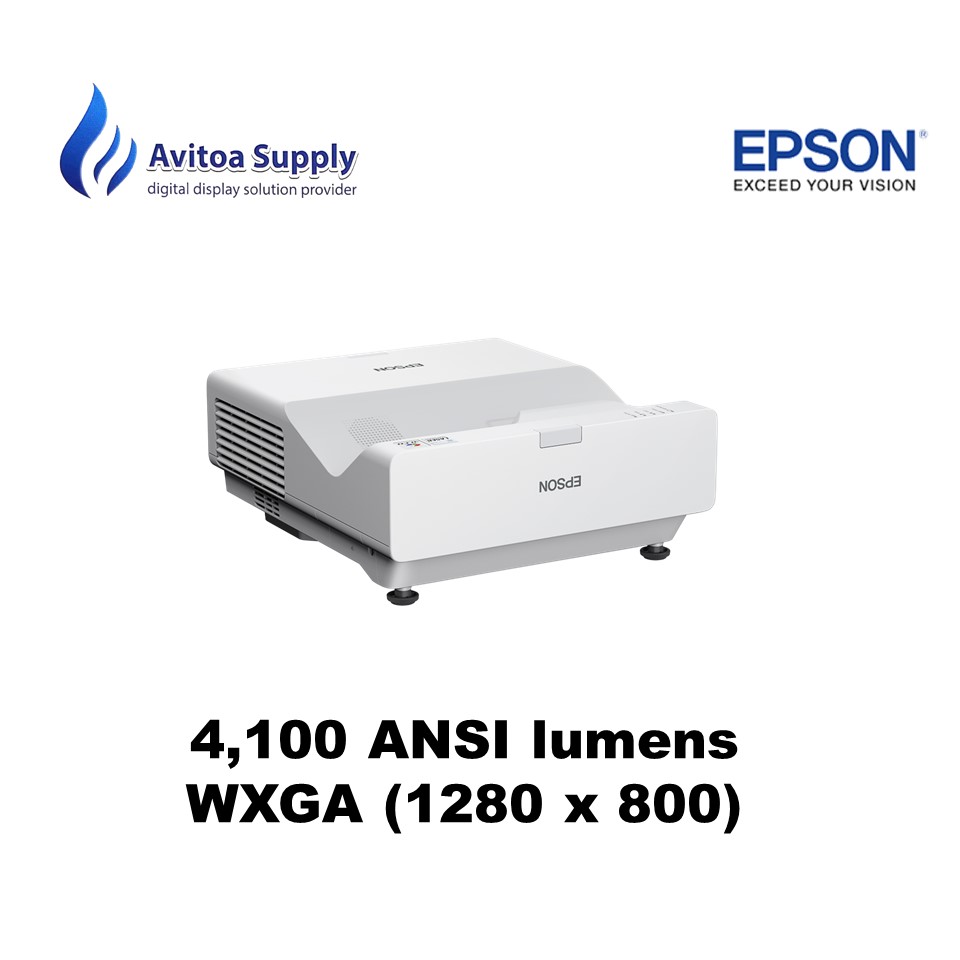

Bright, easy-to-read, lamp-free classroom display projects up to 381cm (150")

The EB-760W will change the way you think about classroom displays. Delivering 4,100 lumens of color and white brightness and a high-quality 16:10 WXGA display up to 381cm (150")—more than three times larger than a 190cm (75") flat panel—this ultra short throw laser display encourages engagement with large, bright and easy-to-read images from nearly anywhere in the classroom. Engineered for reliability, the EB-760W has a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to purchase or replace—ever. It also features wireless connectivity from PCs, Mac® computers, Chromebooks, and Android™ and iOS® devices, as well as convenient split screen functionality, making it easy for teachers and students to wirelessly display up to four screens simultaneously. With the ability to display on virtually any wall, the feature-rich EB-760W allows teachers to maintain valuable whiteboard space while delivering stunning images that engage and inspire young learners.

=        4,100 lumens of colour and white brightness

=        16:10 WXGA resolution for images up to 150"

=        20,000-hour laser lamp-free light source

=        Images more than three times larger than a 75" flat panel

=        Quick startup with laser light source

=        Supports 4:3 and widescreen 16:9 aspect ratios

Specifications:

Projection Technology:

Projection Technology:

RGB liquid crystal shutter projection system (3LCD)

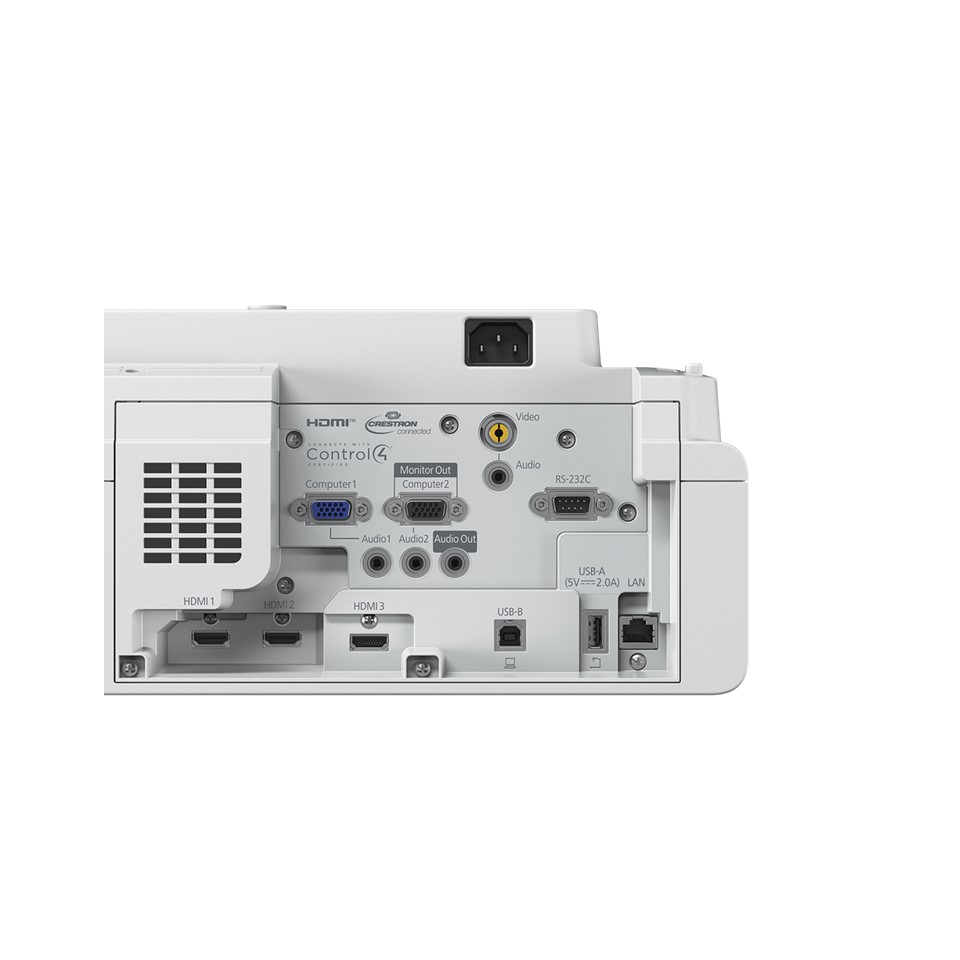

Connectivity:

Network:

Screen Mirroring (Built-in)

Wireless: Optional (Using ELPAP11)

Wired LAN: RJ45 x 1 (100Mbps)

Analog Input:

Composite: 1

Computer In: 2

Digital Input:

HDMI In: 3 (HDCP 2.3)

Analog Output:

Computer Out: 1 (Share with Computer)

Output Terminal:

D-Sub 15Pin: 1 (Black) In common with Computer

Audio Input:

Audio In: 3 (Stereo Mini)

Audio Output:

Audio Out: 1 (Stereo Mini)

Mic I/O:

Mic In: 1 (Stereo Mini)

Control I/O:

RS232C: 1 (D-sub 9pin)

USB Input:

Type A: 2 (1 (Side): For PC Free, FW Update, Copy OSD Settings; 1 (Rear): For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)

Type B: 2 (For FW Update, Copy OSD Settings, USB Display)

Network I/O:

Wired LAN: 1 (RJ45)

Wireless LAN: 1 (Built-in and Optional)

Projection Lens:

Type:

Laser Diode

Focal Length:

3.7mm

Zoom Ratio:

1.0 – 1.35 (Digital Zoom)

F-number:

1.60

Screen Size:

Standard: 74.3” screen 43.3cm

Zoom:

Zoom (Wide): 53” to 132” (33.7 – 92.8 cm) @ 4:3; 58” to 146” (33.7 – 92.8cm) @ 16:9; 60” to 150” (33.7 – 92.8cm) @ 16:10

Zoom (Wide): (With Interactive Function) 52.6” to 100” (33.7 – 60.1 cm) @ 16:9; 57.9” to 100” (33.7 – 68.7cm) @ 16:10; 59.5” to 100” (33.7 – 61.9cm) @ 4:3

Throw Ratio Range:

Throw Ratio: 0.27 – 0.37

Wireless Specifications (Wireless LAN: Built-in):

Supported Speed for Each Mode:

Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps4, IEEE 802.11g (2.4GHz): 54Mbps4 IEEE 802.11n (2.4GHz): 72.2Mbps4, IEEE 802.11a (5GHz): 54Mbps4, IEEE 802.11n (5GHz): 150Mbps4, IEEE 802.11ac (5GHz): 325Mbps4 Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps4, IEEE 802.11n (2.4GHz): 72.2Mbps4, IEEE 802.11a (5GHz): 54Mbps4, IEEE 802.11n (5GHz): 150Mbps4, IEEE 802.11ac (5GHz): 325Mbps4

Wireless LAN Security:

Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ; Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Supported Connection Mode:

Infrastructure, Access Point (Wi-Fi Direct)

Geometric Correction:

Vertical/Horizontal Keystone:

±3° / ±3°

Quick Corner:

Yes (Manual)

Start-Up Period:

Start-Up Period:

Less than 10 seconds (Epson Logo)

Quick Start-Up:

Less than 5 seconds (Display)

Internal Speaker(s):

Sound Output:

16W Mono

Air Filter:

Type:

Electrostatic Filter

Brightness:

White Light Output (Normal / Eco):

4,100lm / 2,800lm

Colour Light Output:

4,100lm / 2,800lm

Contrast Ratio:

Over 5,000,000 : 1

Specifications Projector:

Lamp Life:

(Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs

Main Parts Specification:

LCD:

Resolution: WXGA (1280 x 800)

Size: 0.59” (C2Fine)

Lightsource:

Type: Laser Diode Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs

Focal Length:

3.7mm

Zoom:

Zoom Ratio: 1 – 1.35 (Digital Zoom)

F-Number:

1.60

Throw Ratio:

Throw Ratio: 0.27 – 0.37

Projection Lens:

Operating Temperature: 0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [32 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation Over 2,286 m (7,500 ft): 0 - 35 °C [32 °F - 95 °F] ; 20%-80% Humidity, No Condensation

Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Type: No Optical Zoom / Focus (Manual)

Keystone Correction:

Vertical/Horizontal:

±3° / ±3°

Quick Corner:

Yes

Others:

Microphone Input:

1

Power Consumption (220-240V):

Lamp (Normal / Extended):

263W / 199W

Standby:

(Network On / Off): 2.0W / 0.5W

Dimension (Not including protruding parts):

Weight:

Appox. 6kg

Direct Power On / Off:

Direct Power On / Off:

Yes
