Take classroom and meeting room displays beyond the limits of flat panels.

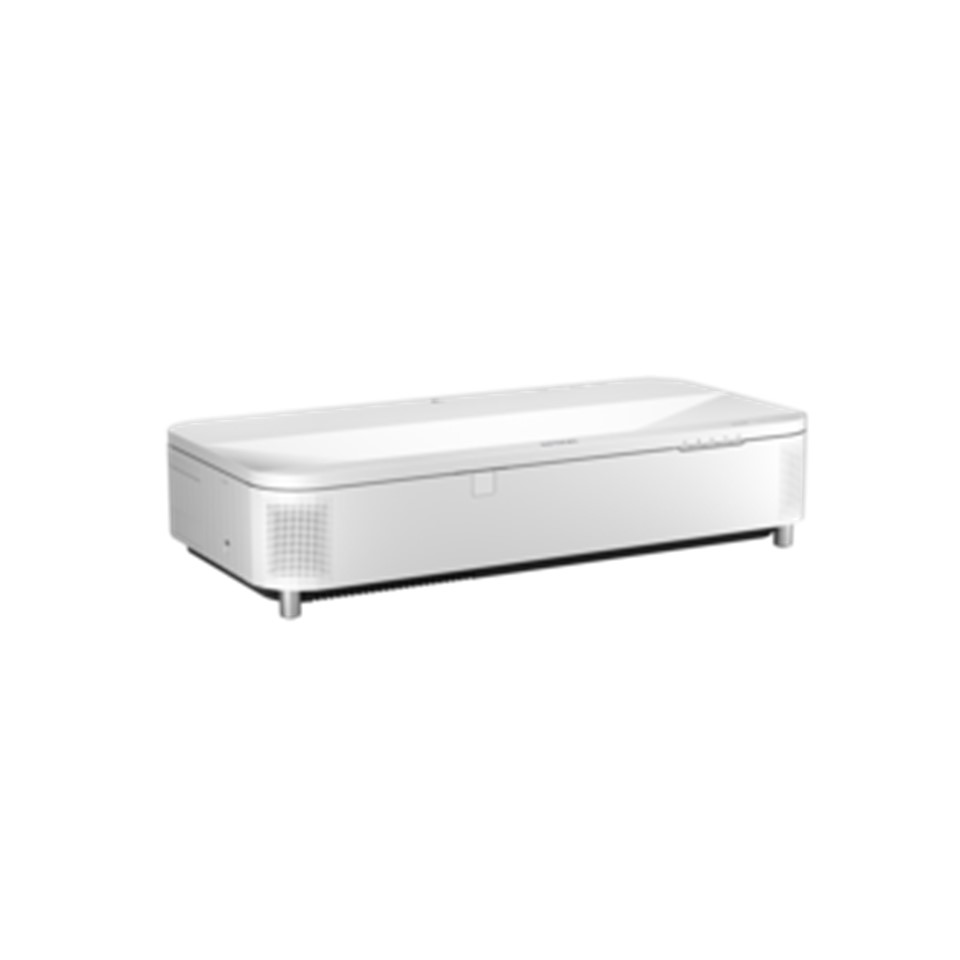

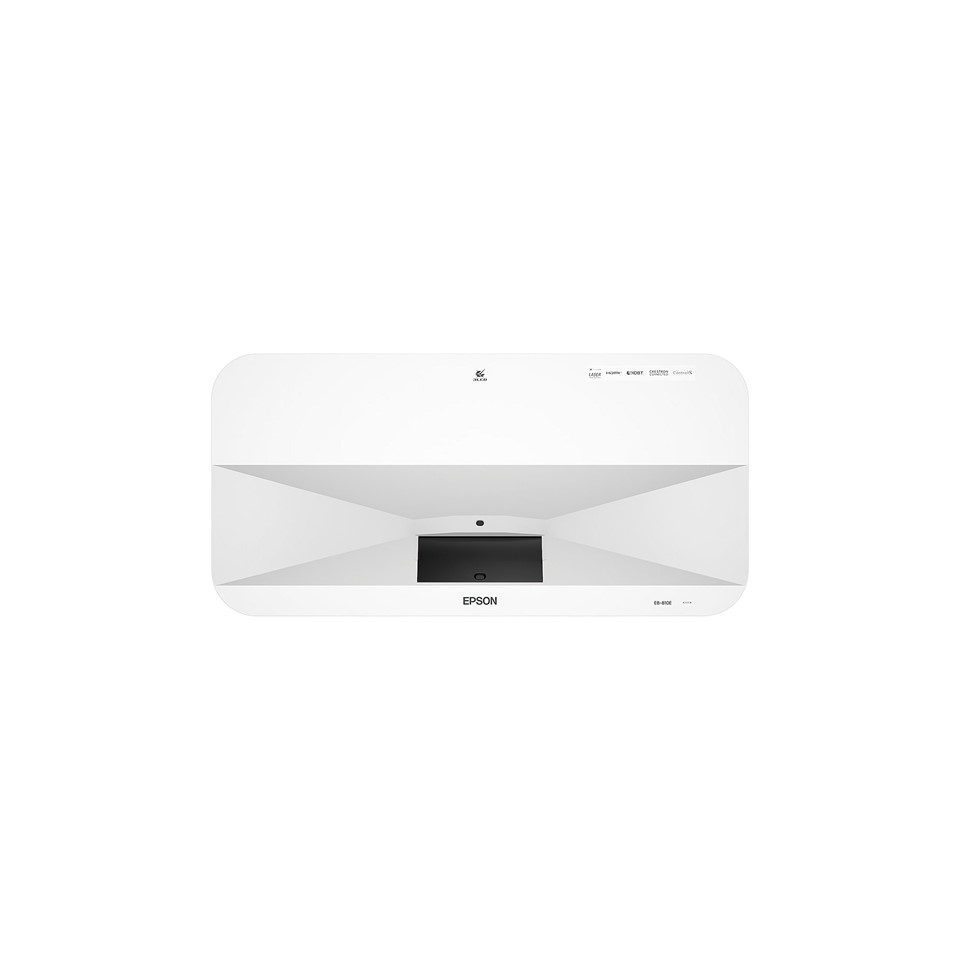

The EB-810E Extreme Short Throw 4K Enhancement1 Laser Projector is an innovative lamp-free laser display, offering a flexible solution for classrooms and hybrid workspaces. It delivers a bright, glare-free display up to 160" from just a few centimeters away from the wall, with built-in split-screen and multi-device support for casting.

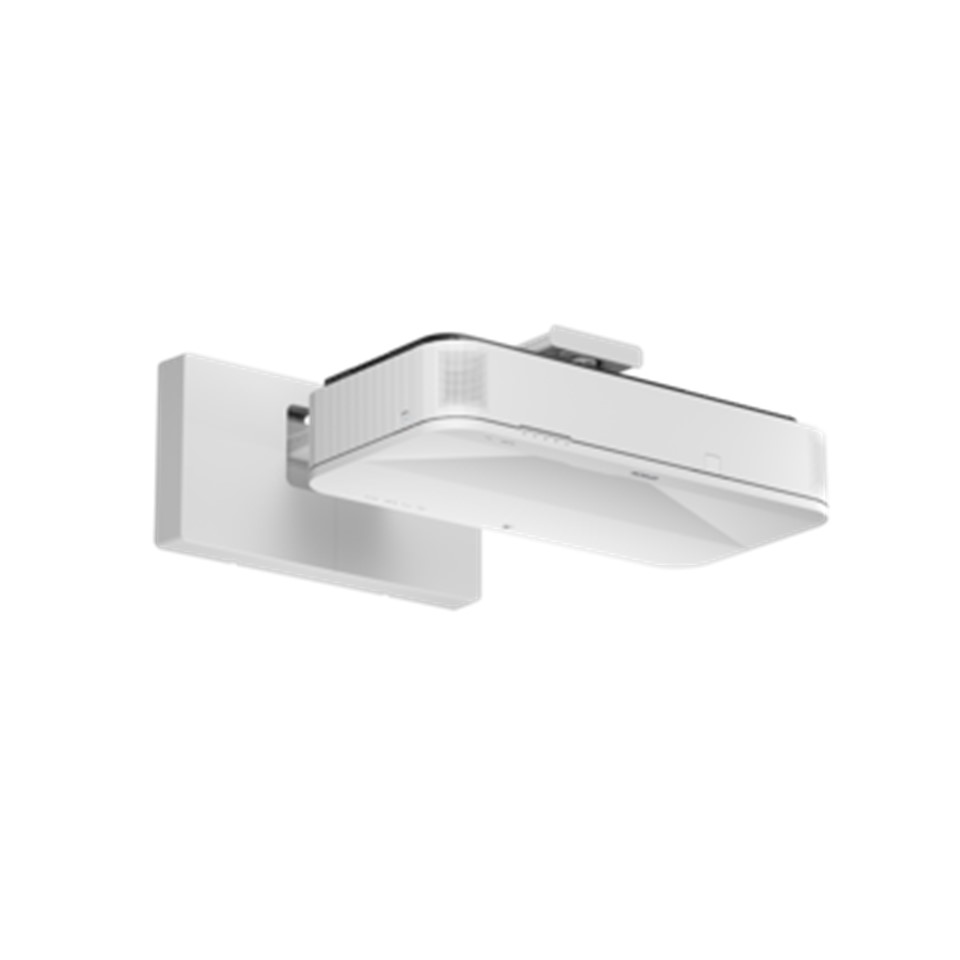

It supports various display ratios for hybrid meetings, has a long-lasting laser light source, and offers versatile connectivity. With an optional wall mount, it can transform traditional whiteboards into vibrant displays, and installation is easy with the Epson Setting Assistant app. Elevate your display beyond ordinary flat panels with the Epson EB-810E.

=        3LCD technology; 5,000 lumens of colour/white brightness

=        1080p with 4K Enhancement1 for stunning image clarity

=        Up to 160-inch screen size; 4.5x larger than a 75-inch flat panel

=        Easy integration with native 16:9 aspect ratio, supports 16:10, 21:9, 16:6



Specifications:

Projection Technology:

Projection Technology:

RGB liquid crystal shutter projection system

Brightness:

White Light Output (Normal/Eco):

5,000 lm / 3,500 lm

Colour Light Output:

5,000 lm

Connectivity:

Digital Input:

HDMI: 2 (HDCP 2.3)

HDBaseT: 1 (HDCP 2.3)

Control I/O:

RS-232C: 1 (D-sub 9-pin)

USB Input:

USB Type A: 2 (Port1 for for PC Free, Firmware update, Copy OSD Settings, ELPAP11; Port 2 for PC Free, Firmware update, Copy OSD Settings or 5V/2A Power Supply

USB Type B: 1 (For Firmware update, Copy OSD Settings)

Network I/O:

Wired LAN: 1 (RJ45)

Wireless LAN: In-built and Optional (using USB-A Port 1)

Digital Video Output:

HDMI: 1 (HDCP 2.3)

Contrast Ratio:

Contrast Ratio:

Over 5,000,000:1

Geometric Correction:

Quick Corner:

Yes

Operating Temperature:

Operating Temperature:

Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104°F>

High Altitude (Over 2,286m/7,500ft): 0 - 35 °C <32 - 95 °F>

20% - 80% Humidity, No Condensation

Operating Altitude:

Operating Altitude:

Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:

Start-Up Period:

Less than 6 seconds (Epson Logo); Warm-up Period: less than 30 sec

Quick Start-Up:

Less than 12 seconds (Display)

Cool Down Period:

Cool Down Period:

Instant off

Internal Speaker(s):

Sound Output:

8 W x 8 W Stereo

Direct Power On/Off:

Direct Power On/Off:

Yes

Weight:

Weight:

Approx. 12.5kg

Air Filter:

Type:

Electrostatic Filter

Maintenance Cycle :

20,000 hours (Normal)

Fan Noise:

Fan Noise (Normal / Eco):

35dB / 26dB

Adjustment Functions:

Frame Interpolation:

Yes

Image Adjustment:

4K Enhancement, Image Present Mode, Noise reduction

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D):

341 x 695 x 145 mm

Screen Size (Projected Distance – Lens to Screen):

Zoom : Wide:

80" to 160" [27.8cm to 57.8cm] @16:9

66" to 130" [28.1cm to 57.4cm] @4:3

74" to 148" [27.8cm to 57.8cm] @16:10

76" to 151" [27.9cm to 57.5cm] @21:9

75" to 148" [28.0cm to 57.4cm] @16:6

Zoom : Tele:

60" to 118" [28.2cm to 57.5cm] @16:9

49" to 96" [28.2cm to 57.2cm] @4:3

55" to 109" [27.9cm to 57.4cm] @16:10

57" to 112" [28.2cm to 57.6cm] @21:9

56" to 110" [28.3cm to 57.6cm] @16:6

Optional Wireless & Built In Lan Specifications:

Supported Speed for each Mode:

Infrastructure:

IEEE 802.11b (2.4GHz): 11 Mbps

IEEE 802.11g (2.4GHz): 54 Mbps

IEEE 802.11n (2.4GHz): 72.2 Mbps

IEEE 802.11a (5GHz): 54 Mbps

IEEE 802.11n (5GHz): 150.0 Mbps

IEEE 802.11ac (5GHz): 325Mbps

Access Point(Wi-Fi Direct):

IEEE 802.11g (2.4GHz): 54 Mbps

IEEE 802.11n (2.4GHz): 72.2 Mbps

IEEE 802.11a (5GHz): 54 Mbps

IEEE 802.11n (5GHz): 150.0 Mbps

IEEE 802.11ac (5GHz): 325Mbps

Supported Connection Mode:

Infrastructure, Access Point (Wi-Fi Direct)

Supported Security Type:

Infrastructure: OPEN (WPA2/WPA3-PSK/ WPA2/WPA3-EAP)

Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast

Access Point (Wi-Fi Direct) : WPA2-PSK (AES)

Main Parts Specification:

LCD:

Size: 0.62" (C2 Fine)

Resolution: 1080P (4KE)

Aspect Ratio: 16:9

Projection Lens:

Type: Focus (Manual)

F-Number: 1.8

Focal Length: 2.3mm

Zoom Ratio: 1 - 1.35 (Digital zoom)

Throw Ratio: 0.16 – 0.22 (Wide - Tele)

Power:

Power Consumption:

LD On (Normal / Quiet / Extended): 380W / 286W

Power Supply Voltage:

100 - 240 V AC ±10%, 50/60 Hz

Lightsource:

Type:

Laser Diode

Light Source Life (Normal/ Extended):

20,000 / 30,000 hrs

Colour Mode:

Colour Mode:

Dynamic, Presentation, Cinema, Natural, Blackboard, DICOM SIM, Multi-Projection, Face Brightness
