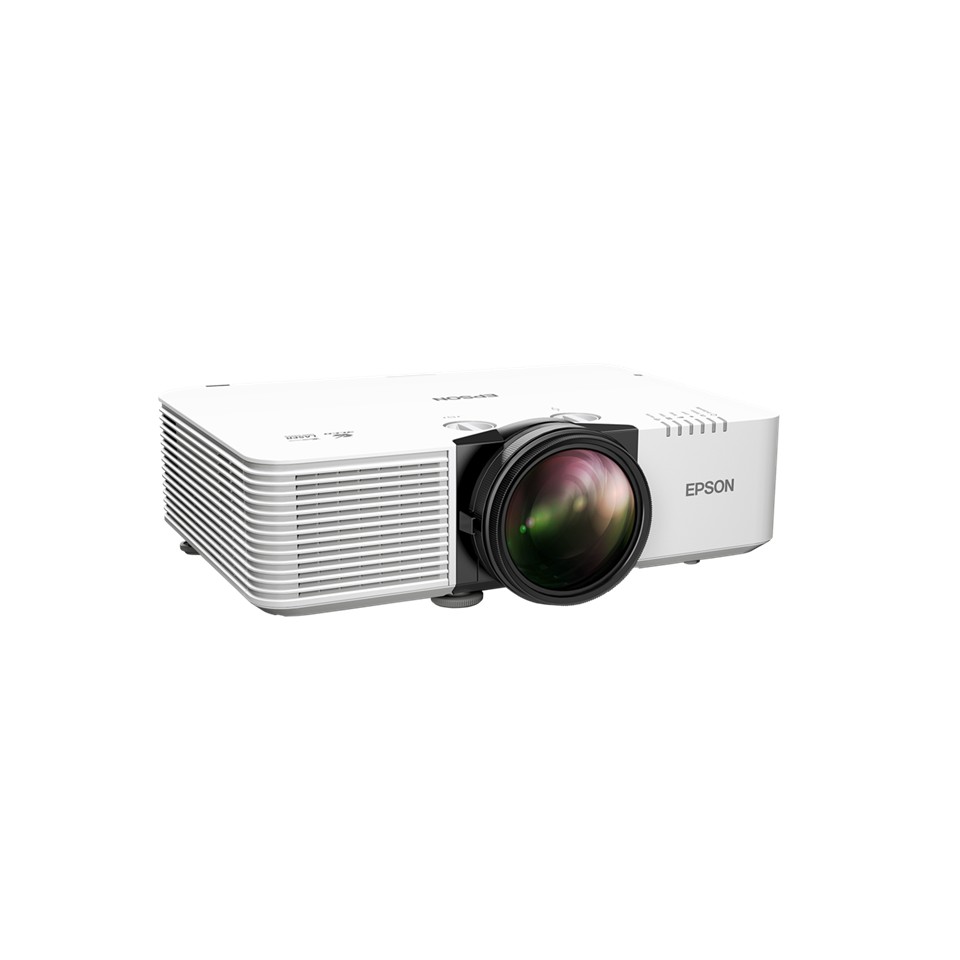

Experience an incredibly bright and compact projector with pro-level features.

The Epson EB-L690E adds pro features to the compact and versatile Epson business projector family. Featuring 6,500-lumens of color and white brightness, it is ideal for classrooms and lecture halls, conference rooms, hybrid workspaces and more. The EB-L690E displays double HD resolution on-screen with 4K Enhancement Technology for sharp, detailed images—even up close. This powerful projector produces exceptionally vibrant, high-resolution images up to 500'' in 16:10, plus is capable of projecting in a variety of other aspect ratios, including ultra wide 16:6 and 21:9.

Designed with convenience in mind, the EB-L690E features an up to 30,000-hour virtually maintenance-free laser light source and air filter in Extended Mode. And for simple, seamless installation, this versatile solution offers a variety of powerful features, such as optical zoom, wide lens shift, geometric correction tools and more. With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection and Miracast. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.7,300 lumens color/white brightness

=        6,500 lumens color/white brightness

=        WUXGA with 4K Enhancement2 for clear, detailed images

=        Display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9

=        Lightweight, compact design allows for easy installation

=        Up to 30,000-hour laser light source3 and air filter

=        AirPlay 2 supported

Ultra bright, true-to-life images

3-chip 3LCD technology and 6,500 lumens of equal color and white brightness

WUXGA with 4K Enhancement Technology

Accepts 4K content and displays double HD resolution on-screen; enjoy a visibly sharper, more detailed picture even at close viewing distances

Large, versatile display options

Easily create a display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility

Simplified installation

Compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.6x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern

Low maintenance

Up to 30,000-hour laser light source and air filter in Extended Mode

Wireless networking and content sharing

Wi-Fi 6 allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected, and WPA 3-enterprise security

Specifications:

Projection Technology:

Projection Technology:

RGB liquid crystal shutter projection system (3LCD)

Brightness:

Light Output (Center):7,100 lmWhite Light Output (Normal/Eco):6,500 lm / 4,550 lmColour Light Output:6,500 lm

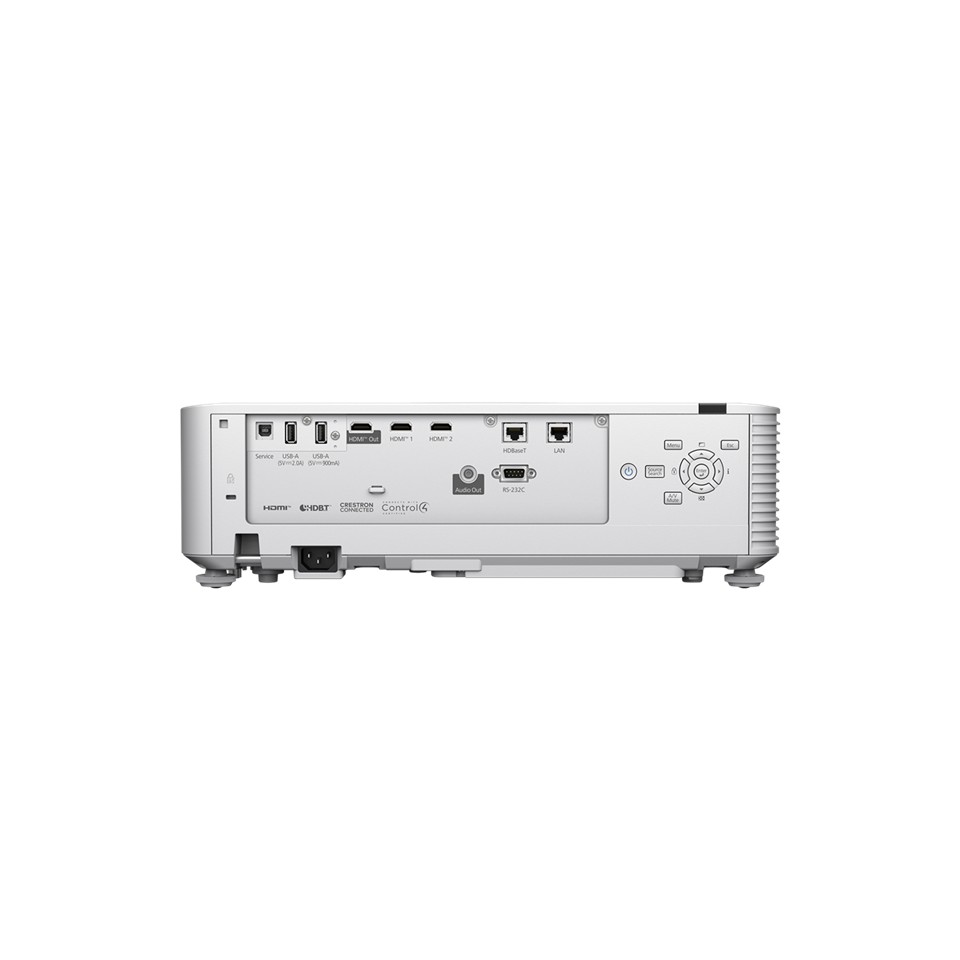

Connectivity:

USB:

USB Type A: 2 (Port 1: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01 or 5V/2A Power Supply; Port 2: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01 or 5V/0.9A Power Supply

USB Type B: 1 (For Firmware Update, Copy OSD Settings)

Network:

Wired LAN: RJ45 x 1 (100Mbps)

Wireless LAN: Built-in

Digital Input:

HDMI : 2 (HDCP 2.3)

HDBaseT: 1 (HDCP 2.3)

Audio Output:

Stereo Mini: 1

Control I/O:

RS-232C: 1 (D-Sub 9pin)

Digital Output:

HDMI Out: 1 (HDCP2.3, supports only HDMI1 input)

Contrast Ratio:

Contrast Ratio:

Over 5,000,000:1

Screen Size (Projected Distance):

Standard Size:

80" diagonal 2.39m - 3.90m

Screen Size:

Zoom: Wide: 50" - 500" (1.49m - 14.94m)

Zoom: Tele: 50" - 500" (2.44m - 24.35m)

Geometric Correction:

Vertical/Horizontal Keystone:

±30° / ±30°

Projection Orientation:

360º Free

Operating Temperature:

Single Use:

Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>

High Altitude (Over 2,286m/7,500ft): 0 - 40 °C <32 - 104°F>

20% - 80% Humidity, No Condensation

Multi-projection Use:

Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>

High Altitude (Over 2,286m/7,500ft): 0 - 35 °C <32 - 95°F>

20% - 80% Humidity, No Condensation

Operating Altitude:

Operating Altitude:

Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:

Start-Up Period:

12 seconds (Epson Logo); Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period:

Instant Off

Internal Speaker(s):

Sound Output:

10 W Monaural

Direct Power On/Off:

Direct Power On/Off:

Yes

Dimension Excluding Feet:

Dimension Excluding Feet (W x D x H):

440 x 304 x 122 mm

Weight:

Weight:

Approx. 8.2kg

Air Filter:

Type:

Electrostatic Filter

Maintenance Cycle:

20,000 hours (Normal) / 30,000 hours (Extended)

Fan Noise:

Fan Noise (Normal / Eco):

32dB / 25dB

Specifications Projector:

Size - projected distance:

100” diagonal (wide: 9.3’ – tele: 19.8’)

Contrast Ratio:

Absolute Black (Full White 1500 lm / Full Black 0 lm)

Projection Method:

Front / rear / ceiling mount

Projection System:

3LCD Reflective, 3-chip technology Poly-silicon TFT active matrix

Pixel Number:

2,073,600 dots (1920 × 1080) × 3

Color Brightness - Color Light Output:

1500 lumens *1

Projected Output:

HD, 2D, 3D, 1080p

White Brightness - White Light Output:

1500 lumens *1

Aspect Ratio:

Native 16:9 widescreen (4:3 resize), compatible with 4:3 and 2.35:1 video formats with Normal, Full or Zoom Modes

Driving Method:

Epson Poly-silicon TFT active matrix, 0.74-inch wide panel Reflective HTPS

Native Resolution:

Native 1080p (1920 × 1080)

Laser Type:

Laser Diode 41.9 mW (Output)

Light Source Life:

Up to 20,000 hours (ECO Mode)

Power:

Power Consumption:

220 – 240V

LD On (Normal / Extended): 399W / 295W

Standby (Network On / Off): 2.4W / 0.4W

Power Supply Voltage:

100 - 240 V AC ±10%, 50/60 Hz

Colour Mode:

Colour Mode:

Dynamic, Bright Cinema, Natural, Cinema, Adobe RGB, Digital Cinema, 3D Dynamic, 3D Cinema

Miracast:

Certification:

Wi-Fi CERTIFIED Miracast R2

Supported Codec:

H.264 (AVC)

Wireless Specifications (Optional Wireless LAN):

Supported Mode :

Infrastructure, Simple AP (Wi-Fi Direct)

Supported Speed :

IEEE 802.11a/b/g/n/ac/ax

Security Tyре:

Infrastructure: Open, WPA2 / WPA3-PSK, WPA2/WPA3-EAP

Supported EAP Type: PEAP, EAP-TLS

Simple AP (Wi-Fi Direct): WPA2-PSK (AES)

Quick Start-Up:

Quick Start-Up:

Less than 8 seconds (Display)

AirPlay 2:

Supported Codec:

H.264(AVC), H.265(HEVC), AV1, VP9, MEPG-2, MPEG-4

Specifications of Main Parts:

LCD:

Size: 0.67” (C2 Fine)

Driving Method: Poly-silicon TFT active matrix

Pixel Number: 2,304,000 dots (1920 x 1200) x 3

Native Resolution: WUXGA

Aspect Ratio: 16:10

Pixel Arrangement: Cross stripe

Light Source:

Type: Laser Diode

Life (Normal / Extended): 20,000 hours / 30,000 hours

Resolution:

WUXGA with 4k Enhancement

Pixel Number: 4.6M pixels (1920 x 1200 x 2)5

Projection Lens:

Type: Optical Zoom (Manual) / Focus (Manual)

F-Number: 1.5 – 1.7

Focal Length: 20.0 – 31.8 mm

Zoom Ratio: 1.0 - 1.60

Throw Ratio: 1.35 – 2.20

Lens Shift:

Vertical: ±50% (Manual)

Horizontal: ±20% (Manual)

Adjustment Functions:

Aspect Mode:

Auto, 4:3, 16:9, Full, H-zoom, V-zoom, Native

Frame Interpolation:

N/A
