Deliver brilliant displays with remarkable brightness and 4K Enhancement.

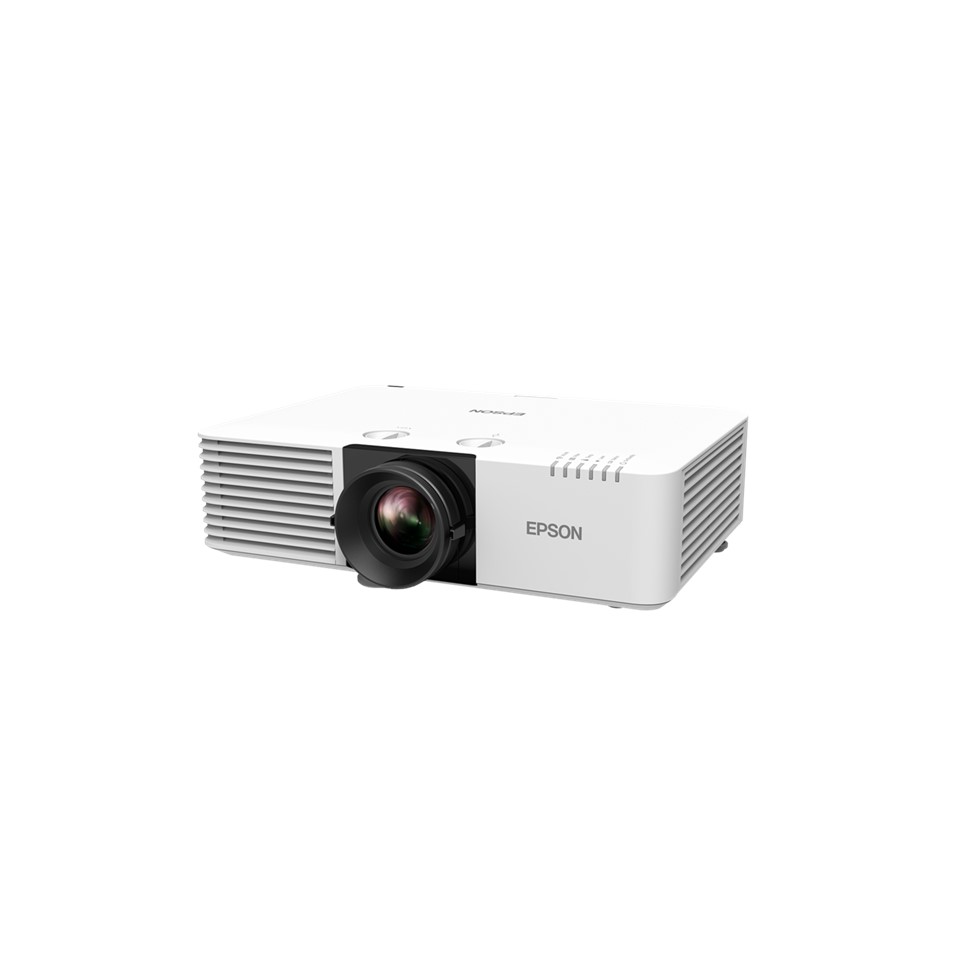

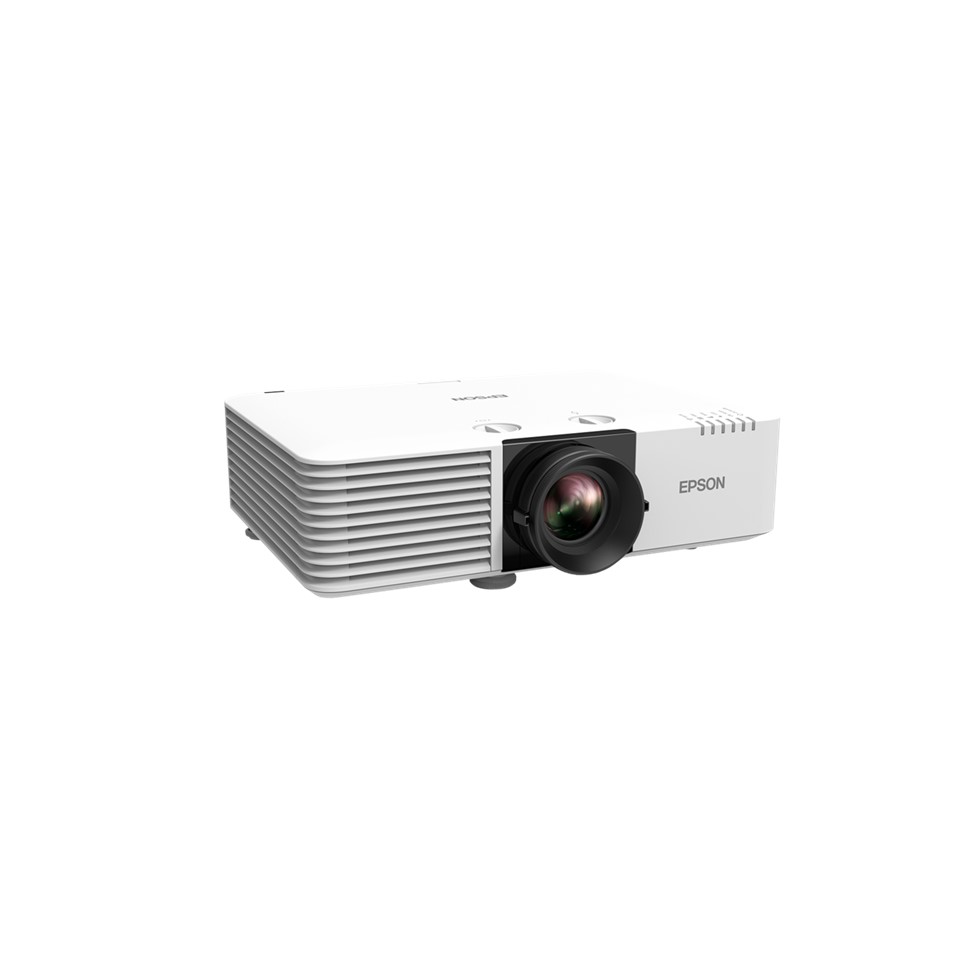

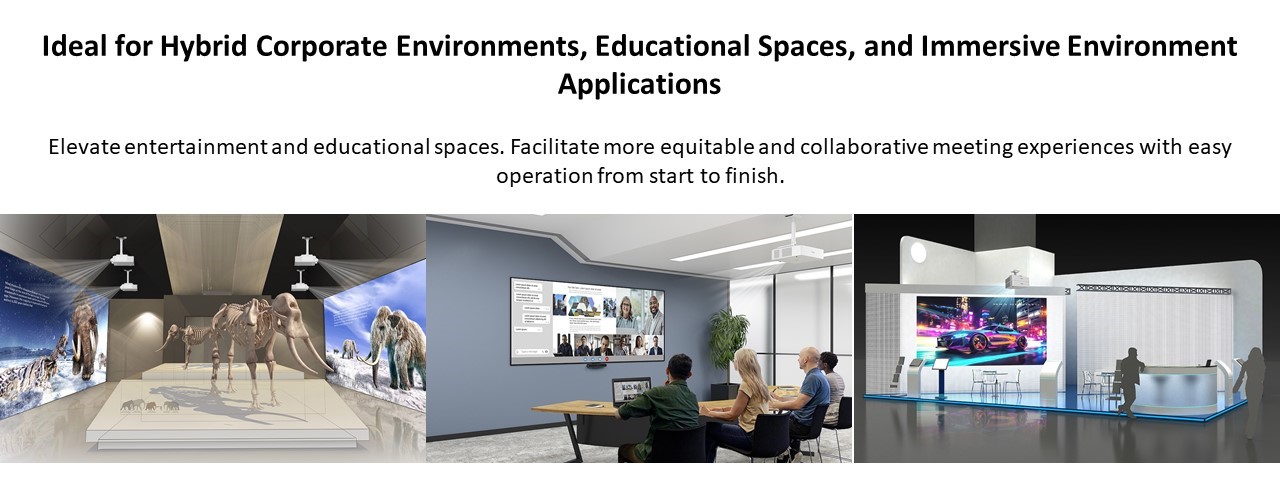

The versatile EB-L770U laser projector brings strikingly clear images to meeting rooms, classrooms and beyond. This conveniently lightweight, compact projector offers native WUXGA with 4K Enhancement1 and an incredible 7,000 lumens of brightness2, providing smooth, ultra bright, detailed images—even up close. Display images up to 500'' and switch between a variety of aspect ratios, from standard 16:10 to ultra wide 21:9 that provides for a more immersive experience—ideal for hybrid work environments as well as classrooms. The more information that needs to be displayed on a single screen, the more critical the need for a larger display and higher resolution.

Simple to install, EB-L770U is easy to operate from start to finish. Designed with convenience in mind, this projector features a 20,000 hour virtually maintenance-free laser light source and air filter3. Plus, simplify complex multi-projector functions with the optional attachable ELPEC01 camera.

=        7,000 lumens of colour and white brightness

=        WUXGA with 4K Enhancement1 for clear, detailed images

=        20,000 hour, virtually maintenance-free laser light source and air filter

=        Project up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9



Projectors Facets:

Resolution, Projectors Facets:

WUXGA

Contrast Ratio, Projectors Facets:

5,000,000 : 1

Inputs & Interfaces, Projectors Facets:

RJ-45 & RS-232

Brightness Range Lumens, Projectors Facets:

4001

Features, Projectors Facets:

Edge Blending

Features, Projectors Facets:

Edge Blending

Screen Mirroring

Wifi

Laser / Lamp, Projectors Facets:

Laser

Projection Technology:

Projection Technology:

RGB liquid crystal shutter projection system (3LCD)

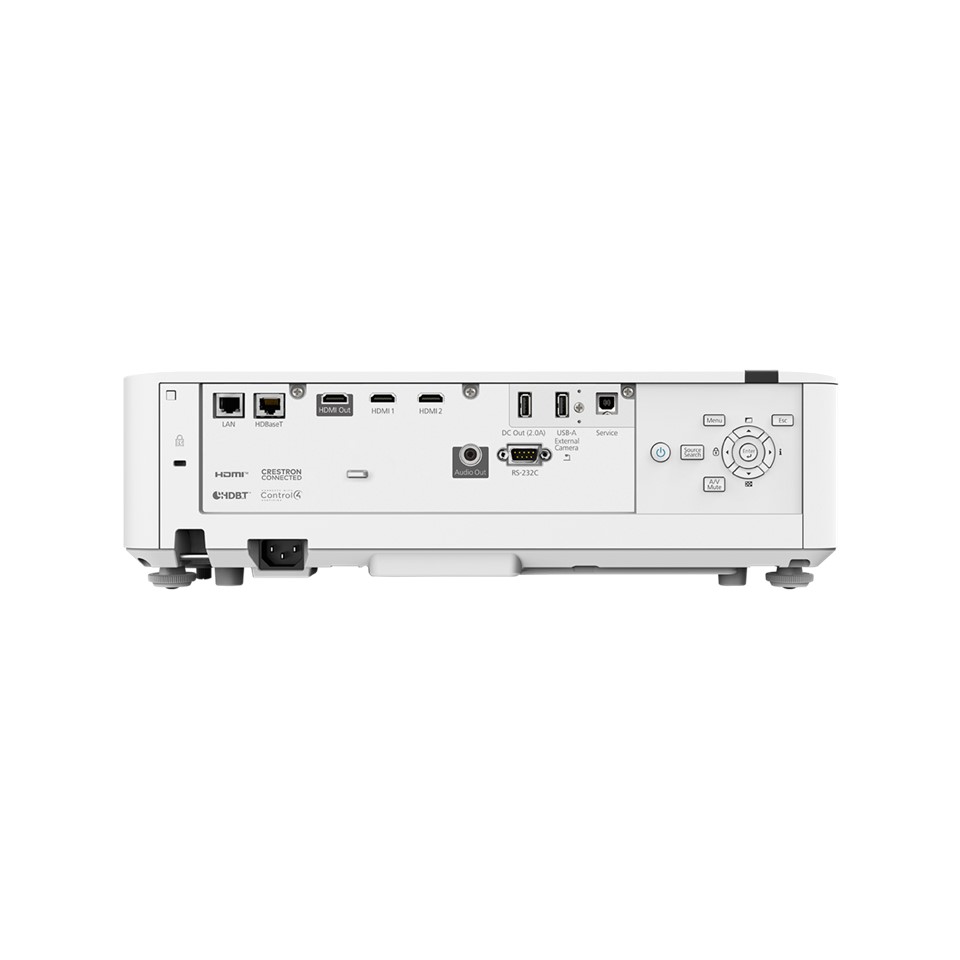

Connectivity:

Digital Input:

HDMI: 2 (HDCP 2.3)

HDBaseT: 1 (HDCP 2.3)

Audio I/O:

Audio Out: 1 (Stereo Mini)

Control I/O:

RS232C: 1 (D-sub 9pin)

USB Input:

USB Type A: 2 (Port1 for for PC Free, Firmware update, Wireless LAN, Document Camera, Copy OSD Settings, Content playback, External camera; Port2 for 5V/2A power supply only, no USB function)

USB Type B: 1 (For Firmware update, Copy OSD Settings)

Network I/O:

Wired LAN: 1 (RJ45)

Wireless LAN: Optional (Using ELPAP11)

Digital Video Output:

HDMI: 1 (HDCP 2.3)

Contrast Ratio:

Contrast Ratio:

Over 5,000,000:1

Screen Size (Projected Distance):

Zoom : Wide:

50” - 500” [1.44 - 14.76 m]

Zoom : Tele:

50” - 500” [2.35 - 23.84 m]

Geometric Correction:

Projection Orientation:

360° Free

Operating Temperature:

Single Use:

Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>

High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 40 °C <32 - 104 °F>

20% - 80% Humidity, No Condensation

Multi-projection Use:

Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>

High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 35 °C <32 - 95 °F>

20% - 80% Humidity, No Condensation

Operating Altitude:

Operating Altitude:

Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:

Start-Up Period:

8 seconds (Epson Logo); Warm-up Period: 30 sec

Quick Start-Up:

Less than 7 seconds (Display)

Cool Down Period:

Cool Down Period:

Instant Off

Internal Speaker(s):

Sound Output:

10W Monaural

Weight:

Weight:

Approx. 8.5kg

Air Filter:

Type:

Electrostatic Filter

Maintenance Cycle :

20,000 hours (Normal) / 30,000 hours (Extended)

Fan Noise:

Fan Noise (Normal / Eco):

38dB / 27dB

Power:

Power Supply Voltage:

100 - 240 V AC ±10%, 50/60 Hz

Main Parts Specification:

LCD:

Size: 0.67" (C2 Fine)

Resolution: WUXGA

Aspect Ratio: 16:10

Projection Lens:

Type: Optical Zoom (Manual) / Focus (Manual)

F-Number: 1.50 – 1.70

Focal Length: 20 mm - 31.8 mm

Zoom Ratio: 1.0 – 1.60

Throw Ratio: 1.35 - 2.20 (Wide - Tele)

Keystone Correction:

Vertical/Horizontal:

±30°

Lightsource:

Type:

Laser Diode

Light Source Life (Normal/ Extended):

20,000/ 30,000 hrs

Direct Power On / Off:

Direct Power On / Off:

Yes

Dimension Excluding Feet:

Dimension Excluding Feet (D x W x H):

304 x 440 x 122 mm

Brightness:

White Light Output (Normal/Eco):

7,000lm / 4,900lm

Colour Light Output:

7,000lm

Wireless Specifications (Optional Wireless LAN):

Supported Speed for Each Mode:

Infrastructure:

IEEE 802.11b (2.4GHz): 11 Mbps

IEEE 802.11g (2.4GHz): 54 Mbps

IEEE 802.11n (2.4GHz): 72.2 Mbps

IEEE 802.11a (5GHz): 54 Mbps

IEEE 802.11n (5GHz): 150.0 Mbps

Access Point:

IEEE 802.11b (2.4GHz): 11 Mbps

IEEE 802.11g (2.4GHz): 54 Mbps

IEEE 802.11n (2.4GHz): 72.2 Mbps

IEEE 802.11a (5GHz): 54 Mbps

IEEE 802.11n (5GHz): 150.0 Mbps

Supported Mode:

Infrastructure, Access Point

Supported Security Type:

Infrastructure: OPEN (WPA2/WPA3-PSK/ WPA2/WPA3-EAP)

Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast

Access Point: WPA2-PSK (AES)

Power Consumption:

Laser Diode ON (Normal / Extended):

366 W / 268W

Standby (Network On/Off):

2.0W / 0.5W
