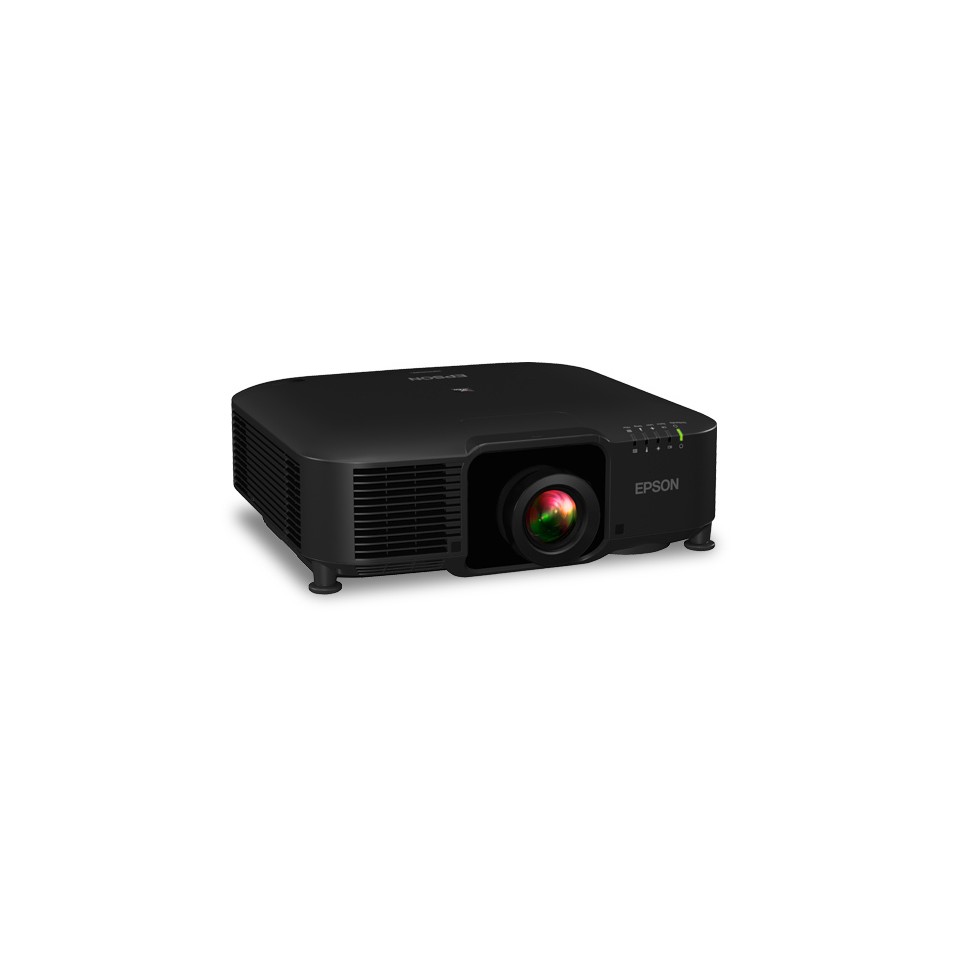

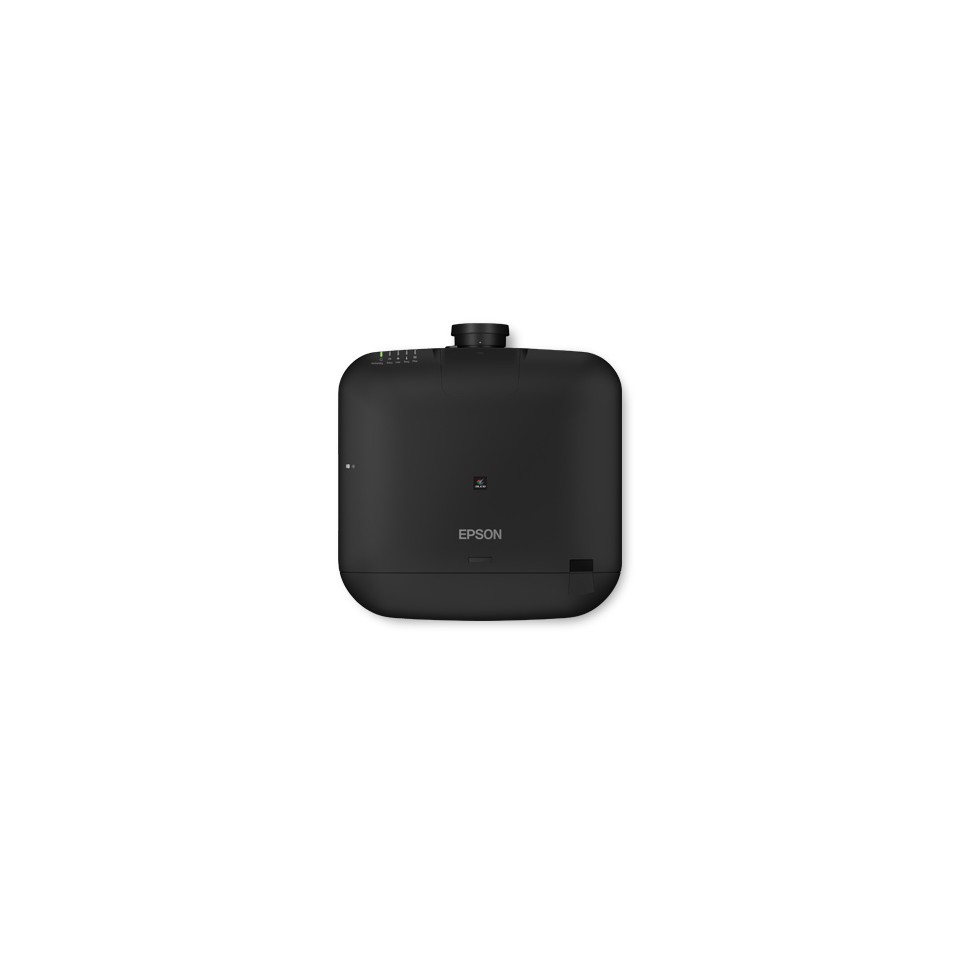

The world’s smallest and lightest 10,000-lumen 4K projector.

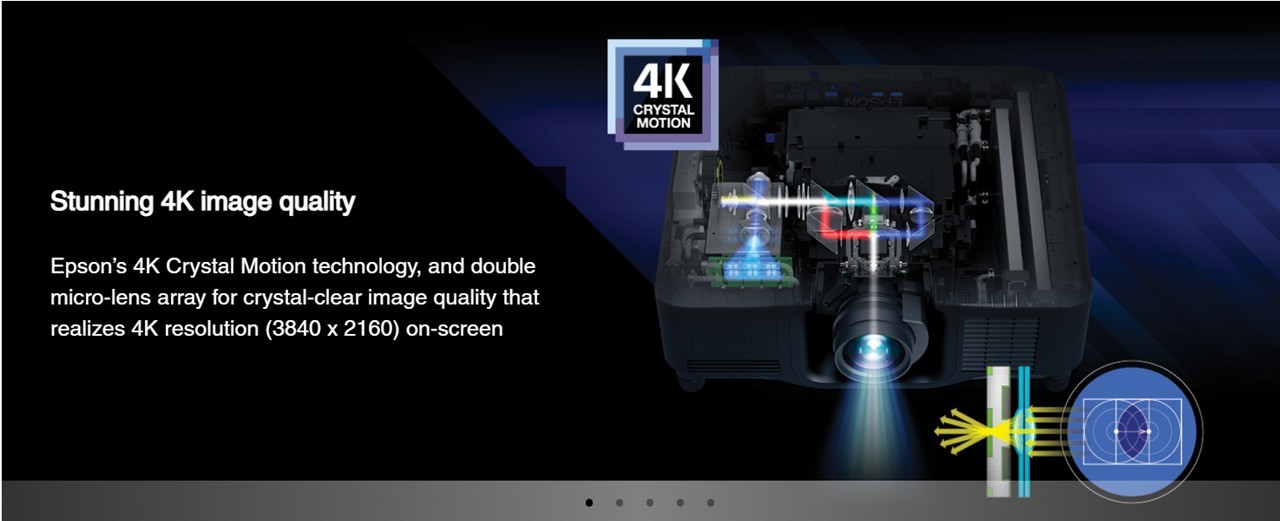

The EB-PQ2010B large venue 4K laser projector features the latest Epson® technology—pioneering an unprecedented level of performance. The world’s smallest and lightest 10,000-lumen 4K projector1, the energy efficient EB-PQ2010B produces captivating visuals in extraordinary detail. Leveraging our 4K Crystal Motion technology, thermo-control panel and double micro-lens array, the EB-PQ2010B delivers stunning 4K resolution on-screen. With a high native contrast ratio and 3-chip 3LCD technology, you will enjoy a realistic display enriched with vibrant colors and deep blacks.

The EB-PQ2010B features a virtually maintenance-free 20,000-hour laser light source and air filter. The projector provides frame interpolation for fast-moving objects, as well as HDR support and scene adaptive gamma correction for lifelike images. The EB-PQ2010B pairs with 10 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality, and an optional attachable PixAlign™ camera to streamline multi-projector setups.8,000 lumens of equal white and color brightness

=       World's smallest and lightest 10,000-lumen 4K projector

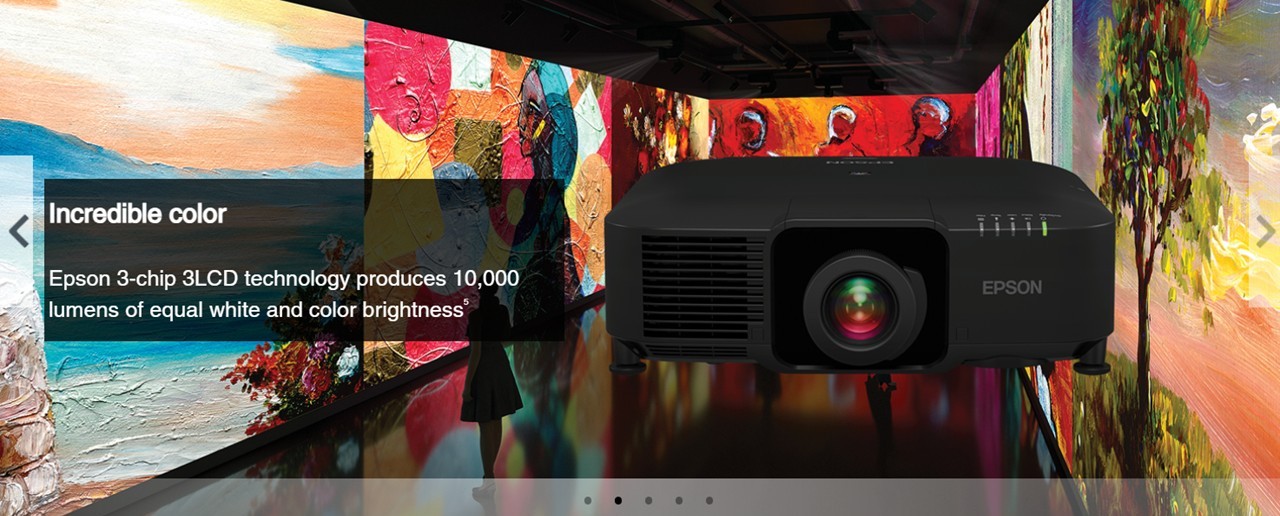

=       10,000 lumens of equal white and color brightness

=       4K Crystal Motion technology

=       Virtually maintenance-free 20,000-hour laser light source

=       High native contrast for a realistic display

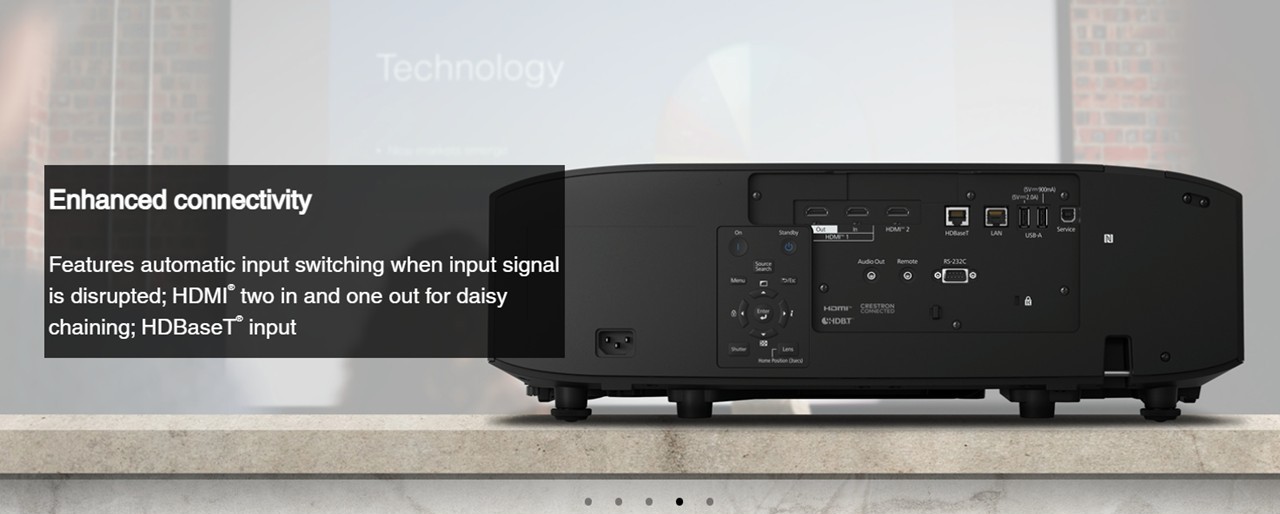

=       Enhanced connectivity — HDMI® two in and one out; 12G-SDI in/out for daisy chaining and signal monitoring; features automatic input switching when input signal is disrupted

=       Low latency performance and high frame rate support — high-speed graphics chip and panel drive technology enable high frame rate 4K playback

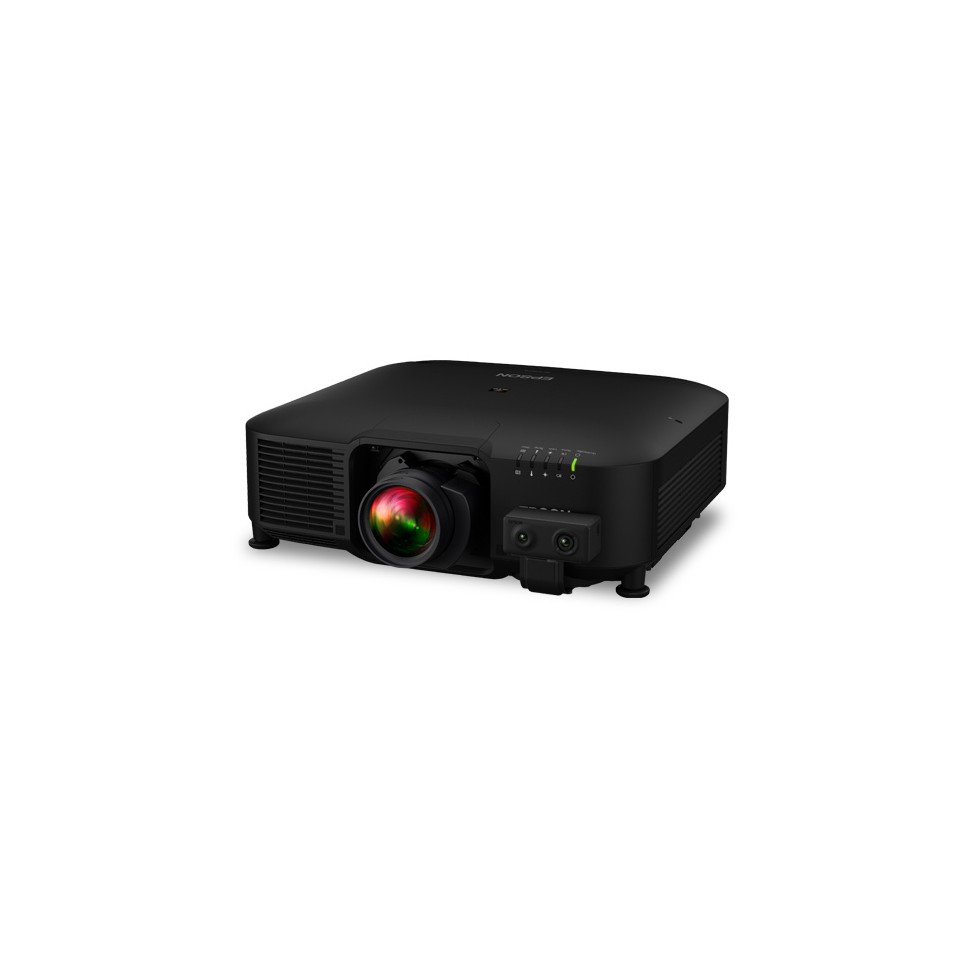

=       Optional attachable PixAlign external camera — access powerful automated tools including edge blending assist6, stacking assist function6, auto color calibration7 and screen matching7 with or without a connected PC and router

=       Efficient setup and management — control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT app)8; easily manage your installed inventory using Epson Projector Management – Connected (EPM-C)9 from any device with a Web browser

=       NFC function built-in — reduce installation time of multiple projectors; read and write setting information using Epson’s mobile app

Eco Features

=       RoHS compliant

=       End-of-life options available

=       Epson America, Inc. is a SmartWay® Transport Partner

What's in the box:

=       EB-PQ2010B laser projector

=       power cable

=       remote control with 2 batteries

=       cable cover

=       lens connector cap

=       quick reference guide

=       warranty sheet

Specifications:

Projection System High-aperture Epson 3-chip 3LCD technology

Projection Method Front/rear/ceiling mount

Driving Method Poly-Silicon TFT Active Matrix

Pixel Number 2,073,600 pixels (1920 x 1080) x 3 chips

Signal Input Maximum Display Resolution: 4096 x 2160 pixels (resizing display)

Native Resolution 1080p with 4K Crystal Motion (1920 x 1080 x 4)

Resolution on Screen 4K UHD (3840 x 2160)

Aspect Ratio Supports 4:3, 16:10, 16:9*, 21:9*

* With vertical image shift control within letterbox area.

Pixel Arrangement Cross stripe

Color Brightness Color Light Output: 10,000 lumens

White Brightness White Light Output: 10,000 lumens

Contrast Ratio Up to 5,000,000:1 (Dynamic Contrast: On)

Brightness Uniformity (Typical) 85%

Color Reproduction Up to 1.07 billion colors

Keystone Correction

Vertical: ±45 degrees;

Horizontal: ±30 degrees

Illumination Technology Laser Phosphor

Light Source Life

20,000 hours (Normal Mode)

30,000 hours (Extended Mode)

Projection Lens (Standard)

Visit www.epson.com for information on optional lenses.

Standard Lens ELPLM15 (sold separately)

Type Powered shift/focus/zoom

F-Number 2.0 – 2.1

Focal Length 14.8 mm – 17.7 mm

Zoom Ratio Optical Zoom: 1.0 – 1.6

Throw Ratio Range 1.52 – 2.47

Lens Shift Vertical: ±60%; Horizontal: ±18%

Other Features

Operating Temperature 32 ˚F to 122 ˚F (0 ˚C to 50 ˚C)

Power Supply Voltage 100 V – 240 V AC ±10%, 50/60 Hz

Power Consumption

640 W (Normal/Custom)

501 W (Quiet/Extended)

2.0 W Standby (Network Standby)

0.5 W Standby (Energy Saving)

Fan Noise 39 dB (Normal Mode), 29 dB (Eco Mode)

Security Security cable hole, lens lock, Kensington® lock provision, wireless LAN unit lock

Video I/O

Input Signal Input Video Signal (HDMI and HDBaseT ports)

480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160

Max PC Graphics: 2560 x 1600/3440 x 1440

Auto Power On Signal Detection on HDMI/Plug-In Detection (HDMI)

Sleep Mode Yes (with timer)

HDMI CEC Control Yes

Interfaces

12G-SDI In/Out

HDMI (HDCP 2.3) x 2/HDMI Out x 1

HDBaseT x 1

Variable Audio Out: Mini Stereo x 1

USB Type-A for Wireless LAN (optional)

USB Connector Type-B x 1

Serial: RS-232c x 1

Remote Stereo Mini

Network: RJ-45

Dimensions (W x D x H)

Excluding Feet 21.5" x 17.2" x 6.5" (545 mm x 436 mm x 164 mm)

Weight 41.4 lb (18.8 kg)

Remote Control

Features Power, Source Search Selection, Lens Shift, Zoom,

Focus, Test Pattern Selection, Shutter, Freeze, ID, Color Mode,

Number, E-Zoom, Volume, Menu, Enter, ESC, Pointer Functions,

Blend Guides, Multi-Projection, Color Tone Adjust and Memory

Operating Angle

Angle Front: Right/Left: 60 to +60; Upper/Lower: +30 to 20 degrees

Angle Rear: Right/Left: 30 to +30; Upper/Lower: +50 to +10 degrees

Operating Distance 98 ft

Eco Features

RoHS compliant

End-of-life options available

Epson America, Inc. is a SmartWay® Transport Partner

Limited Warranty and Service

Warranty Three-year limited in the U.S. and Canada

Service Toll-free telephone support, Monday through Friday

Epson Connection^SM

Pre-Sales Support (U.S. and Canada): 800-463-7766

Website: www.epson.com

Epson Preferred^SM Plus Extended Service Plan

3-Year Upgrade to Next-Business-Day Whole Unit Exchange11 for Years 1-3

5-Years Next-Business-Day Whole Unit Exchange for Years 1-5

Other extended service plans may be available

What's Included

EB-PQ2010B laser projector, power cable, remote control with 2 batteries, cable cover, lens connector cap, quick reference guide and warranty sheet

Ordering Information

EB-PQ2010B

Air Filter (ELPAF46)

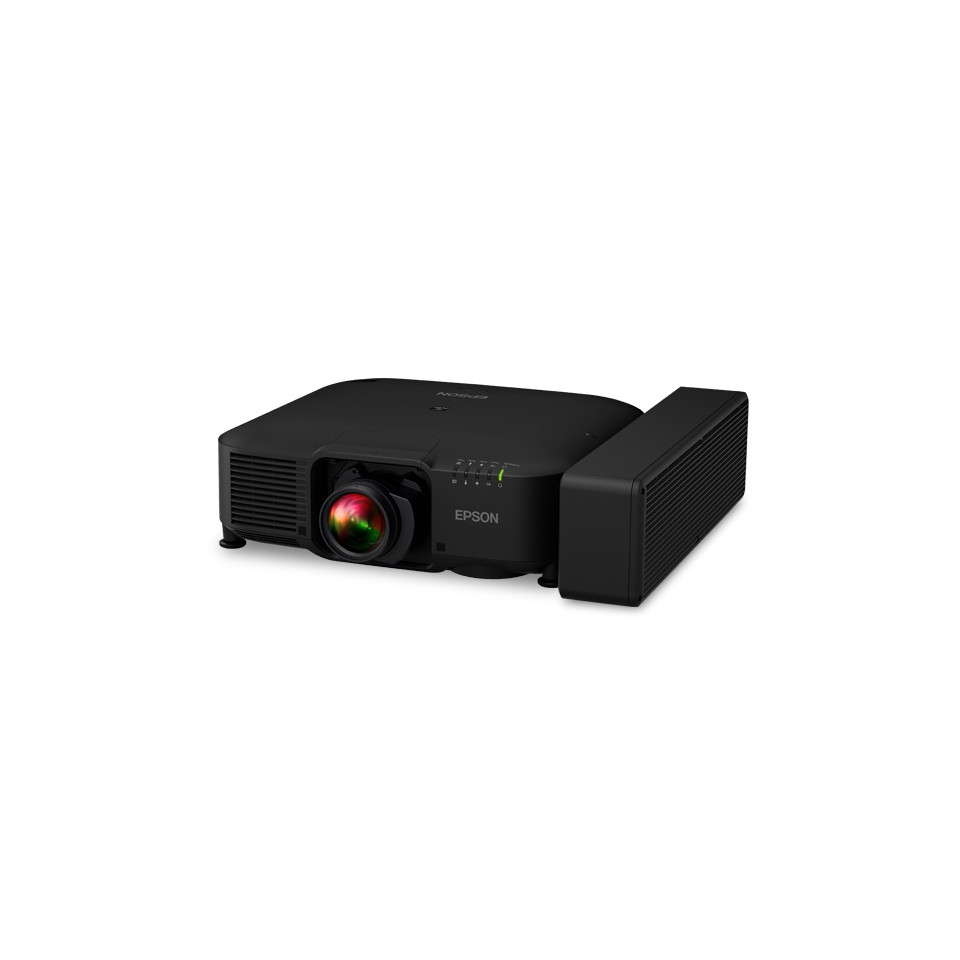

External Air Filter (ELPAF63)

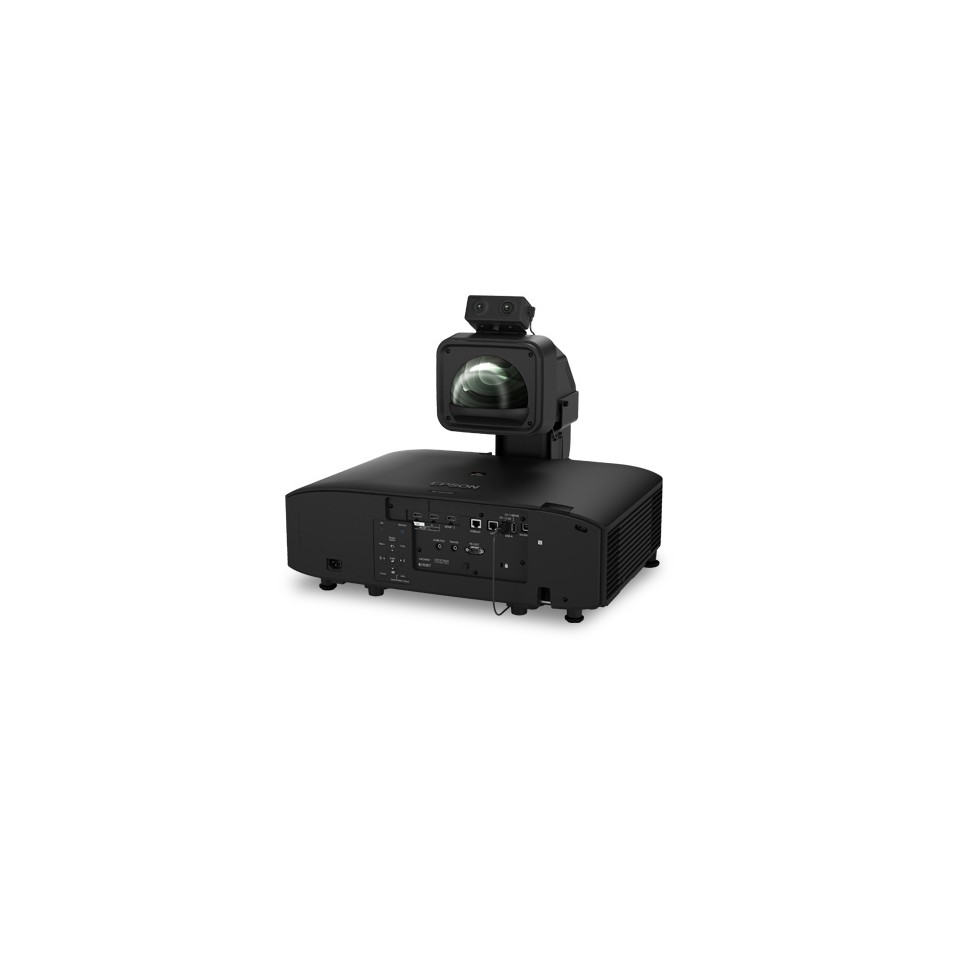

Ultra Short Throw Lens (ELPLX02S)

Ultra Short Throw Lens – White (ELPLX02WS)

Short Throw #1 Zoom Lens (ELPLU03S)

Short Throw #2 Zoom Lens (ELPLU04)

Wide Throw #1 Zoom Lens (ELPLW05)

Wide Throw #2 Zoom Lens (ELPLW06)

Wide Throw #3 Zoom Lens (ELPLW08)

Middle Throw #2 Zoom Lens (ELPLM15)

Middle Throw #3 Zoom Lens (ELPLM10)

Middle Throw #4 Zoom Lens (ELPLM11)

Long Throw Zoom Lens (ELPLL08)

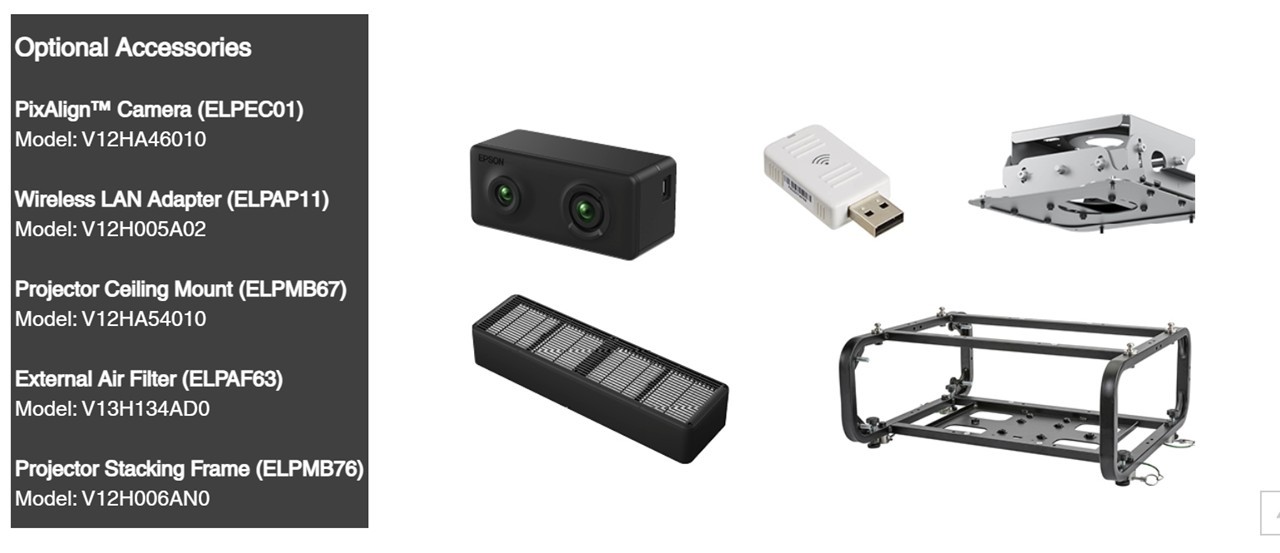

Rigging Frame (ELPMB59)

Stacking Frame (ELPMB76)

Mounting Tilt Plate (ELPMB77)

Wireless LAN Module (ELPAP11)

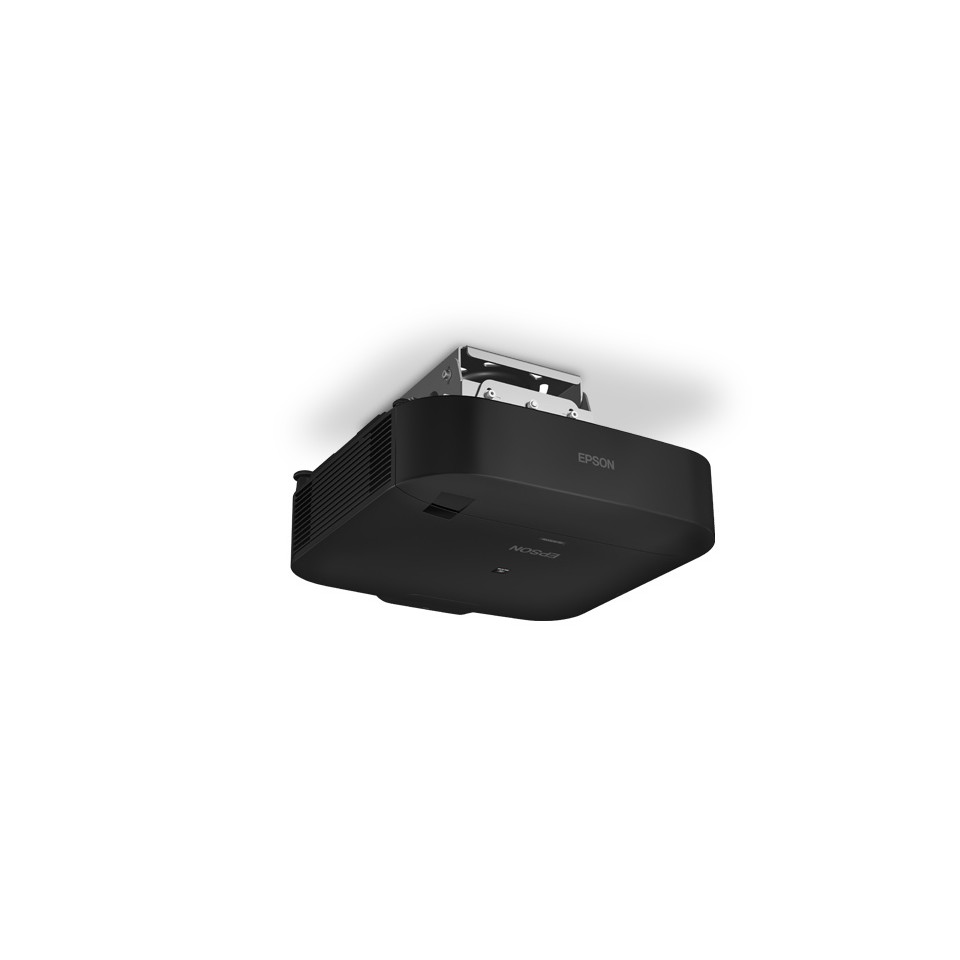

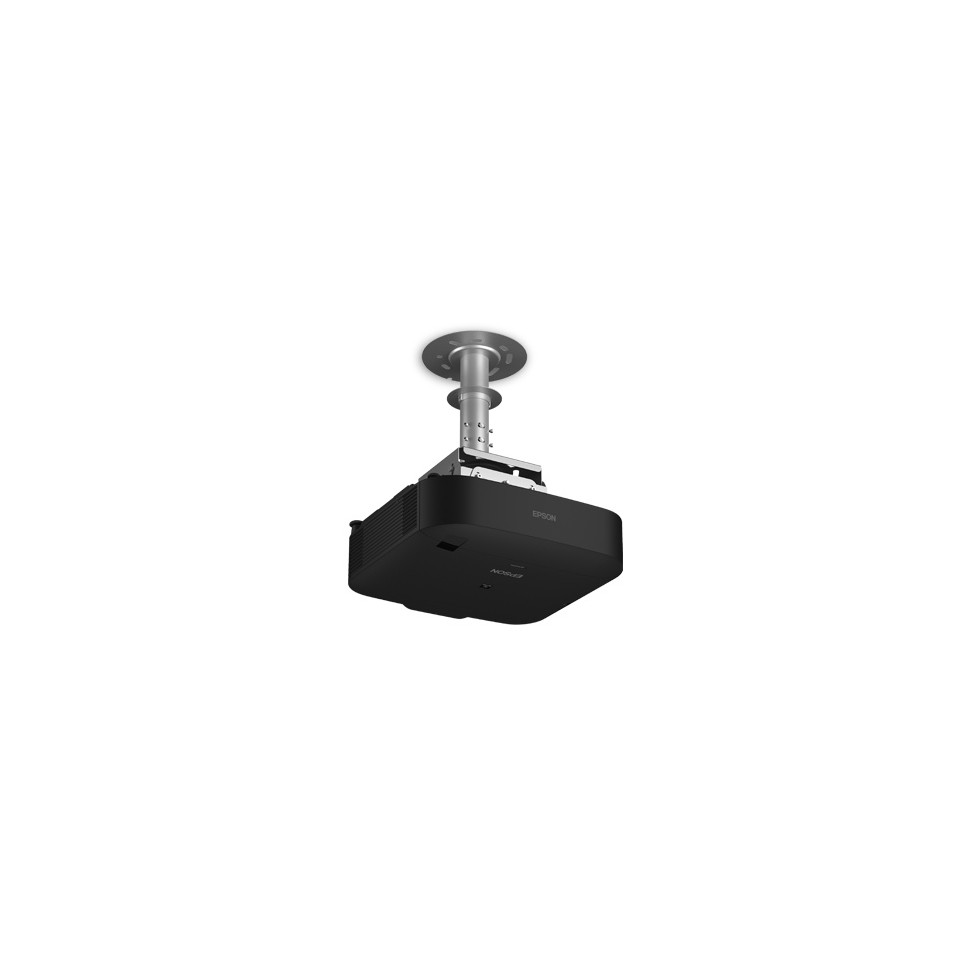

Projector Ceiling Mount (ELPMB67)

Fine Adjust Ceiling Mount (ELPMB68)

PixAlign Camera (ELPEC01)
