Enjoy crisp visuals and easy setup with Epson EB-W56S projector, designed for flexible workspaces and classrooms.

Take control of your presentations with Epson’s reliable, high-performance EB-W56S business projector. Whether you’re leading a boardroom meeting or teaching in a busy classroom, this projector deliver crystal-clear visuals that make your content shine. Flexible, user-friendly, and built to impress– Epson EB-W56S is your smart choice for impactful presentations, every time.

=        3LCD technology for bright, vivid image quality

=        3,700 lumens of colour and white brightness

=        WXGA resolution for clear, detailed images

=        Auto Vertical Keystone & Horizontal Slide Keystone

=        Built-in 16W speakers

=        Optional Wireless Capability

WXGA Resolution

Displaying clear and crisp visuals thanks to its WXGA resolution, the Epson EB-W56S’s high resolution is able to support vivid display on large screen sizes.

Easy Maintenance and Longer Lamp Life

A long lamp life reduces maintenance and costs. The lamp will last up to 17,000 hours in ECO mode. Cut down on the frequency of lamp replacements, saving you time and money, and lowering the total cost of ownership.

Various Interfaces

Epson business projectors support a wide range of connectivity options. These interfaces support connections to both the latest digital devices as well as the existing legacy of analogue products without the need for adaptors.

WPA2/WPA3-Enterprise

WPA2/WPA3-Enterprise provides a safe method of wireless connectivity so that projectors can connect to a business environment over a secure wireless network.

Flexible Display Size

Why settle for smaller screen when you can have more 120" and even up to 300"? EB-W56S supports a variety of aspect ratio and display size up to 300" diagonal.

Split Screen Capability

Use the projector to show 2 different images from 2 different devices at the same time using the split screen function. Example, you can now show your presentation on one side while seeing the video on another side.

Specifications:

Projection Technology:

Projection Technology:

RGB liquid crystal shutter projection system (3LCD)

Brightness:

White Light Output (Normal/Eco):

3,700 lm / 2,000 lm

Colour Light Output:

3,700 lm

Light Output (Center):

3,900 lm

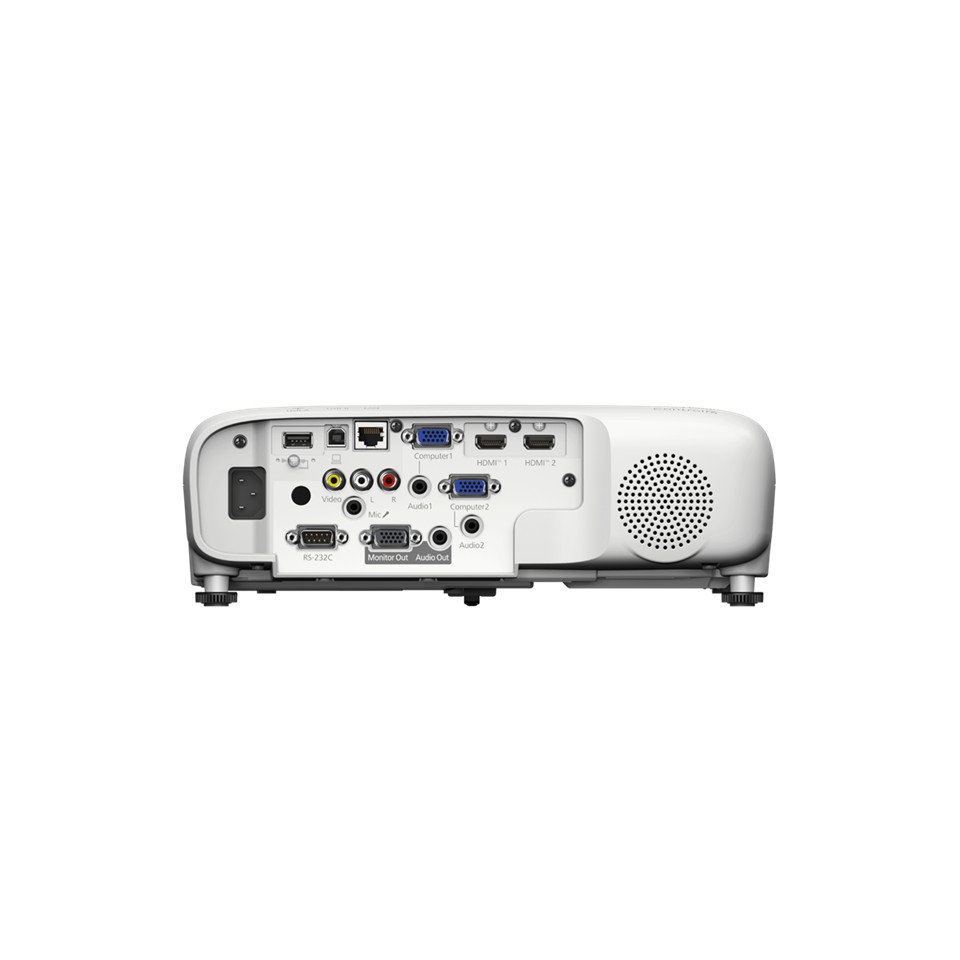

Connectivity:

Network:

Wired Lan : RJ45 x1

Wireless LAN : Optional (with ELPAP11)

Analog Input:

D-Sub 15pin : 2 (RGB, RGB Video)

RCA : 1

Control:

RS-232C : 1

Digital Input:

HDMI Type A : 2 (HDCP 1.4)

Analog Output:

D-Sub 15pin : 1 (RGB, RGB Video)

Audio Input:

RCA : 2

Stereo Mini : 2

Audio Output:

Stereo Mini : 1

USB Input:

USB Type A : 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)

USB Type B : 1 (For Firmware Update, Copy OSD Settings)

Mic Input:

Stereo Mini : 1

Contrast Ratio:

Contrast Ratio:

16,000:1

Screen Size (Projected Distance):

Zoom : Wide:

50” – 300” [0.64 – 3.94 m]

Zoom : Tele:

37” – 222” [0.64 - 3.94 m]

Geometric Correction:

Vertical/Horizontal Keystone:

±15° / ±15°

Operating Temperature:

Operating Temperature:

Low Altitude (0 - 2,286m/7,500ft): 5 - 40 °C <41 - 104 °F>

High Altitude (Over 2,286m/7,500ft): 5 - 35 °C <41 - 95°F>

20% - 80% Humidity, No Condensation

Operating Altitude:

Operating Altitude:

Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:

Start-Up Period:

Less than 7 seconds (Epson Logo); Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period:

Instant Off

Internal Speaker(s):

Sound Output:

Monaural 16W x 1

Weight:

Weight:

Approx. 3.1kg

Air Filter:

Maintenance Cycle:

10,000 hours (Normal) / 20,000 hours (Extended)

Fan Noise:

Fan Noise (Normal / Eco):

38dB / 28dB

Power Consumption (220-240V):

Lamp (Normal / Extended):

Normal : 332 W

Extended : 231 W

Standby (Normal / Eco) :

2.0/ 0.3 W

Direct Power On / Off:

Direct Power On / Off:

Yes

Dimension Excluding Feet:

Dimension Excluding Feet (W x D x H):

309 x 282 x 90 mm

Wireless Specifications (Optional Wireless LAN):

Supported Mode :

Infrastructure, Simple AP (Wi-Fi Direct)

Supported Security Type:

Infrastructure: Open, WPA2 / WPA3-PSK

Simple AP (Wi-Fi Direct): OPEN, WPA2-PSK (AES)

Supported Speed :

IEEE 802.11a/b/g/n

Wired LAN Specification:

Supported Speed for Each mode :

IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX)

Power Supply:

Power Supply Voltage:

100 - 240 V AC ±10%, 50/60 Hz

Specifications of Main Parts:

LCD:

Size : 0.59” (C2 Fine)

Driving Method : Poly-silicon TFT active matrix

Pixel Number : 1,024,000 dots (1280 x 800) x 3

Native Resolution : WXGA

Aspect Ratio : 16:10

Pixel Arrangement : Cross stripe

Light Source:

Lamp Type : 230 W UHE

Life (Normal / Medium / Eco) : 6,500 hours / 10,000 hours / 17,000 hours

Projection Lens:

Type : No Optical Zoom / Focus (Manual)

F-Number : 1.8

Focal Length : 7.8 mm

Zoom Ratio : 1.0 – 1.35 (Digital Zoom)

Throw Ratio : 0.60 – 0.81
