Digital Display Panel

Backlight Type: DLED
Type: ADS
Size: 55”
Resolution: 3840 x 2160
Refresh rate: 60Hz
Color Depth: 1.07G (8 Bits+FRC)
Brightness(Typ.): 350 nits
Contrast Ratio(Typ.): 1200:1
Response Time(Typ.): 8ms
Viewing Angle(Min.): 178°/178°
Color Gamut(Typ.): 85% NTSC
Haze: 25%
Orientation: Landscape & Portrait
Lifetime: up to 30,000 hrs
Operation Hours: 7Day x 16Hour

System

Operating System: Android 9

Memory: 2G DDR4

Storage: 16G EMMC

Language: Simplified Chinese, English, French, German, Polish, Spanish, Russian, Italian, Finnish, Norwegian, Swedish, Hebrew, Arabic, Thai, Malay, Indonesian, Catalan, Japanese

Connectivity

Input:

- HDMI(2.0) x 3

- USB2.0(A) x 2

- RS232(RJ45) x 1

- LAN(RJ45) x 1

Output:

- Audio(3.5mm) x 1

WiFi: 2.4/5.0GHz dual,802.11a/b/g/n/ac

Bluetooth: BT5.1

Environment

Operating Temperature: 0°~40°C
Operating Humidity: 10%~80% Non-Condensing

Power

Power Supply: AC 100~240V (50/60Hz)

Power Consumption (Typ.): 130W

Power Consumption (Max.): 160W

Standby Consumption: <0.5W (Standby Mode)

Speaker

Built in speaker: 10W x2

Physical

Bezel Color: Black

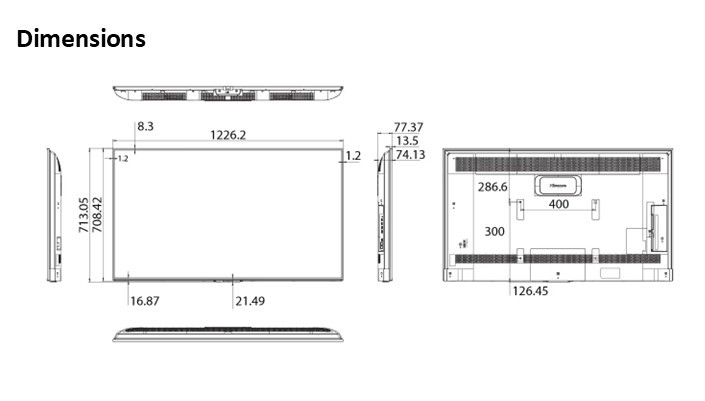

Set Dimension(WxHxD): 1226.2 x 713 x 77.6mm

Bezel width(T/L/R/B): T 8.3mm, L/R: 2.4mm, D: 16.87mm

Net Weight: 12.5kg

Packing Dimension (WxHxD): 1387 x 874 x 152mm

Gross Weight: 18kg

VESA Mount: 400mm x 300mm

Certification

Standard Certification: CB/CE/ERP/SouthAfrica Energy Efficiency/cTUVus/CEC/FCC

EMC: Class B

Enviroment: Energy Star 8.0

IP Rating: IP5X
