Lucky Tone MPRO-130 6 Zone 130W Mixer Amplifier with Zone Volume Control
MYR1550.00
Brand: Lucky Tone
Get shipping estimates
| Country | ||
| State | ||
| Shipping Method | ||
|
|
||
New Class D Desktop Mixer Amplifier
Controls
Front: 4 Input Channel Volume Control and 1 selectable source input Volume control,
Master Volume Control, 6 Zone Speaker Selector with 6 step attenuators.

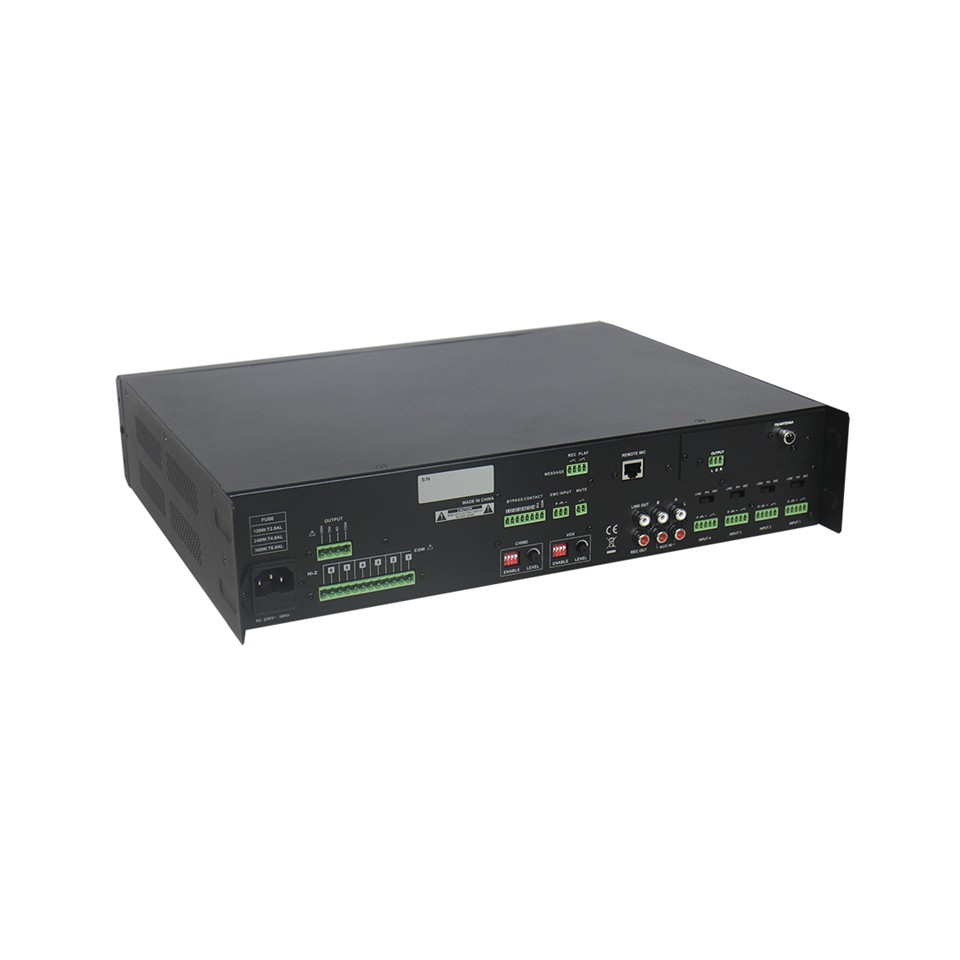

Rear: Talkover Switch ( VOX ) & Phantom Power Switch for Channel 1-4. Chime enable with volume control.
Bypass contact input & system mute.
Connectors
Input: Channel 1 – 4: Electronically Balanced with chime switch.
Aux: Dual RCA.
Remote Mic : Rj45.
Emergency Alarm input : Euro bolck.
Output : Speaker Output : Euro Bock . Attenuated and Switched 6 CH, Direct Output 4Ω, 70V, 100V.
REC Out & Link out : RCA.
Contact : Ext. Chime : Euro block.
MUTE : Euro block.
Media player module : MPlayer A / MPlayer B / MPlayer C.
Indicators : SIG, -10dB, CLIP & Protect. Zone selector.
Protection : Output Current Limiting, Thermal Protection & DC Offset Protection.
Cooling : Convection Cooling.
Option : Rack Mount Kit.
|
Model |
MPRO130 |
|
Rated Power (RMS) |
130W |
|
Input sensitivity / Impedance |
Channel 1-4: -36dB / -10dB Selectable / 20 kΩ Balanced Aux: 0dB / 20 kΩ Balanced Remote Mic: 0dB / 20 kΩ Balanced |
|
Output level / Impedance |
Speaker Hi-z: 100V(83Ω),70V(42Ω) Output Low-z: 22V (4Ω) Rec Out: 0dB / 600Ω Unbalanced Link Out: 0dB / 600Ω Unbalanced |
|
Frequency Response (-3dB) |
65Hz – 18kHz |
|
T.H.D (1kHz, Rated Power) |
<1% |
|
Signal to Noise Ratio |
>80dB |
|
Tone Control |
± 10dB: 100Hz , 10KHz |
|
Power Source |
AC 115 / 230 V, 50/60Hz |
|
Weight (Net) |
9kg |
|
Dimensions (W x H x D) |
420 x88 x 320mm |
