Basic performance

Maximum Connection Distance: 12M

Operating Systems Supported: Win 10/Win 11/Mac OS 10.12 and above

Maximum Startup Time: ≤ 5s

Cold Start Time: ≤ 12s

Maximum Disconnect Time: 1s

Transmission Delay: ≤ 120ms

Maximum Resolution: Default: 1920×1080@30 Hz / Up to 3840×2160@30 Hz

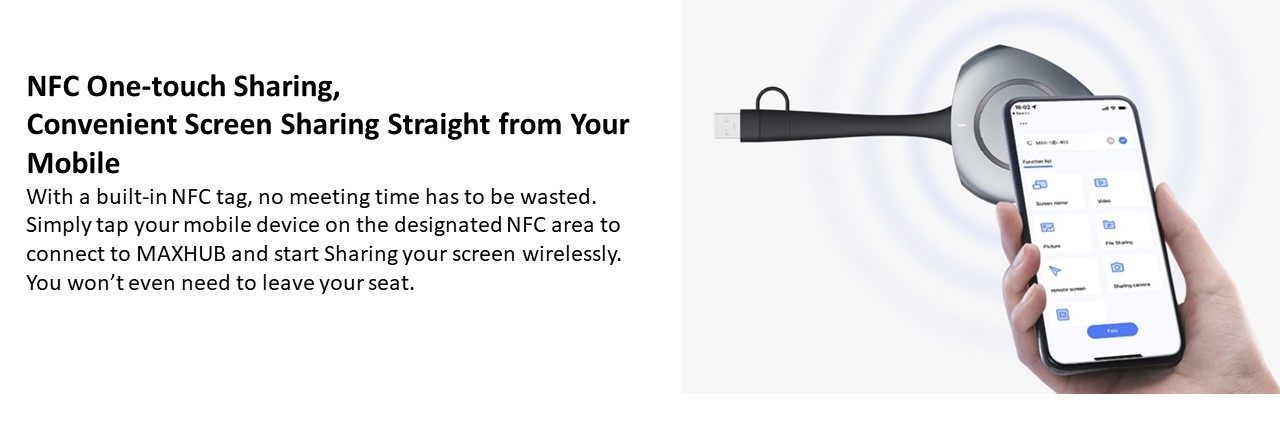

NFC Connect: Supported

Touch Back: Supported

Wi-Fi

Version: 802.11a/n/ac/ax

Working Frequency: 5 GHz

Working Distance: 0~12 m

Interface

USB Type-C: 1

USB Type-A (adapter): 1

Environmental Conditions

Operation Temperature: 0℃~40℃

Operation Humidity: 10%~90%RH

Storage Temperature: -20℃~60℃

Storage Humidity: 10%~90%RH

Physical Specifications

Button: 1

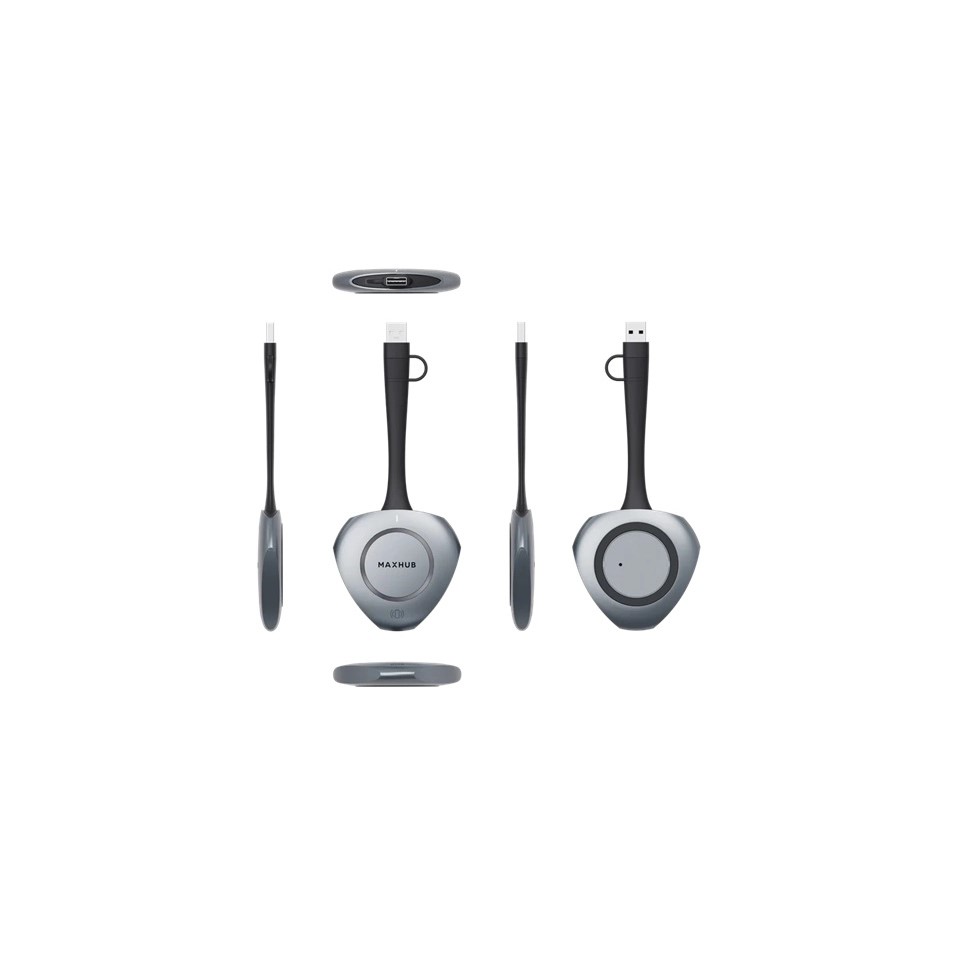

Dimension L×H×W: 171.3×78.7×19.4 mm (6.74x3.10x0.76 inch)

Dimension (package) L×W×H:  1pcs: 196×110×28 mm (7.72x4.33x1.1 inch)

60pcs: 418×356×340 mm (16.46x14.02x13.39 inch)

Net Weight: 75g (0.15 lbs)

Gross Weight: 1pcs: 233g  (0.51 lbs) / 60pcs: 15.5kg (34.17 lbs)

Power

Power Requirements: 5V@500mA

Power Consumption: 2.5W

Warranty

2 years

Compatible BYOM Device

MAXHUB IFP V6 Series

MAXHUB UC S15
