Display

Aspect Ratio

16x10

Native Resolution

WXGA 1280x800

Maximum Resolution

Up to WUXGA (1920x1200) with Advanced AccuBlend

Contrast Ratio (typical)

16,000:1

Synchronization Range

Horizontal (Analog/Digital)

15-100kHz (RGB: 24kHz or over)

Vertical

50-120Hz

Signal Compatibility/Connectivity

SD/HD Video Signal Compatibility

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

PC Signal Compatibility

VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA

Macintosh Signal Compatibility

Yes

External Control

RS-232 (D-Sub 9pin), IR, LAN

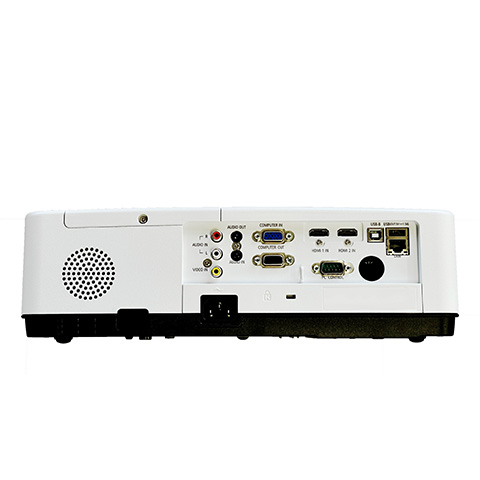

Input Terminals

RGB1(analog): VGA 15pin D-sub

RGB1(digital): HDMI w/ HDCP (v2.0)

RGB2(digital): HDMI w/ HDCP (v2.0)

Video 1: RCA

Audio 1: Stereo Mini Jack

Audio 2: RCA (L/R)

Output Terminals

Audio: Stereo Mini Jack

Audio Out: Stereo Mini Jack

Power Consumption (typical)

On

305W

Input Current

3.3-1.3A

Power Requirements

100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD)

Product:

Shipping:

13.6 x 4.3 x 10.3 in. (345 x 108.4 x 261 mm)

17.7 x 7.8 x 15.4 in. (450 x 200 x 390 mm)

Weight

Net Weight:

Shipping:

7.3 lbs. (3.3 kg)

10.4 lbs. (4.7 kg)

Environmental Conditions

Operating Temperature

41-104°F / 5-40°C

Operating Humidity

20 to 80% Humidity (Non-Condensing)

Storage Temperature

14-122°F / -10-50°C

Storage Humidity

20 to 90% Humidity (Non-Condensing)

Limited Warranty (parts & labor)

Registered owners receive a 3-year parts and labor warranty including InstaCare next business day exchange. The lamp is covered for one year or 1,000 hours, whichever comes first.

Additional Features

=        Wireless LAN (Optional)

=        Keystone correction

=        Cornerstone

=        USB Viewer

=        Quick start

=        Auto power off

=        ECO Mode technology

=        Carbon savings meter

=        NaviSet Administrator2 compatible

=        MultiPresenter compatible

=        Crestron, AMX, PJLink support

=        Advanced AccuBlend

=        AutoSense

Optical

Display Technology

0.64" LCD

Lamp Type

225W AC

Light Output (Lumens)

4,200 lumens

Light Source Life

10,000 hours normal / 20,000 hours eco

Screen Size (diagonal)

30 - 300 in. / 0.76 - 7.62m

Throw Ratio

1.4-1.6:1

Projection Distance

2.9 - 35.9 ft. / 0.9 - 10.9 m

Projector Angle

0 - 9° tele / 0 - 10° wide (at 60")

Lens

Zoom: 1.2x

Focus: Manual

F number, fnumber: F:1.6~1.76 /f=19.158~23.018mm

Keystone Correction

+/- 30° horizontal (manual), +/- 30° vertical (manual + auto)

Mechanical

Installation Orientation

Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

Fan Noise

37dB (ECO mode Off), 29dB (ECO mode)

Regulations

USA: UL (UL60950-1/UL62368-1) FCC Part15 Class B, Canada: CAN/CSA (62368-1-14) ICES-003 Issue 6

Accessories

Included

Remote Control, (2) AAA Batteries

Power Cord

RGB Signal Cable

Optional

Wireless LAN Adapter (NP05LM1)

Replacement Lamp (NP47LP)

Replacement Remote Control (RMT-PJ39)

Custom Ceiling Mount (MP300CM)

Carry Case (NP402CASE)

Lens Adjustment Functions

Manual focus, zoom

Supported Screen Size (maximum)

30 - 300 in. / 0.76 - 7.62m
