Display

Aspect Ratio

16x10

Native Resolution

WUXGA 1920x1200

Maximum Resolution

Up to 4K@30 (HDMI), WUXGA (1920x1200) Analog

Contrast Ratio (typical)

3,000,000:1 (with Dynamic Contrast)

Synchronization Range

Horizontal (Analog/Digital)

15-100kHz (RGB: 24kHz or over)

Vertical

24-85Hz

Signal Compatibility/Connectivity

SD/HD Video Signal Compatibility

480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD

PC Signal Compatibility

VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA

Macintosh Signal Compatibility

Yes

External Control

RS-232 (D-Sub 9pin), IR, LAN

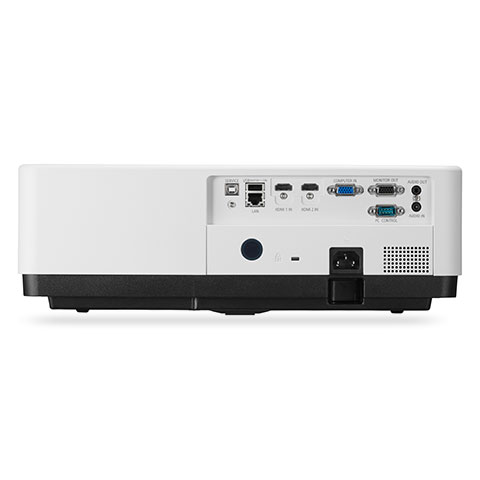

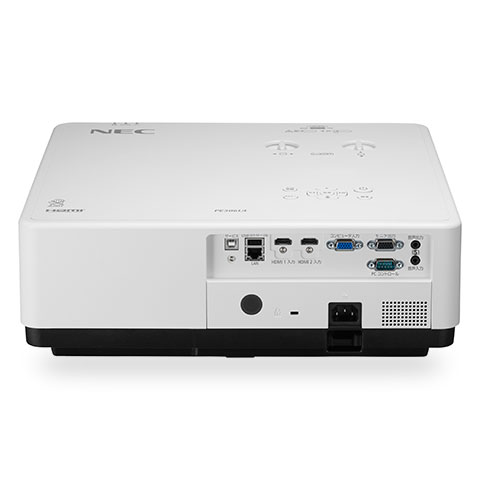

Input Terminals

RGB1(analog): VGA 15-pin D-sub

RGB1(digital): HDMI w/ HDCP (v1.4b)

RGB2(digital): HDMI w/ HDCP (v1.4b)

Audio 1: Stereo Mini Jack

Output Terminals

Audio: Stereo Mini Jack

Audio Out: Stereo Mini Jack

Monitor Out: VGA 15pin D-sub

Power Consumption (typical)

On

TBDA

Input Current

TBDA

Power Requirements

100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD)

Product:

Shipping:

15.9 x 5.4 x 14.7 in. (405 x 137 x 373 mm)

20.1 x 10.2 x 19.7 in. (510 x 260 x 500 mm)

Weight

Net Weight:

Shipping:

17.5 lbs. (7.95 kg)

21.9 lbs. (9.95 kg)

Environmental Conditions

Operating Temperature

32-104°F / 0-40°C

Operating Humidity

20 to 88% Humidity (Non-Condensing)

Storage Temperature

14-122°F / -10-50°C

Storage Humidity

20 to 80% Humidity (Non-Condensing)

Limited Warranty (parts & labor)

Registered owners receive a 5-year parts and labor warranty including InstaCare next business day exchange.

Additional Features

=        Direct power on

=        Auto power off

=        ECO Mode technology

=        NaviSet Administrator2 compatible

=        Crestron, AMX, PJLink support

Optical

Display Technology

0.64" LCD

Light Output (Lumens)

5,200 lumens

Light Source Life

20,000 hours normal / 30,000 hours eco

Screen Size (diagonal)

30 - 300 in. / 0.76 - 7.62m

Throw Ratio

1.22 - 1.98:1

Projection Distance

2.9 - 35.9 ft. / 0.9 - 10.9 m

Projector Angle

0 - 9° tele / 0 - 10° wide (at 60")

Lens

Zoom: 1.6x

Focus: Manual

F number, fnumber: F:1.6~1.76 /f=19.158~23.018mm

Keystone Correction

+/- 30° horizontal (manual), +/- 30° vertical (manual + auto)

Mechanical

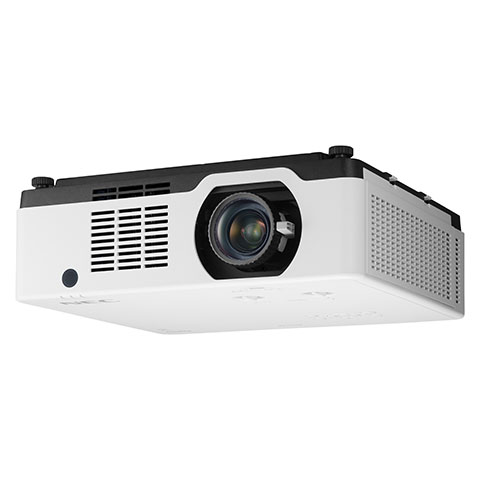

Installation Orientation

Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

Fan Noise

37dB (ECO mode Off), 27dB (ECO mode)

Regulations

USA: UL (UL60950-1/UL62368-1) FCC Part15 Class B, Canada: CAN/CSA (62368-1-14) ICES-003 Issue 7

Accessories

Included

Remote Control, (2) AAA Batteries

Power Cord

RGB Signal Cable

Optional

Replacement Remote Control (RMT-PJ39)

Custom Ceiling Mount (MP300CM)

Lens Adjustment Functions

Manual focus, zoom, shift

Supported Screen Size (maximum)

30 - 300 in. / 0.76 - 7.62m
