TECHNICAL SPECIFICATIONS

Aspect Ratio : 16:9 (native), 4:3 and LBX compatible
Audio : NuForce 40W Dolby Digital 2.0 soundbar with 2 full range aluminum drivers, 2 woofers and ported chambers. Sound effects: Movie, Music, Sport, Game, Night Bluetooth speaker mode support
Brightness : 3,000 ANSI lumens
Color Wheel : RGBYRGBY 8 segment color wheel

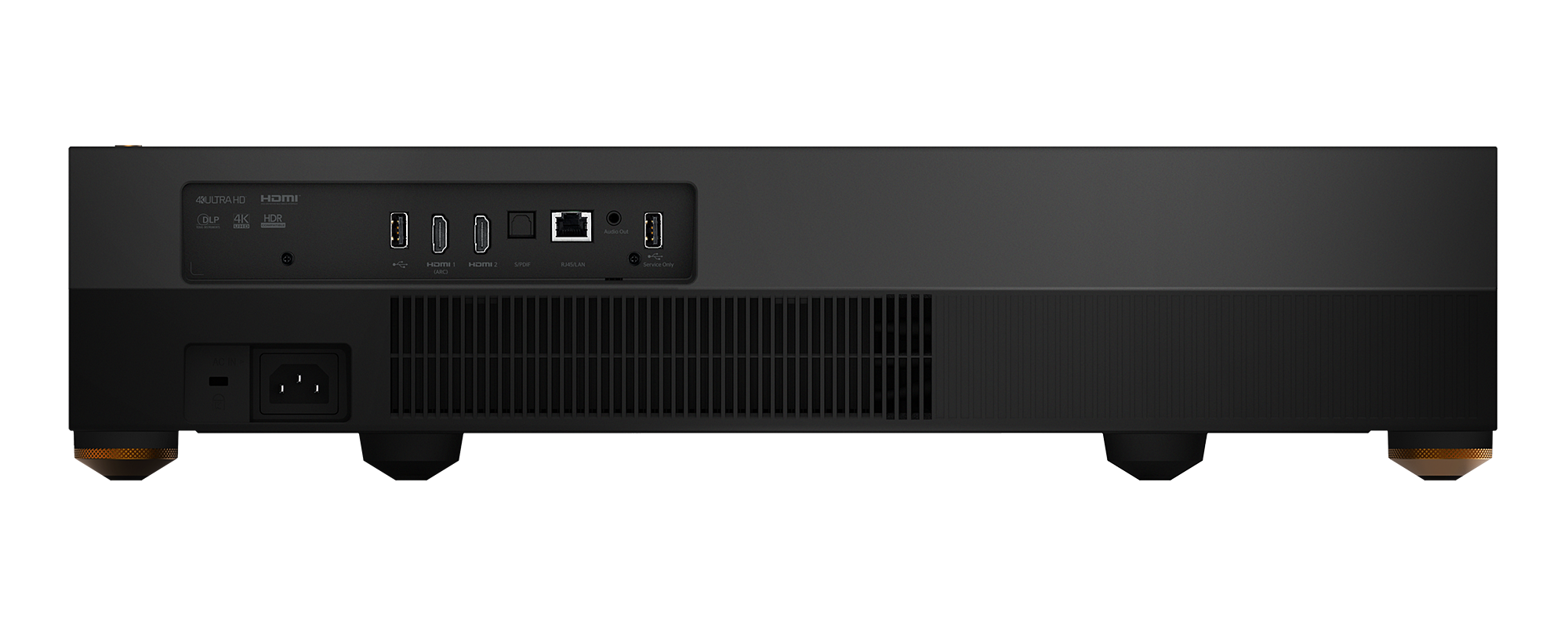

Connections : 1x HDMI 2.0 (HDCP 2.2), 1x HDMI 2.0 (HDCP 2.2, HDMI-ARC), 1x HDMI 2.0 (HDCP 2.2, side), 1x USB 2.0 (4K media player), USB 2.0 power (side), USB, optical S/PDIF out, audio out, RJ45
Contrast Ratio : Up to 1,500,000:1 with Dynamic Black
Display Technology : Single 0.47” 4K UHD ECD DMD by Texas Instruments™
Image Size : 85” – 120”
Light Source : Life Up to 30,000/20,000 hours (Eco/Normal)
Maximum Resolution : 4K (4096 x 2160) @ 30Hz
Native Resolution : 4K UHD (3840 x 2160) @ 60Hz with XPR Technology
Offset : 124% +6%/-2.5%
Operating Temperature : 1–104°F (5–40°C), 85% max humidity
Power Consumption : 410W max (Bright), 360W typical (Bright), 255W max (Eco), 225W typical (Eco)
Power Supply : AC input 100–240V, 50–60Hz, auto-switching
Projection Distance : 8” – 16.5” (from back of projector to projection surface)
Projection Method : Tabletop
Throw Ratio : 0.25:1 (distance/width) – 5% variance
Zoom Type : 0.8 – 2.0x digital

COMPATIBILITY SPECIFICATIONS
3D Compatibility : Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e. 60 or 72 frames per eye). 3D glasses are needed and sold separately.
Computer Compatibility : 4K UHD 2160p, 4K DC, WUXGA, HDTV 1080p, UXGA, SXGA, WXGA+, WXGA (1280 x 800), WXGA, HDTV (720p), XGA, SVGA, VGA, PC and Mac compatible

PHYSICAL SPECIFICATIONS
Dimensions : 22.1” x 5.1” x 15”
Security : Kensington® lock port, password (OSD)
Weight : 24.25 lbs

OTHER
What's in the Box? : CinemaX P1, distance cards, quick start user manual, Bluetooth smart home remote with Airmouse (rechargeable), power cable
Accessories Part Numbers

4K UHD Casting and Mirror Dongle: UHDCast Pro, Bluetooth smart home remote with Airmouse (replacement: BR-3074R),

CinemaX P1 distance cards (replacement): BD-25120
UPC 796435 81 338 3

Warranty Info 2 Year parts and labor limited warranty on the projector, 5-year or 12,000 hour light source warranty (whichever comes first)
