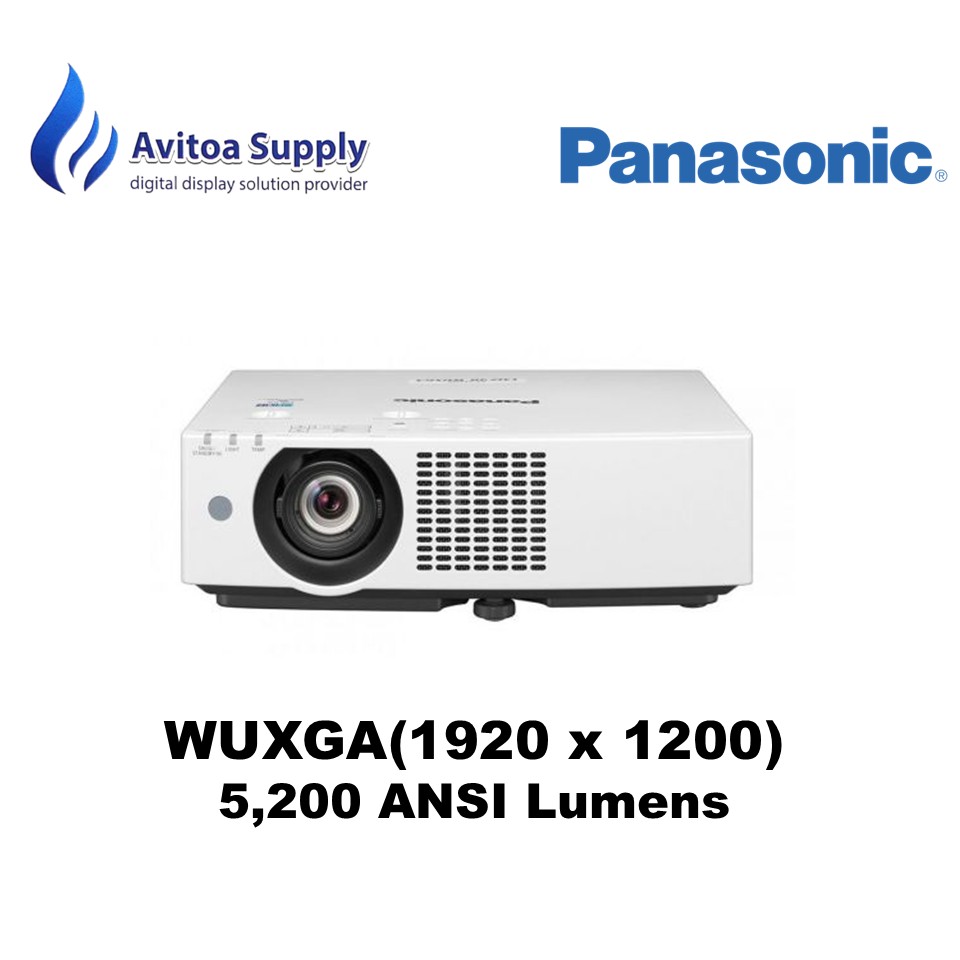

Projector type

LCD Projector

Size

16.3 mm (0.64 in) diagonal (16:10 aspect ratio)

Display system

Transparent LCD panel (x 3, R/G/B)

Drive method

Active matrix

Pixels

2,304,000 (1920 x 1200) pixels

Light source

Laser diodes

Light output

5,200 lm / 5,200 lm (ANSI) / 5,500 lm (Center)

Time until light output declines to 50 %

20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)

Resolution

WUXGA (1920 x 1200 pixels)

Contrast ratio

5,000,000:1 (Full On/Full Off)
(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)

Screen size (diagonal)

0.76–7.62 m (30–300 in), 16:10 aspect ratio

Center-to-corner
zone ratio

85%

Lens

1.2x manual zoom (throw ratio: 1.36–1.64:1),
manual focus lens, F 1.61–1.76, f 19.10–23.00 mm

Digital Zoom Extender

Throw Ratio 1.36–2.05:1 (Corresponding value. When used together with optical zoom.)

Lens shift
(from center of screen)

Vertical +38 %, Horizontal ±15 %

Keystone correction range

Vertical: ±35 ° (Auto, Manual),
Horizontal: ±35 ° (Manual)

Installation

Ceiling/floor, front/rear, free 360-degree installation

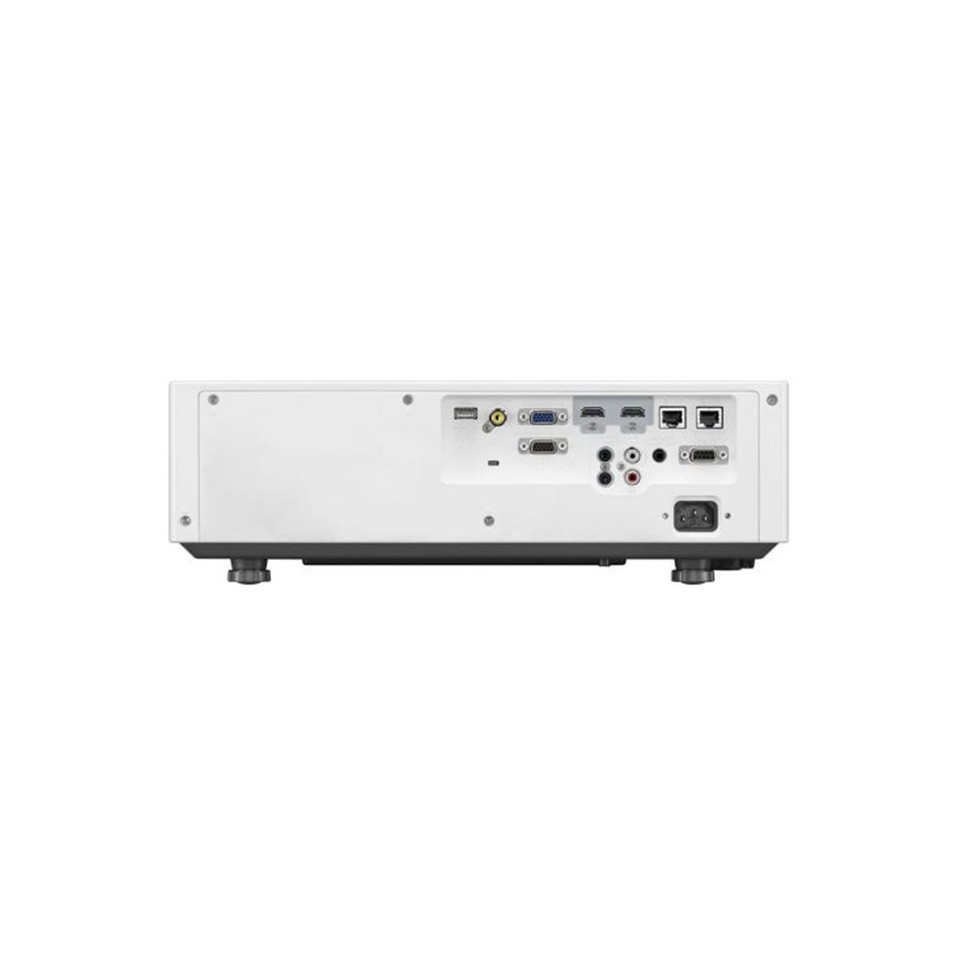

HDMI 1/2 IN

HDMI™ 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p8 signal input), CEC supported

COMPUTER 1/2 IN

-

AUDIO 1/2 IN

M3 stereo mini-jack x 1

VARIABLE AUDIO OUT

M3 stereo mini-jack x 1

SERIAL IN

D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)

LAN/DIGITAL LINK

-

LAN

RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2]

USB (VIEWER/
WIRELESS/DC OUT)

USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,
power supply (DC 5 V, maximum 2 A)

Protocol versions

IPv4, IPv6

Power supply

AC 100–240 V, 50/60 Hz

Maximum power consumption

255 W
(Power consumption is 245 W at 200–240 V)

On-mode power consumption
(Light Power)

[NORMAL] 230 W (100–120 V), 220 W (200–240 V)

[ECO] 170 W (100–120 V), 165 W (200–240 V)

[QUIET] 165 W (100–120 V), 160 W (200–240 V)

Built-in speaker

-

Cabinet materials

Molded plastic

Filter

Included (Estimated maintenance time: approx. 20,000 hours)

Operation noise

36 dB (NORMAL/ECO), 26 dB (QUIET)

Dimensions (W x H x D)

399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (not including protruding parts)
399 mm x 133 mm x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (with feet at shortest position)

Weight with supplied lens

Approx. 6.1 kg (13.45 lbs)

Operating environment

Operating temperature: 0–45 °C (32–113 °F), Operating humidity: 20–80 % (no condensation)

Applicable software

Multi Monitoring & Control Software, Projector Network Setup Software for Windows^® , Presenter Light Software for Windows^®, Wireless Projector App for iOS/Android™
