HARDWARE PLATFORM

Operating System: Android 9.0

CPU: Amlogic A311d, 4xCortex-A73+2xCoretex-A53

GPU: ARM G52 MP4(6EE),OpenGL ES 3.2, Vulkan 1.1 , OpenCL 2.0

Storage: 4G RAM+16GB ROM

Codec: Encoder:H.264/H.265 1 x 1080P@60fps Decoder: VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps AVS2-P2 Profile up to 4Kx2K@60fps H.264 AVC HP@L5.1 up to 4Kx2K@30fps H.264 MVC up to 1080P@60fps

Wi-Fi: IEEE802.11a/b/g/n/ac,WPA,WPA2

Bluetooth: BT 5.0

VIDEO SPECIFICATIONS AND FEATURES

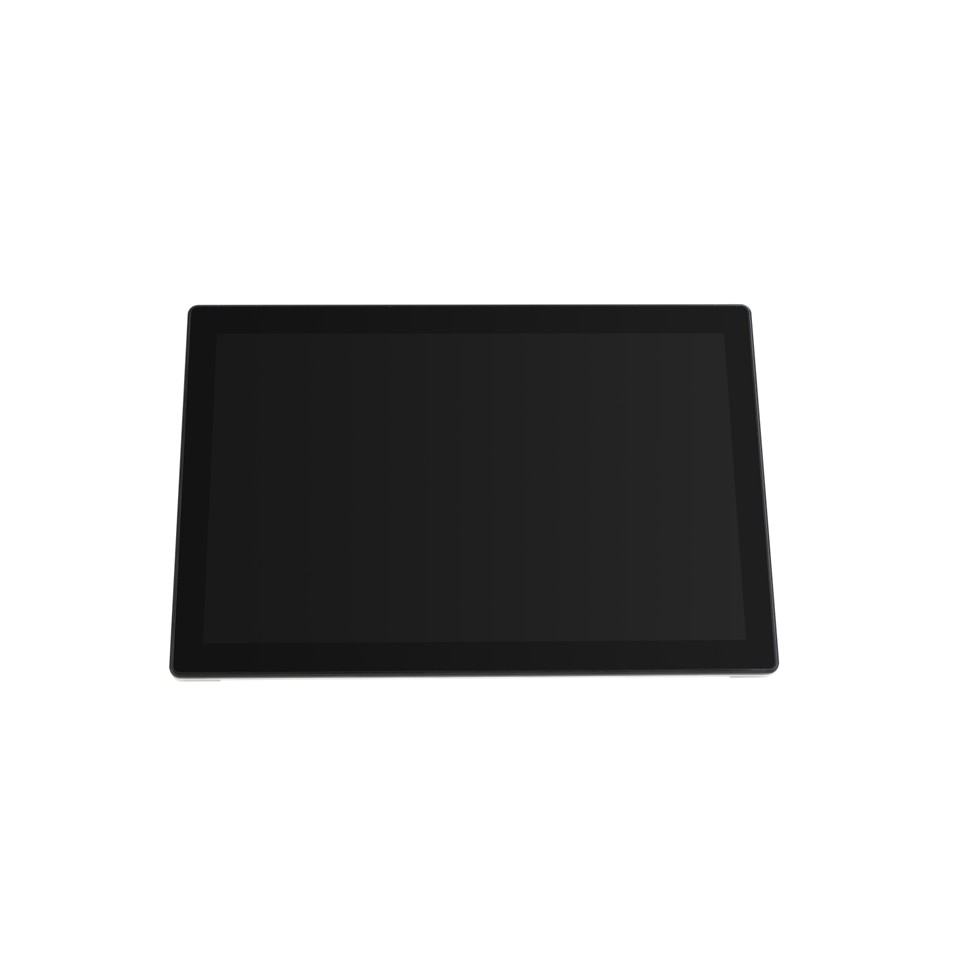

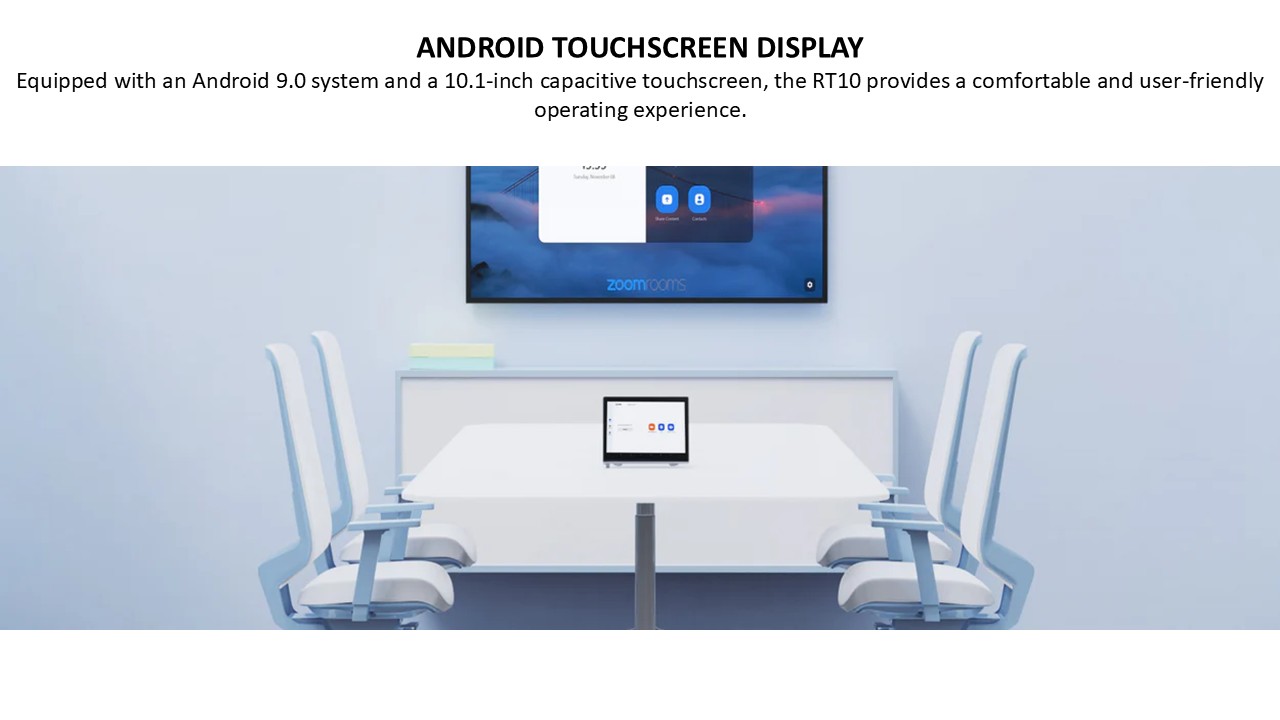

Touch Screen: 10.1-inch IPS touch screen,

Multi-Touch Resolution: 1920×1200 (1280×800 optional)

Visual Angle: 170 degrees

Brightness: 300cd/㎡(typ)

INTERFACE

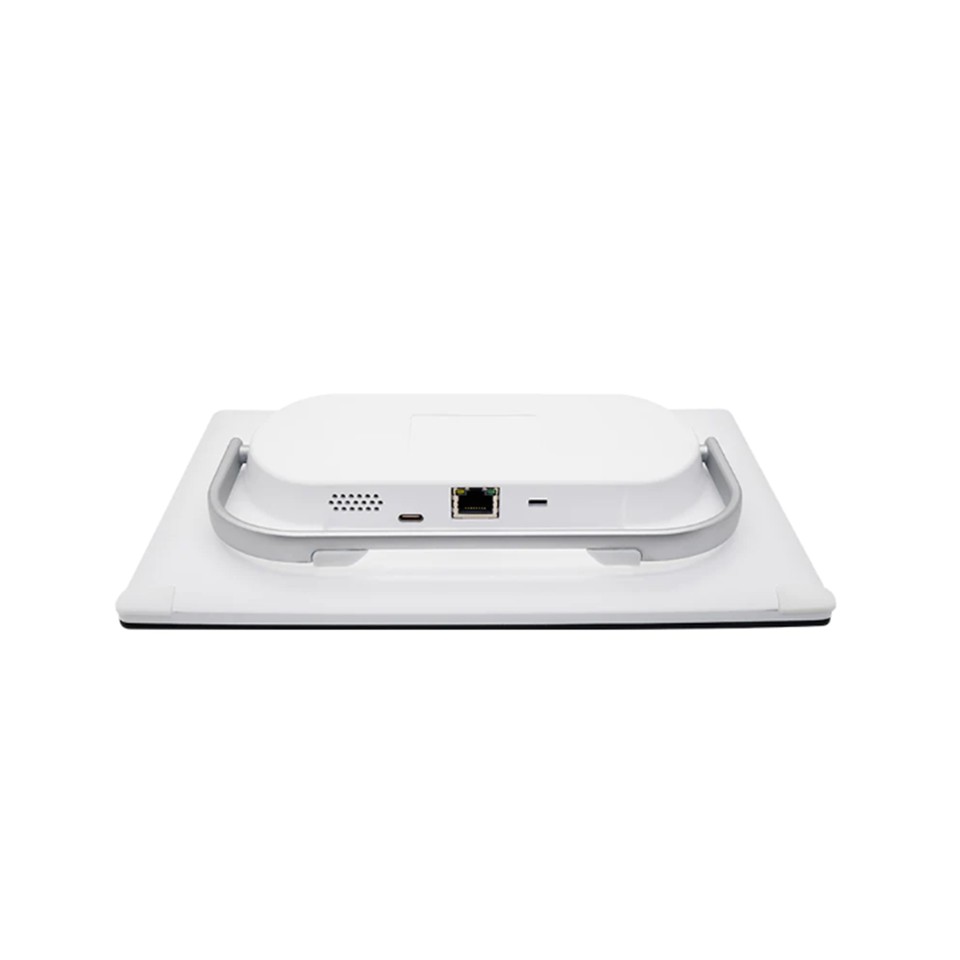

USB Interface: 1 x USB2.0 Type-C (device); 1x USB 2.0 Type-A

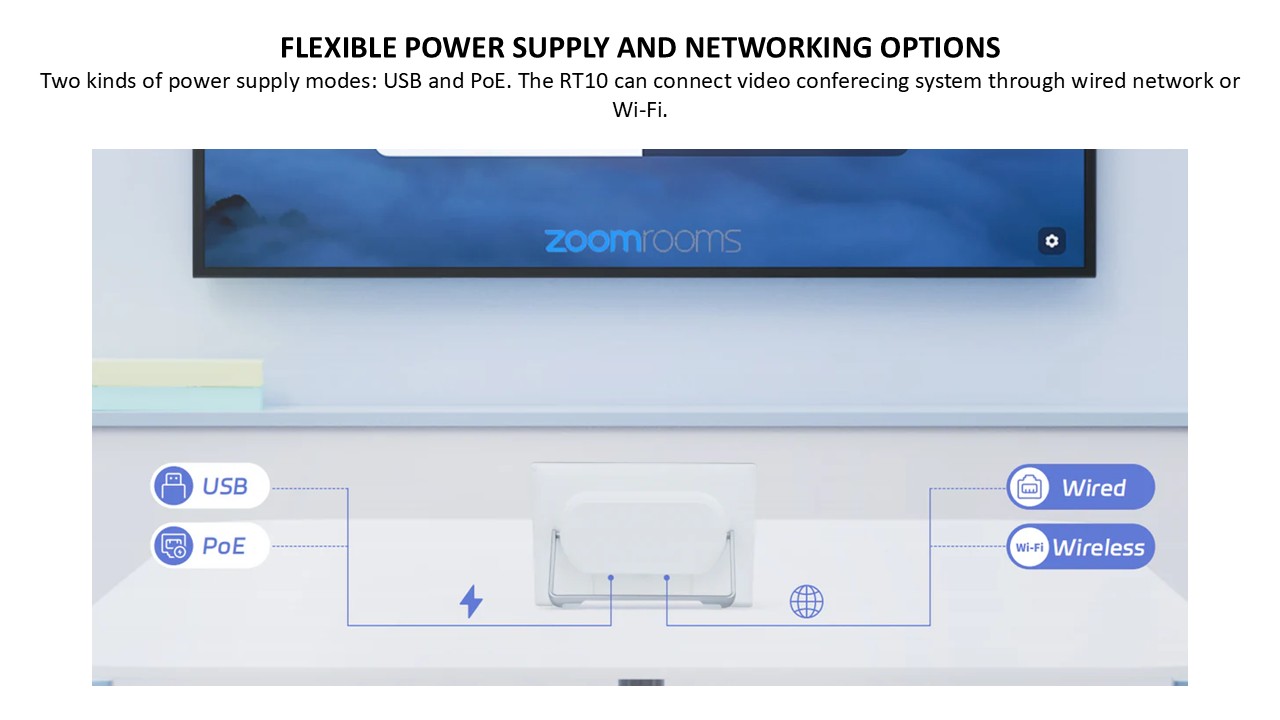

Network Interface: 1 x RJ45: 10/100/1000 Base-T 1 x 2.4G/5G WiFi5

GENERAL SPECIFICATIONS

Dimensions: 243mm (W) × 164mm (D) × 33mm (H)

WIFI Frequency: 2.4G&5G Dual frequency

Microphone: Pickup range of 2 meters

Speaker: 1 × 1.5W

Environmental Specification:

Operating temperature: 0°C to 40ºC

Operating humidity: 10% to 80%

Non-Operating temperature: -40º to -70ºC

Non-Operating humidity (non condensing): 0% to 95%

Approval and Compliance: CQC RoHS
