SPEAKER

Rated Output Power: (10W + 15W) x 2 (+/- 0.5 dB, 10% THD)

Speaker Impedance: 4Ω

Frequency Response: 110Hz - 16kHz / ±3 dB

Loudness 50dB SPL @ 1W, 95dB SPL @ 7.5W

Signal-to-noise Ratio: ≥65dB

Total Harmonic Distortion 300Hz – 10kHz < 1% @ 7.5W

INTERFACE

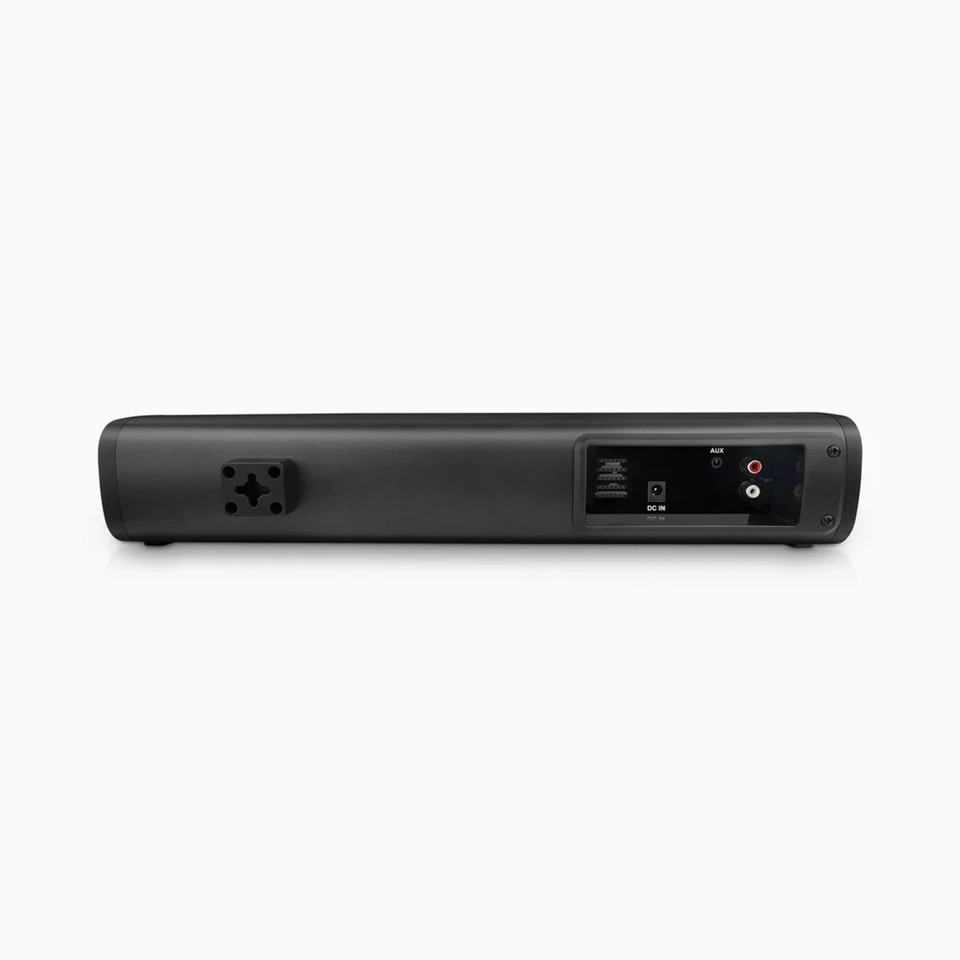

Audio Input: 1x  Line In, 3.5mm Audio Interface

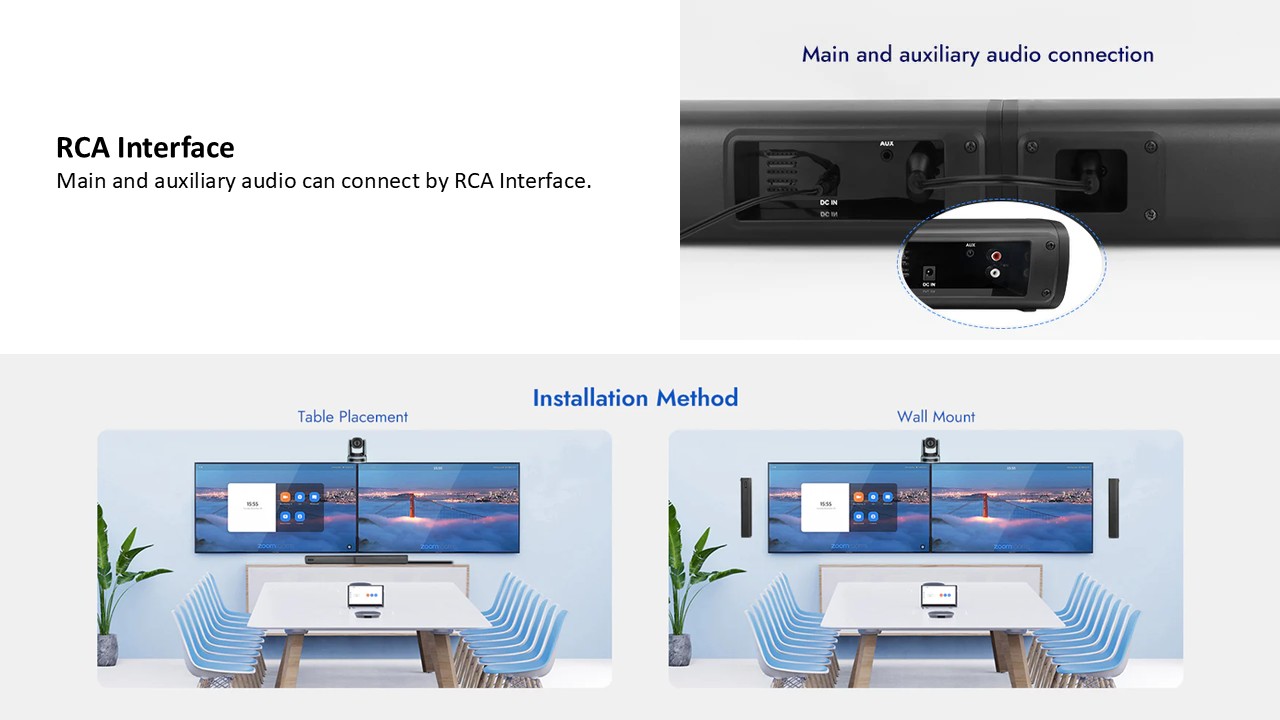

RCA: 1 x RCA, Dual Channel, (Connect the

sub-speaker)

Power: DC 18V

INSTALLATION MODE

Installation Methods: Wall-mounted, Desktop placement

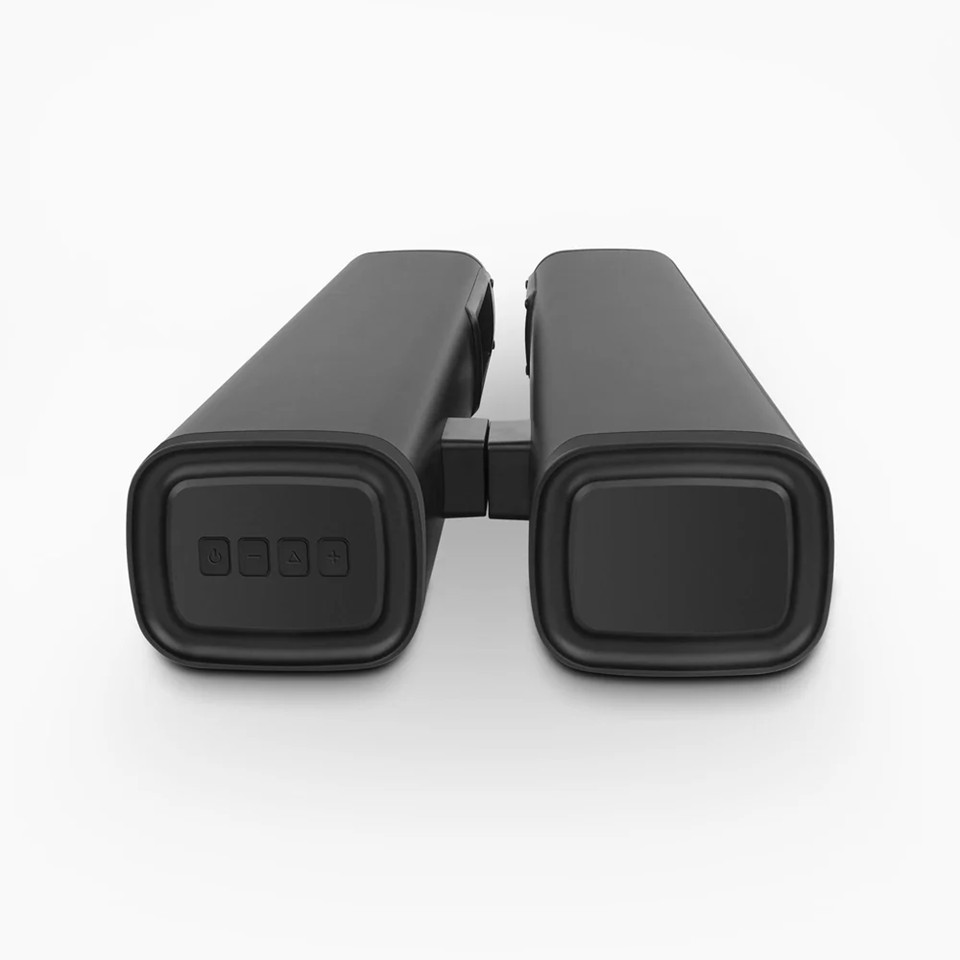

Combined Mode: Separate main and auxiliary units, Integrated main and auxiliary units

GENERAL SPECIFICATIONS

Input Voltage: DC 18V

Input Current: 2A

Operating Temperature: -10°C ~ 40°C

Storage Temperature: -40°C ~ 60°C

Power Consumption: 30W

MTBF: >30000H

Main Unit(W × D × H): 408.5 × 73 × 90mm

Secondary Unit (W × D × H): 402.5 × 73 × 90mm

Dimension (W × D × H): 805 × 73 × 90mm

Weight: 1.5kg

Product Certification: CE, GS, CB, FCC, ETL, SAA, RCM, PSE
