Model Number: V1109A

Product Features:

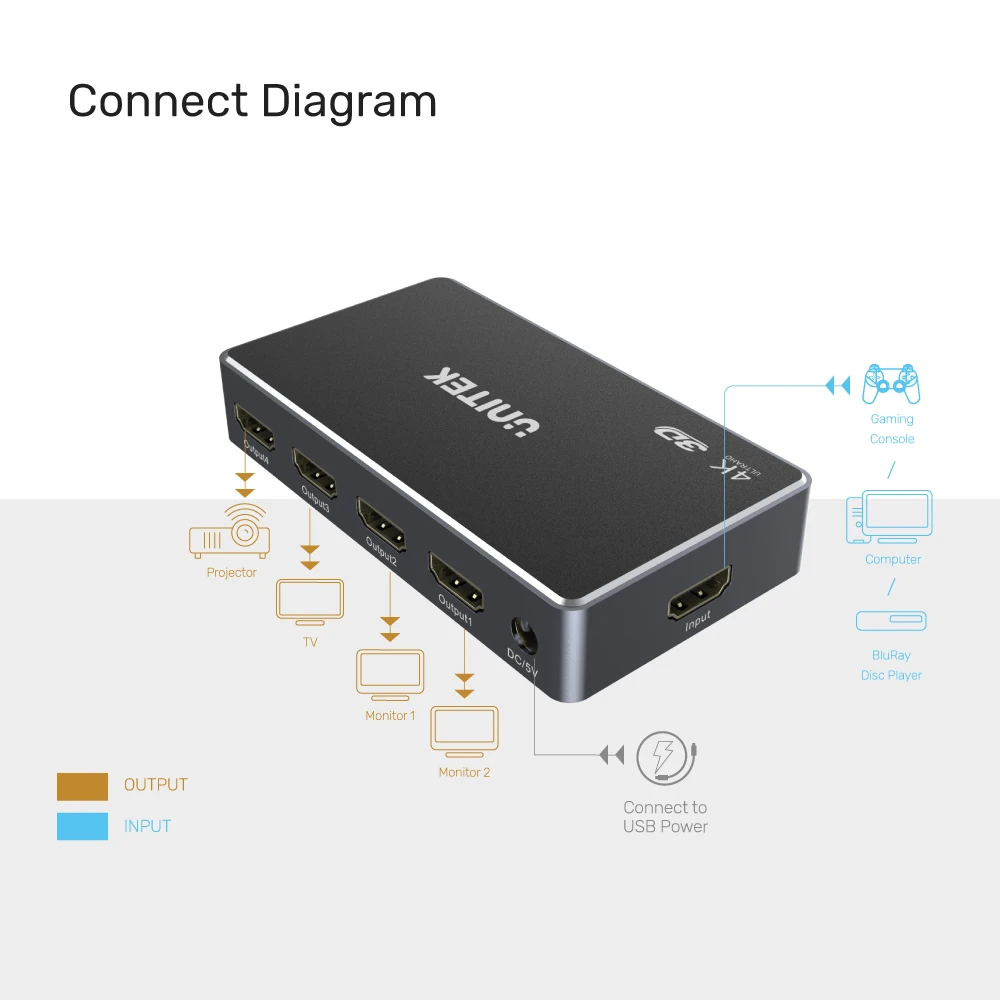

Connects one HDMI source to 4 HDMI displays at the same time.
Supports up to 4K30Hz (UHD) resolution (3840 x 2160) and compatible for 480p, 720p, 1080i, 1080p.
HDMI 1.4b and HDCP 1.3 Compliant.
Supports 12bit Color depth and 3D pass-through.
Compatible with Dolby TrueHD and DTS-HD for uncompressed 7.1 digital surround sound.
Front-panel LEDs for port and power status.

**IMPORTANT: Input HDMI and Output cable not longer than 10M.



Hardware & Dimension:

Product Dimension: 110mm x 60mm x 19.06mm
Color: Space Grey + Black
Upstream: 1 x HDMI
Downstream: 4 x HDMI
DC Dimension: 5V/2A DC5.5mm * 2.1mm

Package Contents:
1 x 4K HDMI Splitter 1 In 4 Out
1 x Power Supply
1 x User Manual

Packaging: UNITEK Gift Box
