Product Overview

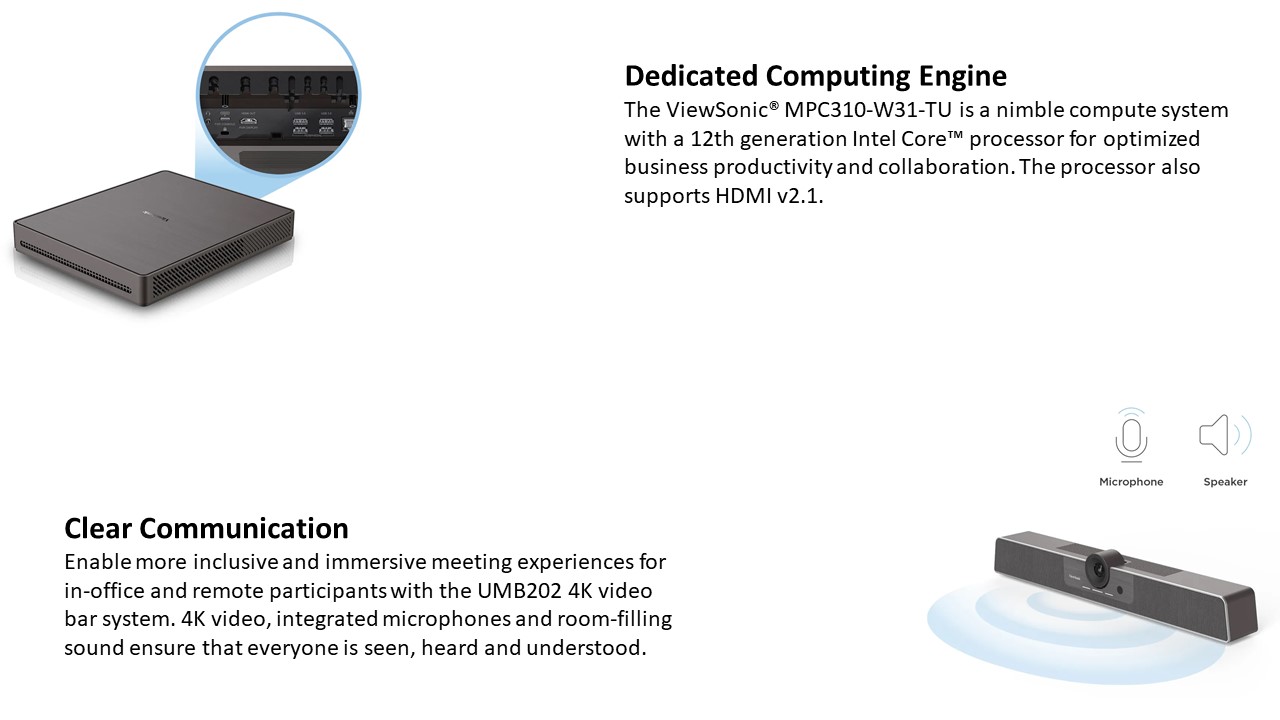

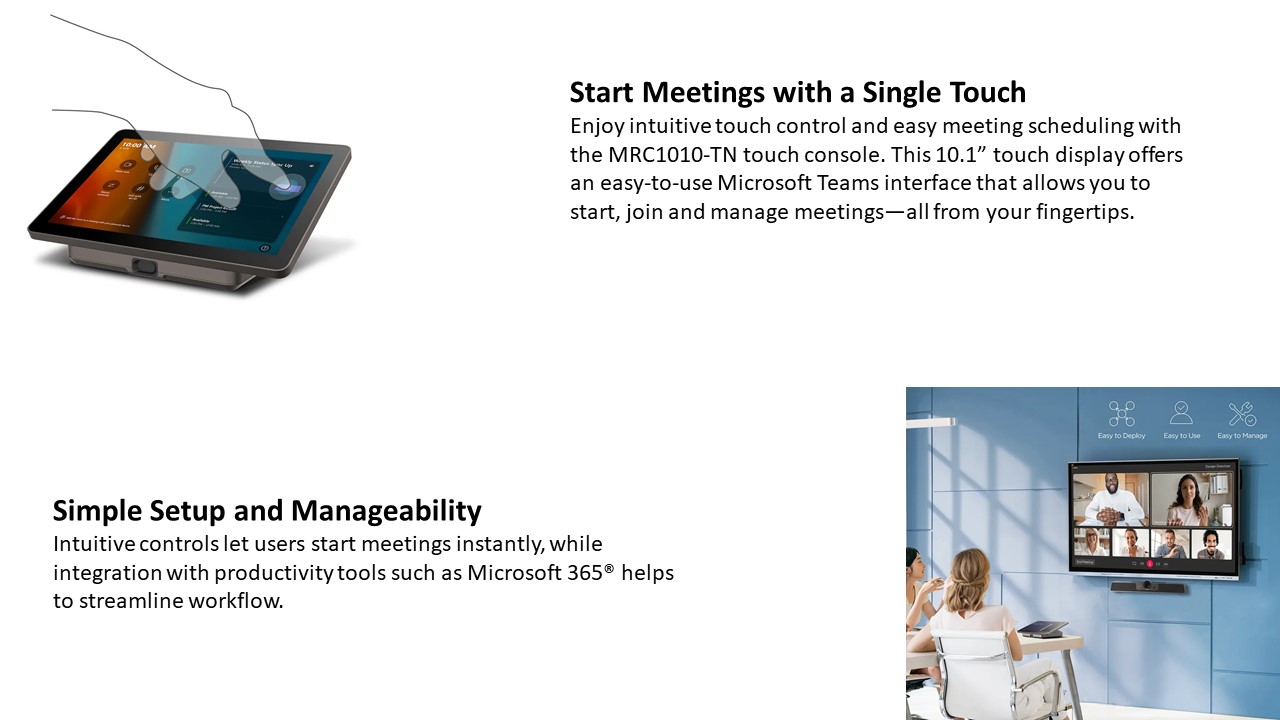

Designed to deliver instant and intuitive collaboration without a complicated setup process, ViewSonic® Microsoft Teams Rooms certified* solutions help to enhance communication, foster collaboration, and promote inclusivity among diverse teams, regardless of their locations. With an included computing engine (MPC310-W31-TU), touch console (MRC1010-TN), and 4K video bar system (UMB202), our Microsoft Teams Rooms certified bundle offers a complete, one-stop solution that can easily scale based on your needs and meeting space size.

*Certification for Microsoft Teams pending - expected completion by second quarter, 2024.

Specifications

MEMORY: 8GB DDR4 3200MHz (4GB module x 2)

Package Contents: Quick Start Guide: x1, VESA mounting bracket: x1, Screws T4x20mm x 4, Power Cord: 1.8M x1

Resolution: 1920x1200

Display Size: 10.1 inch

Brightness: 300cd/m²

Backlight: ELED

Touch: Sensing Type: Capacitance touch recognition / Touch Tool: Finger / Accuracy: Middle：±1 mm；Edge：≤2.5mm / Touch Point: 10 points touch / Touch down latency: <25 ms

Backlight Life: 20,000Hrs

USB Type C: 1

USB 2.0 Type A: 1

USB 3.0 Type C: 2

HDMI Out: 1

Kensington Lock Slot: 1

CPU Processor Type: Intel® i3-1220P

CPU Processor Speed: 1.5GHz, Turbo Boost 4.4GHz, TDP: 28W

Graphics Card: Intel® UHD Graphics for 12th Gen Intel® Processors

Capacity: Storage 128GB SATA SSD (M.2-2280 SATA3 up to 6Gb/s)

Audio Description: Sound Channel: 1.1 / Output Power: 8W speaker, 3W subwoofer / Maximum Sound Pressure: 80dB SPL@1m / Signal to Noise Ratio: >75dB / Frequency Range: 150Hz ~ 18kHz

Microphone: Microphone Quantity: 6 / Voice Pickup Range: 26.24 ft. (8m) / Microphone Frequency: 100Hz ~ 7.5kHz / Noise Reduction: Yes / Echo Cancellation: Yes / Anti-Reverberation: Yes / Built-in AGC Algorithm: Yes

Sensor: 12M pixels / Sony IMX577 1/2.3-inch CMOS / Zoom: 5x digital zoom / Output Format: MPJG; YUY2; H.264 / Field of View: 120° (DFOV), 109° (HFOV), 74.4° (VFOV) / Adjutable Angle: +/- 15° (V) / Focus Mode: fixed-focus / Focus Distance: 3.28 ft. (1m)
