Specification

Projection System: 0.65" 1080p

Native Resolution: 1920x1080

Brightness: 4200 (ANSI Lumens)

Brightness (Center Lumens): 4800

Contrast Ratio: 3000000:1

Display Color: 1.07 Billion Colors

Light Source Type: Laser Phosphor

Light Source Life (hours) with Normal Mode: 20000

Light Source Life (hours) with SuperEco Mode: 30000 (Eco)

Lens: F=2.8, f=7.51mm

Projection Offset: 132%+/-10%

Throw Ratio: 0.496

Optical Zoom: Fixed

Digital Zoom: 0.8x-2.0x

Image Size: 35"-300"

Throw Distance: 0.38-3.29m (100"@1.10m)

Keystone: H:+/-15° , V:+/-15°

Audible Noise (Normal): 30dB

Audible Noise (Eco): 24dB

Input Lag: 49.5ms

Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)

*RB-Reduced Blanking

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Horizontal Frequency: 15K-102KHz

Vertical Scan Rate: 24-120Hz

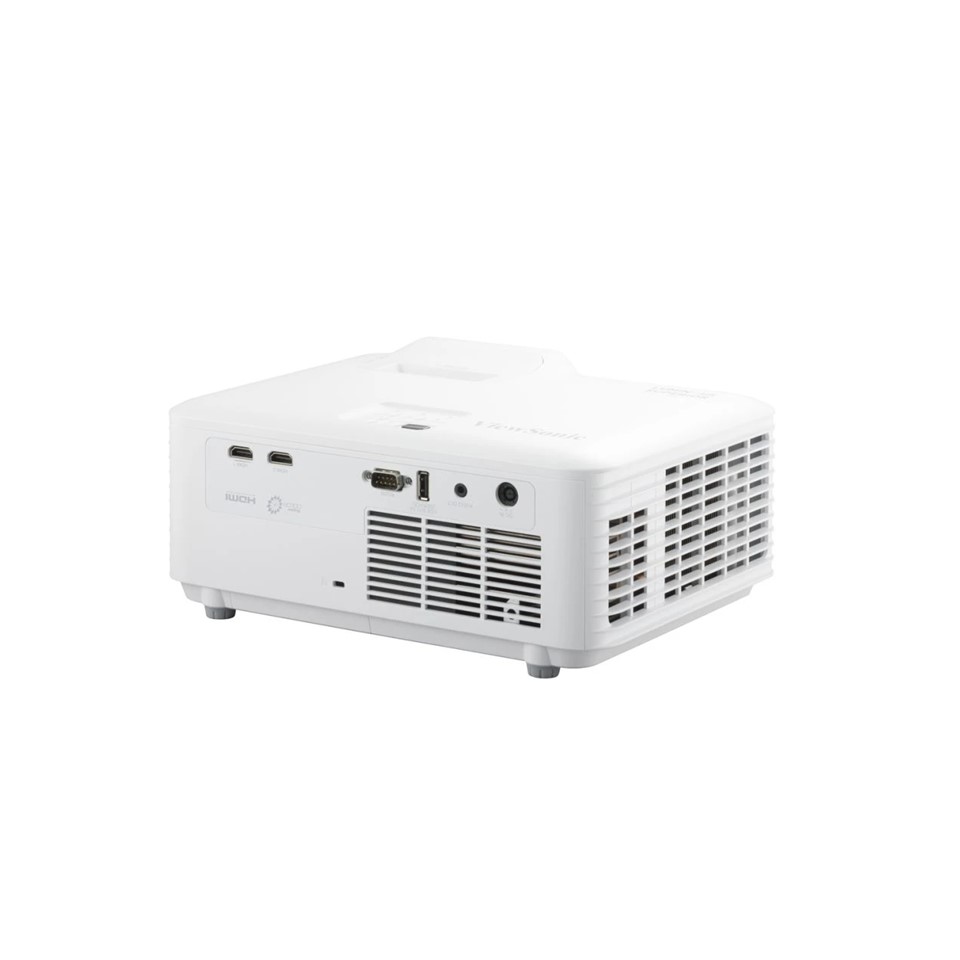

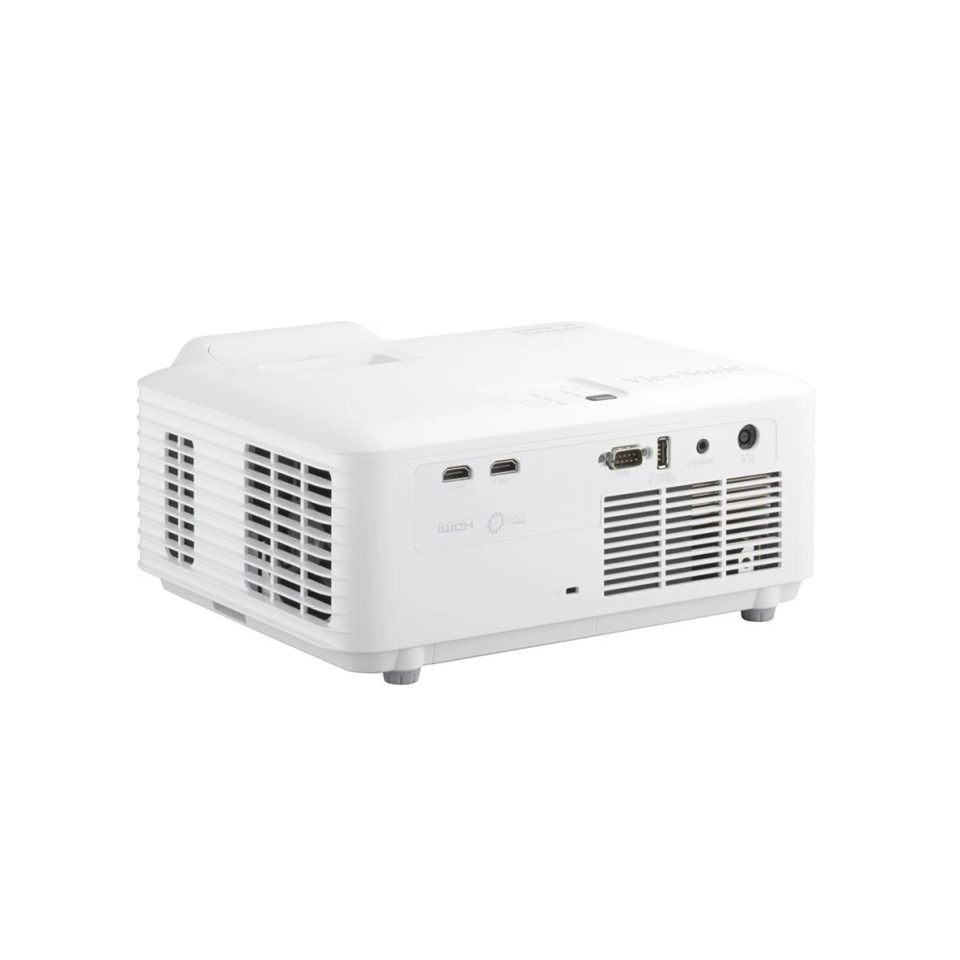

Input

HDMI: 2 (HDMI 1.4/ HDCP 1.4)

Output

Audio-out (3.5mm): 1

Speaker: 15W

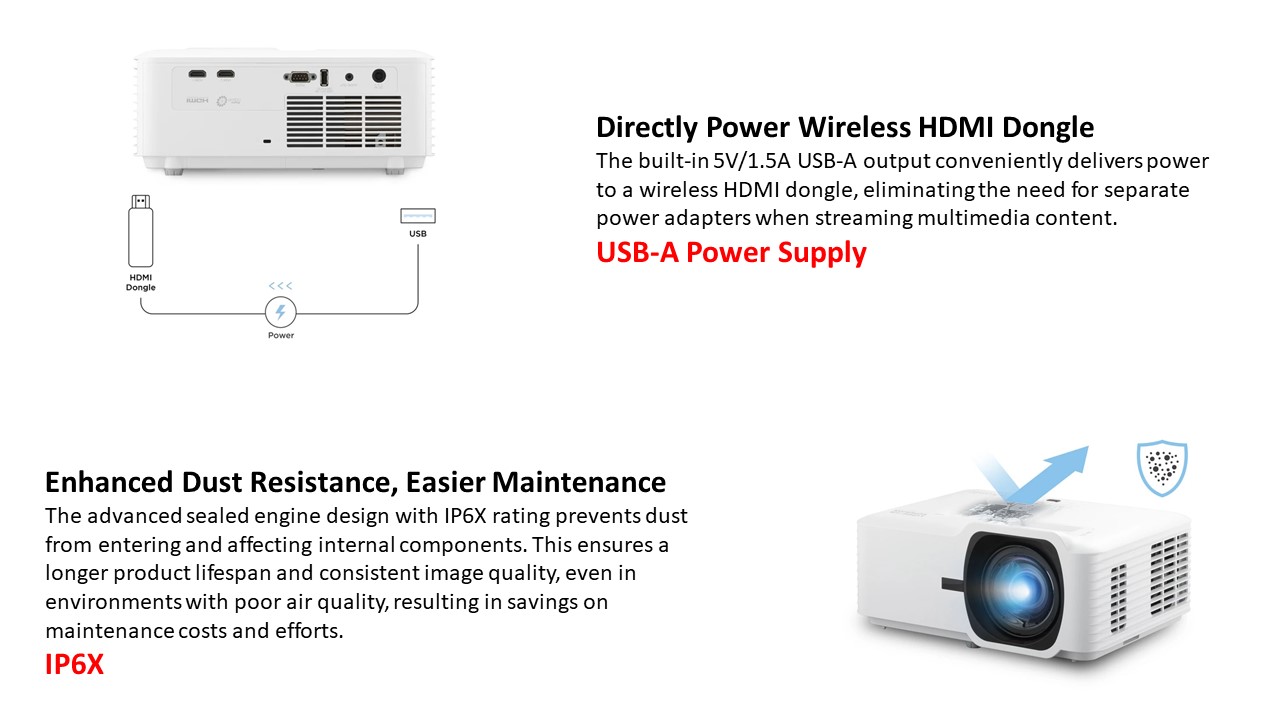

USB Type A (Power): 1 (5V/1.5A)

Control

RS232 (DB 9-pin male): 1

USB Type A (Services): 1

(share with USB A Output)

Others

Power Supply Voltage: Power adaptor

Input: 100~240V

Output: 19.5VDC / 11.79A

Power Consumption: Normal: 210W

Standby: <0.5W

Operating Temperature: 0~40℃

Carton: Brown

Net Weight: 3.15kg

Gross Weight: 4.88kg

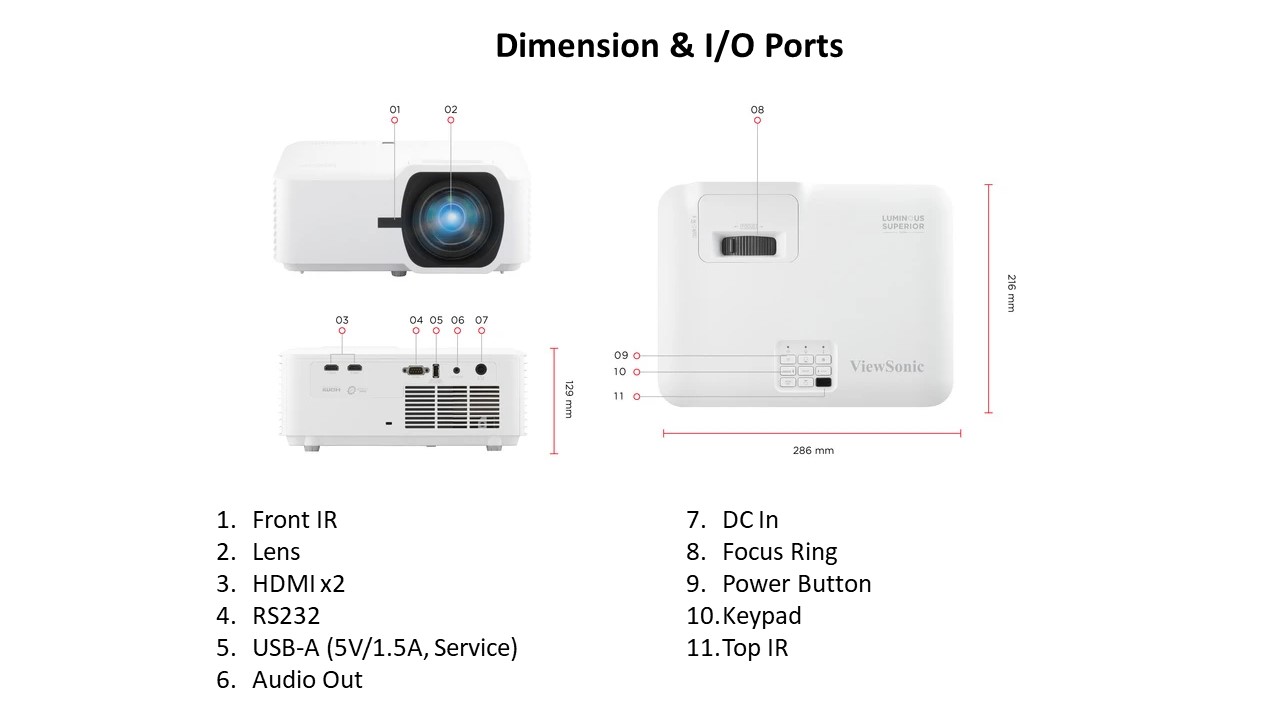

Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm

Packing Dimensions: 400x280x155mm

OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Greek, Norsk. Total 23 languages

User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages

Standard Accessory

Power Cord: 1

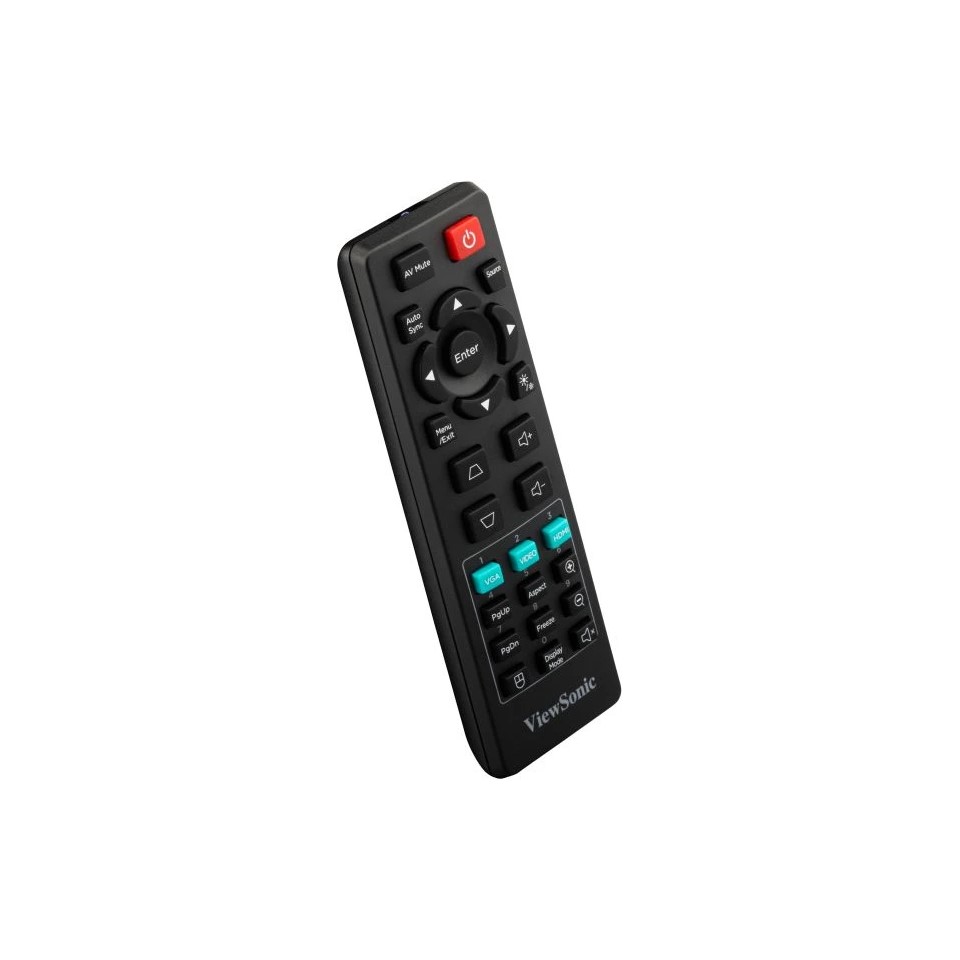

Remote Control: 1

QSG: Yes

Lens Cover: Yes

Warranty Card: Yes (CN Only)

Optional Accessory

Wall/Ceiling Mount: PJ-WMK-007

Carry Bag: PJ-CASE-008
