Specification

Projection System: 0.65" 1080p

Native Resolution: 1920x1080

Brightness: 4000 (ANSI Lumens)

Contrast Ratio with SuperEco Mode: 22000:1

Display Color: 1.07 Billion Colors

Light Source Type: 240W UHP Lamp

Light Source Life (hours) with Normal Mode: 4000

Light Source Life (hours) with SuperEco Mode: 15000

Lens: F=2.5-2.67, f=21.8-24.0mm

Projection Offset: 132%+/-10%

Throw Ratio: 1.48-1.62

Optical Zoom: 1.1x

Digital Zoom: 0.8x-2.0x

Image Size: 30"-300"

Throw Distance: 1m-10m (100”@3.28m)

Keystone: +/- 40° (V)

Audible Noise (Normal): 34dB

Audible Noise (Eco) : 25dB

Input Lag: 16ms

Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)

*RB-Reduced Blanking

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Horizontal Frequency: 15K-102KHz

Vertical Scan Rate: 23-120Hz

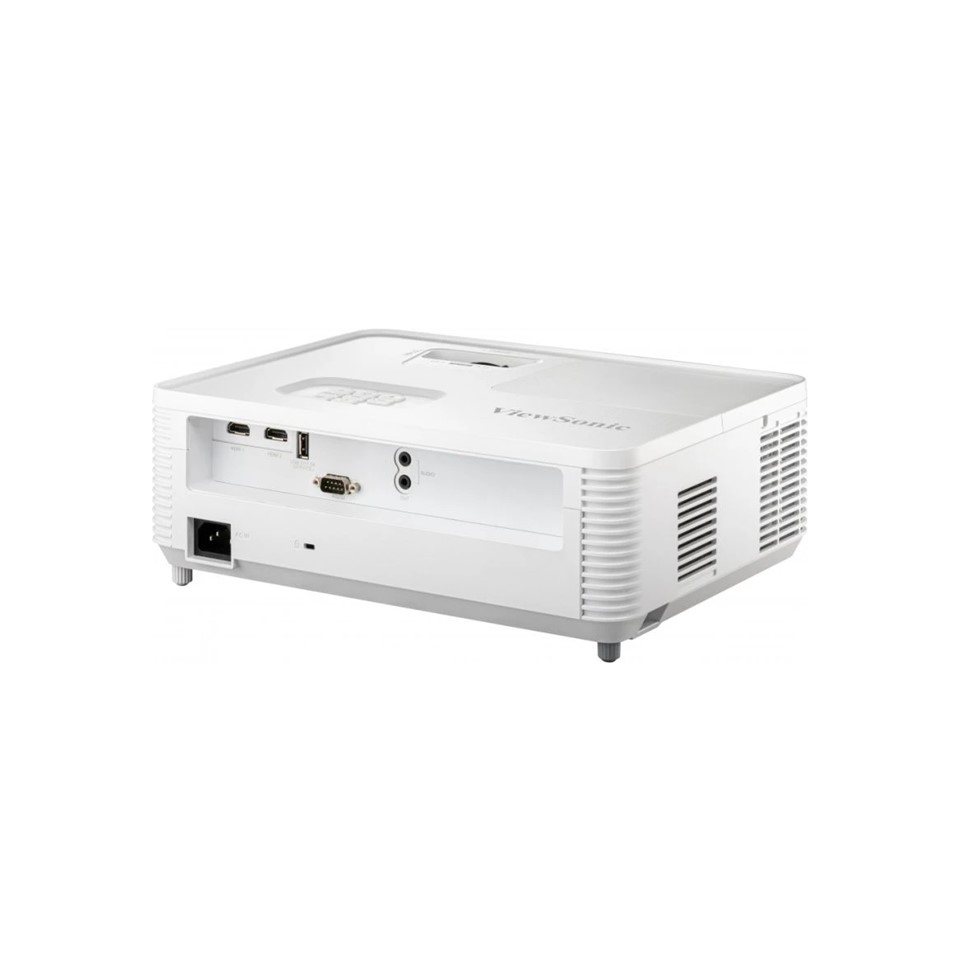

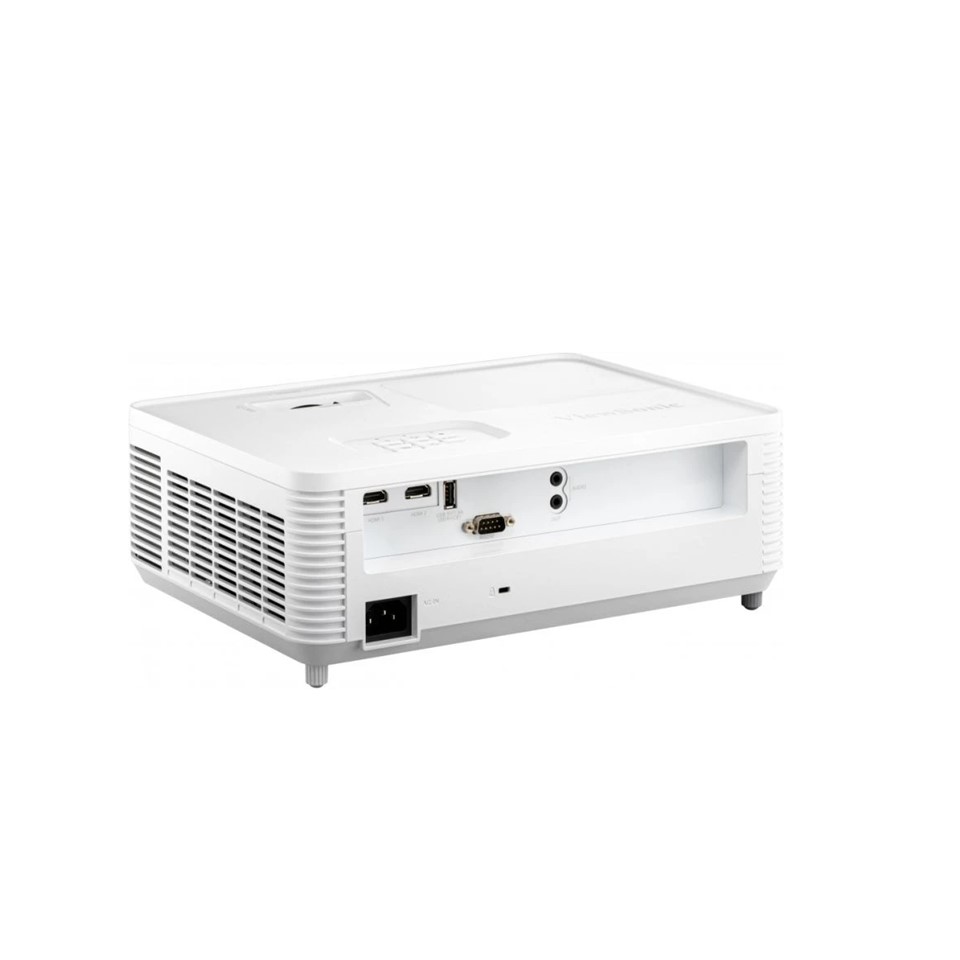

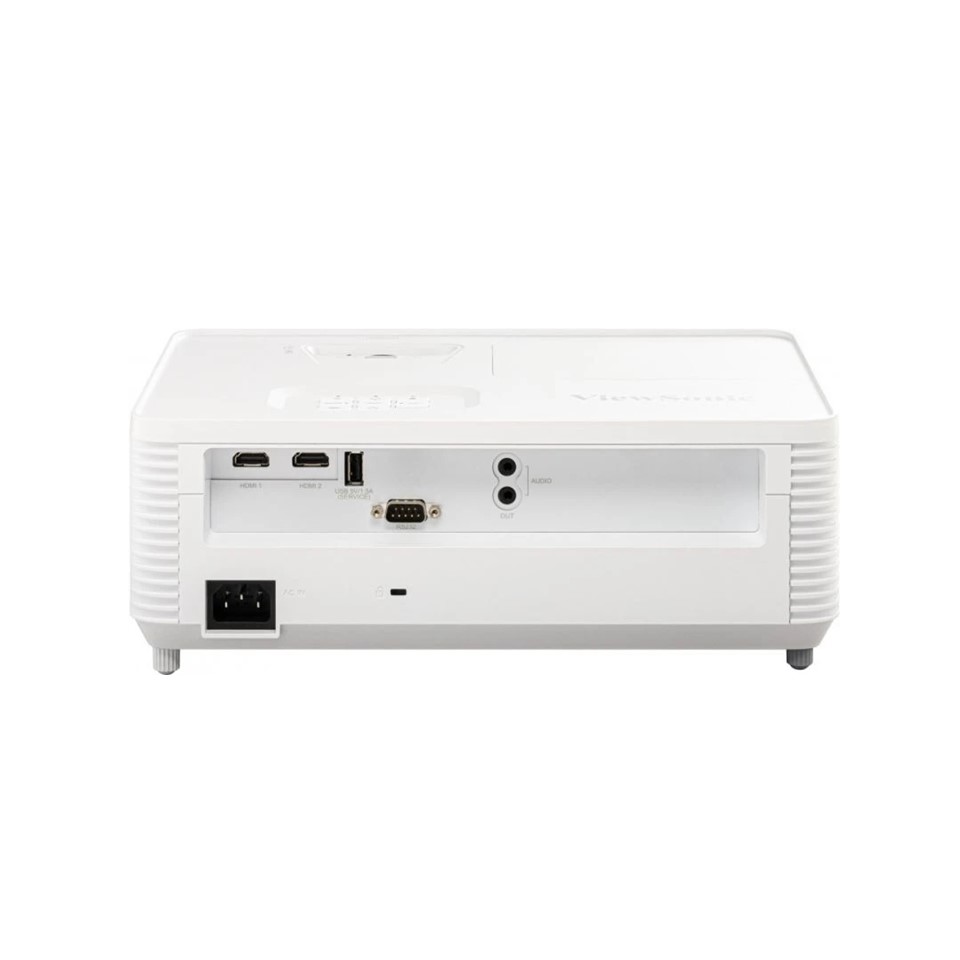

Input

HDMI: 2

(HDMI 1.4/ HDCP 1.4)

Audio-in (3.5mm): 1

Output

Audio-out (3.5mm): 1

Speaker: 3W

USB Type A (Power): 1 (5V/1.5A)

Control

RS232 (DB 9-pin male): 1

USB Type A (Services): 1

(share with USB A Output)

Others

Power Supply Voltage: 100-240V+/- 10%, 50/60Hz (AC in)

Power Consumption: Normal: 295W; Standby: <0.5W

Operating Temperature: 0~40℃

Carton: Brown

Net Weight: 2.70kg

Gross Weight: 3.80Kg

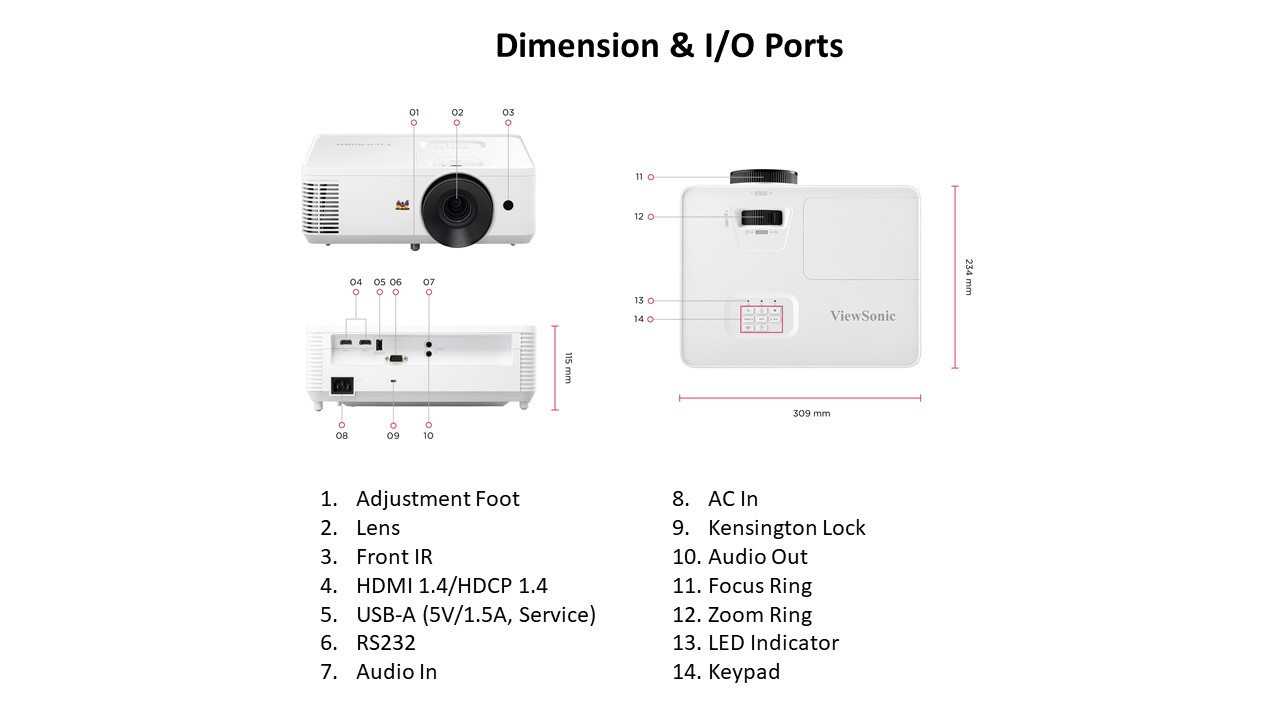

Dimensions (WxDxH) with Adjustment Foot: 309x234x115mm

Packing Dimensions: 400x337x168mm

OSD Language: English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian, Japanese, Total 23 languages

User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, Total 20 languages

Standard Accessory

Power Cord: 1

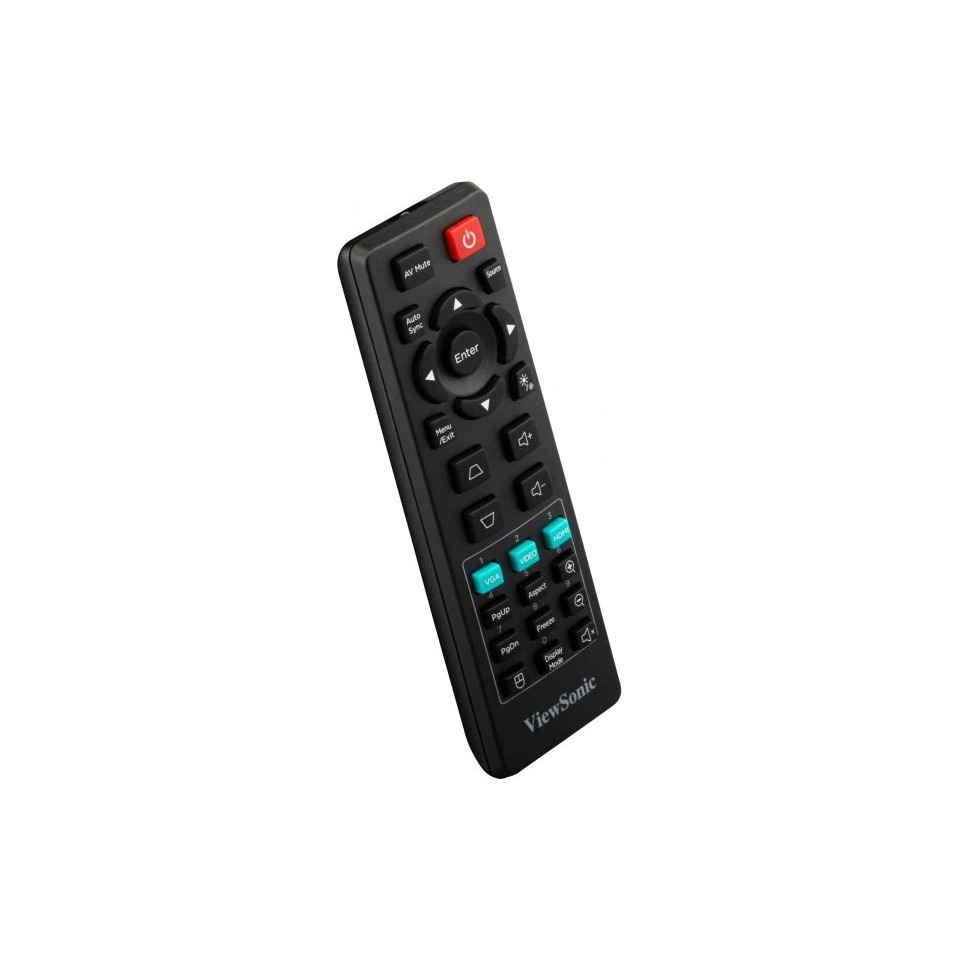

Remote Control: 1

QSG: Yes

Warranty Card: Yes (CN Only)

Optional Accessory

Lamp/Light Source: RLC-129

Air Filter: RSPL

Wall/Ceiling Mount: PJ-WMK-007

Carry Bag: PJ-CASE-008
