Specification

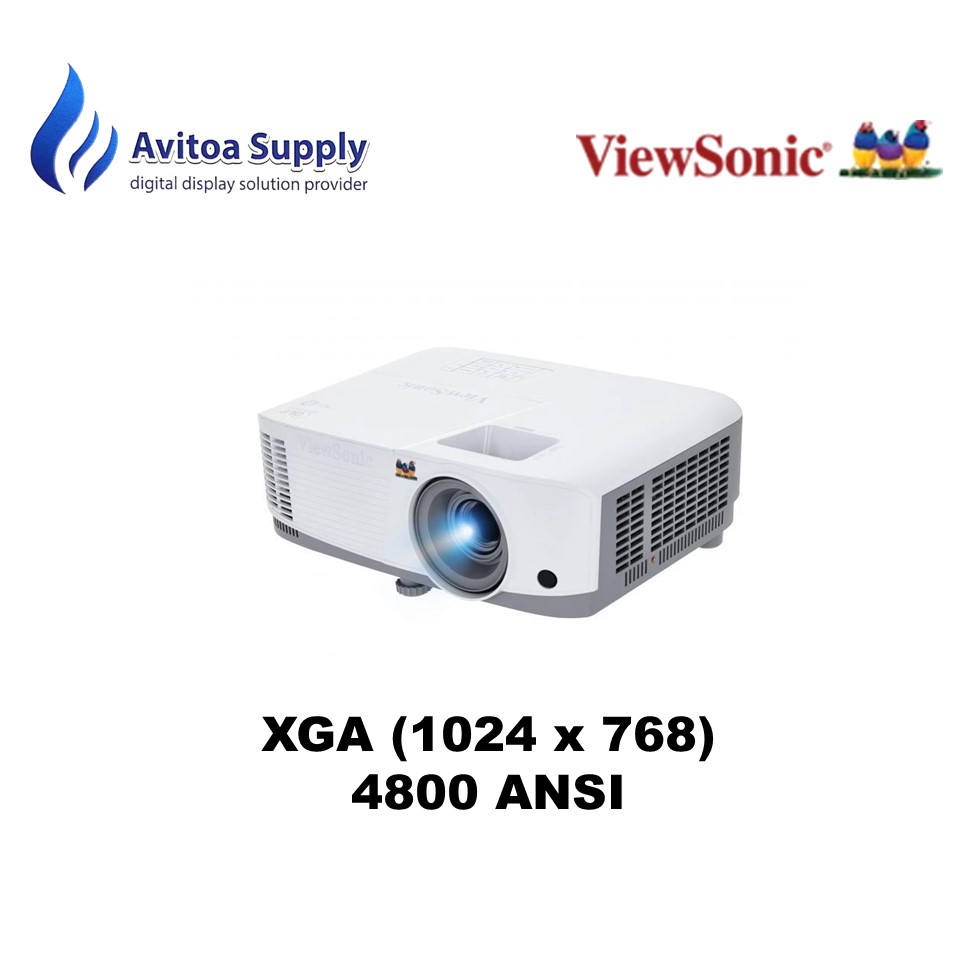

Projection system: 0.55" XGA

Native Resolution: 1024x768

Brightness: 4,800 ANSI Lumens

Contrast Ratio with SuperEco mode: 25,000:1

Display Color: 1.07 Billion Colors

Light Source: Lamp

Light Source Life (hours) with Normal Mode: 5000

Light Source Life (hours) with SuperEco Mode: 15000

Lamp Watt: 190W

Lens: F=2.56-2.68, f=22-24.1 mm

Projection Offset: 120%+/-5%

Throw Ratio: 1.96~2.15

Optical Zoom: 1.1x

Digital Zoom: 0.8x-2.0x

Image size: 30" - 300"

Throw Distance: 1.19m-13.11m(100" @3.98m)

Keystone: ±40° (Vertical)

Audible Noise (Normal): 31dB

Audible Noise (Eco): 27dB

Input Lag: 16ms

Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video Compatibility: NTSC, PAL, SECAM

Horizontal Frequency: 15K~102KHz

Vertical Scan Rate: 23~120Hz

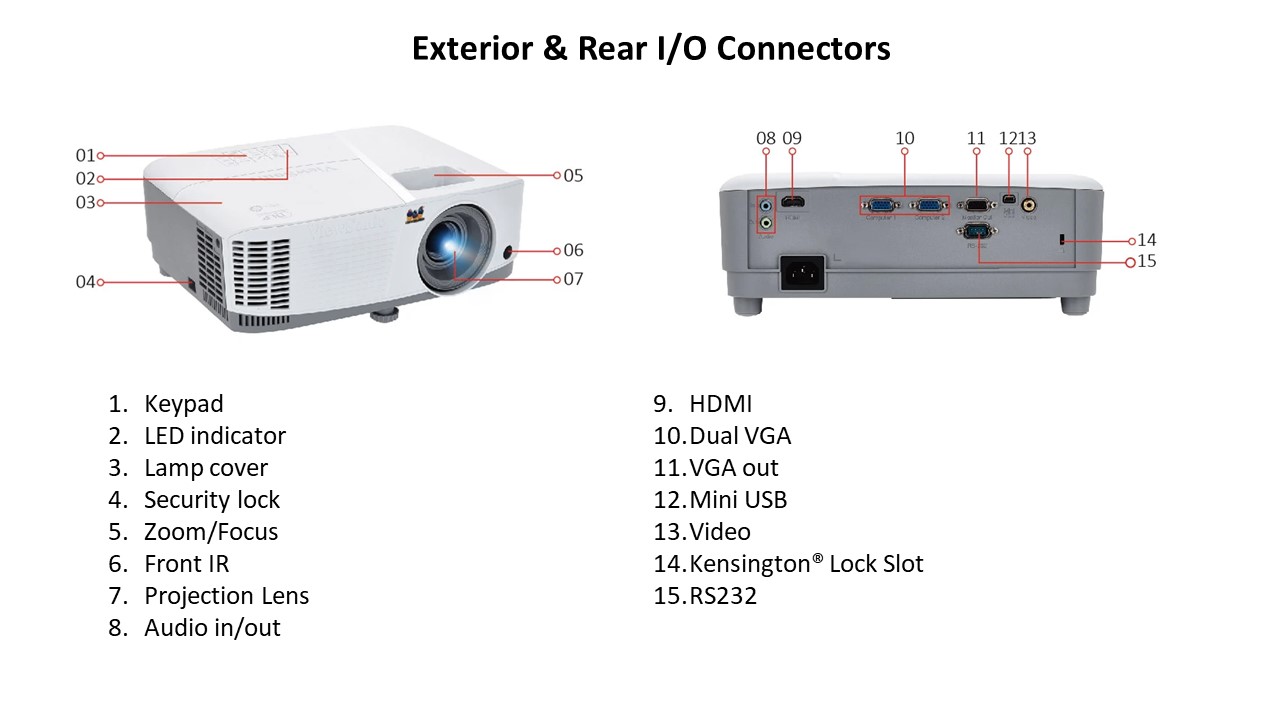

Input

Computer in (share with component): 2

Composite: 1

HDMI: 1 (HDMI 1.4/ HDCP 1.4)

Audio-in (3.5mm): 1

Output

Monitor out: 1

Audio out (3.5mm): 1

Speaker: 2W

Control

RS232: 1

USB type mini B (Services): 1

Others

Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC

Power Consumption: Normal: 260W

Standby: <0.5W

Operating Temperature: 0~40℃

Carton: Brown

Net Weight: 2.2kg

Gross Weight: 3.24Kg

Dimensions (WxDxH) w/adjustment foot: 294x218x110mm

Packing Dimensions: 365x300x188mm

OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese

User Guide Language: English, S-Chinese, T-Chinese, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Total 15 languages

Standard Accessory

Power Cord: 1

VGA cable: 1

Remote Control: 1

QSG & CD: QSG: 1 / CD: NA

Optional Accessory

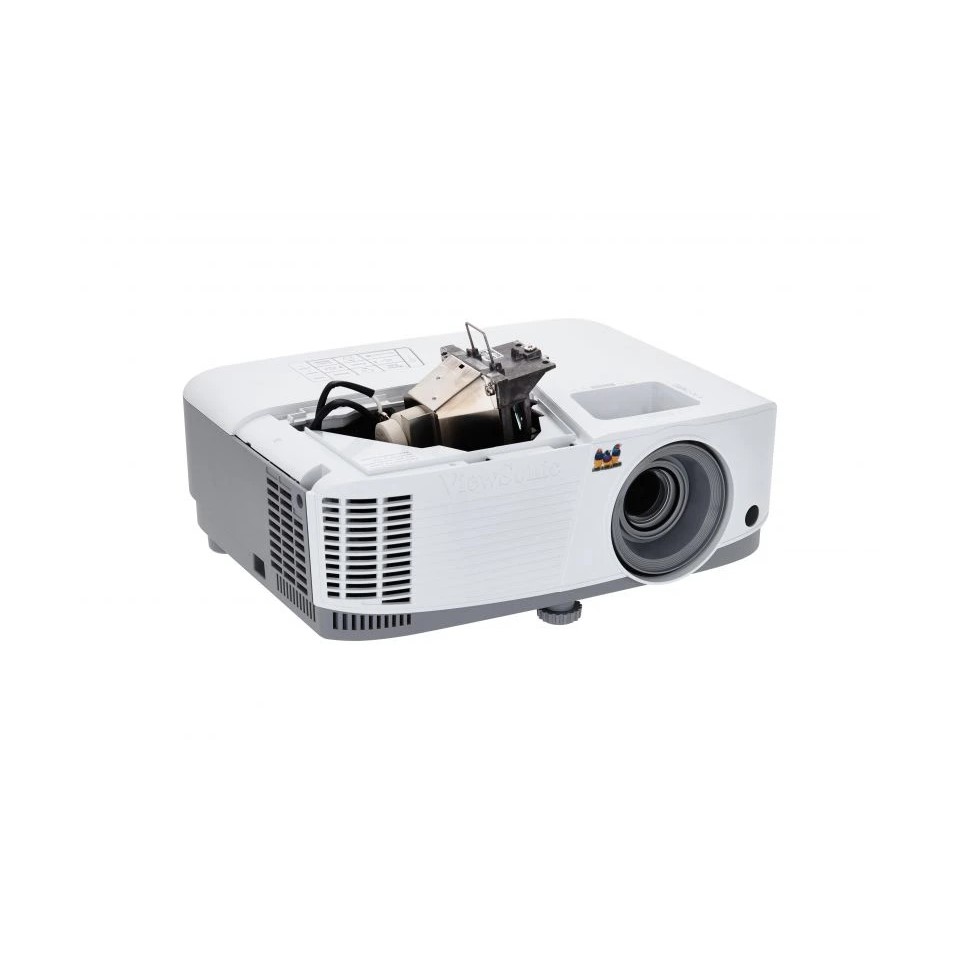

Lamp/Light Source: RLC-108

Air Filter: RSPL

Wall/Ceiling Mount: PJ-WMK-007

Carry Bag: PJ-CASE-008
