Software

Operating System: Windows 11 Pro

Core

CPU: Intel® Core™ i5-1240P 1.7G Turbo boost 4.4G

Graphics: Integrated Intel® iris Xe Graphics (80EU)

Total Available Graphics Memory: 32GB

Max Resolution up to 7680x4320@60Hz (DP)

Memory

Type: DDR4 SO-DIMM

Capacity: 16GB (Up to 32GB)

Storage

Dimension: M.2 2280 (22 x 80 mm)

Capacity: 256GB SSD

Interface: PCIE and SATA 3

Input

MIC(Microphone): x1

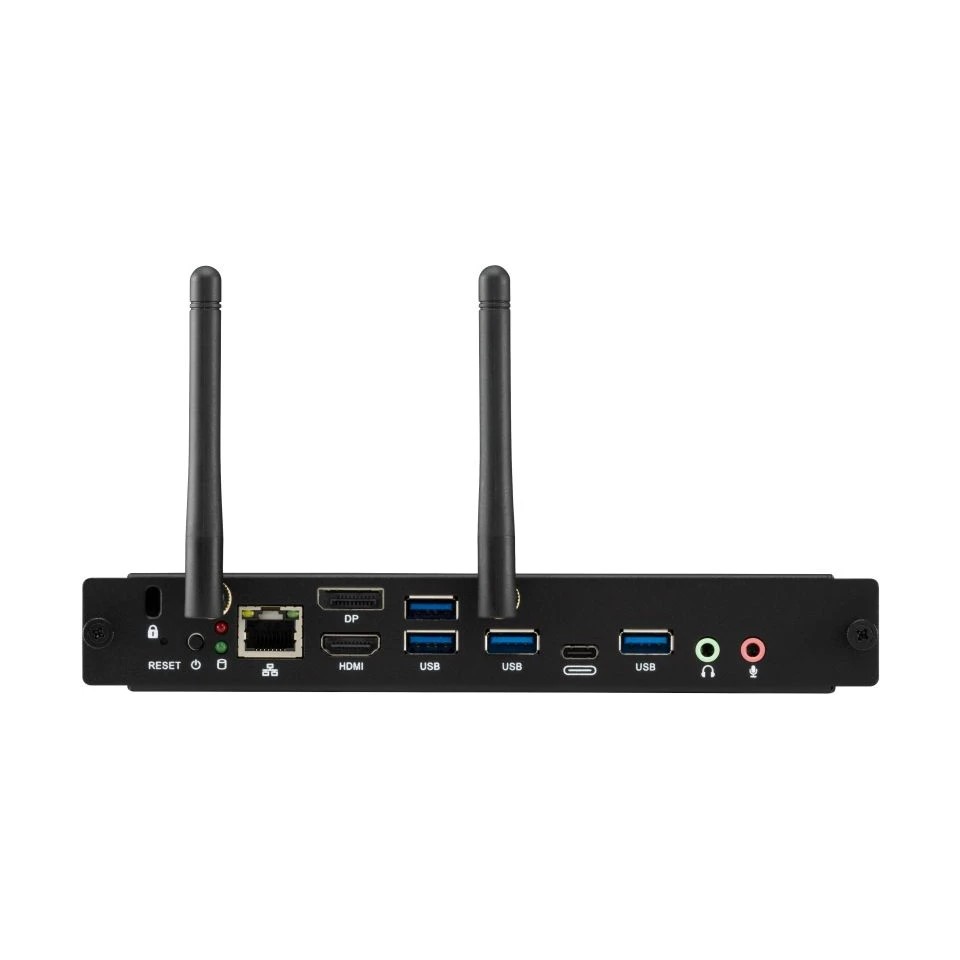

Output

DisplayPort: x1 (1.4 max. resolution 7860x4320@60Hz)

HDMI: x 1 (2.0 max, resolution 3840x2160@60Hz)

Audio: x 1 Line out

LAN

RJ45: x1

Wireless / Bluetooth

Wireless / Bluetooth: Intel® Wi-Fi 6 AX200 802.11 a/b/g/n/ac/ax 2T2R + BT5.1

USB

Type A: USB 3.0 x 4

Type C: x 1 (data only)

Bundle Software

Bundle Software: myViewBoard for Window

Adobe Reader

BIOS Winflash tool

FinchGuard (Watch Dog)

Power

Voltage: DC 12-19V/ 8A

Consumption: 96 W (Max)

Operating Conditions

Temperature (º C): -5~40°C

Humidity: 10% ~ 90% @ 40°C Non-condensing.

Dimension (W x H x D)

Physical (inch / mm): 7.95 x 4.83 x 1.18 in / 202 x 122.6 x 30 mm

Packaging (inch / mm): 10.51 x 7.56 x 2.83 in / 267x 192 x 72mm

Weight

Net (lb / kg): 1.33lb/0.6kg

Gross (lb / kg): 2.14 lb/0.97kg

Regulations

Regulations: cTUVus, FCC/ICES003, FCC ID/ ICID, TPCH DoC, Packing waste, CA65 DoC, CE EMC, (LVD or CB,CE R&TTE, ErP, RoHS Green BOM & DoC,REACH SVHC,WEEE

Package Contents

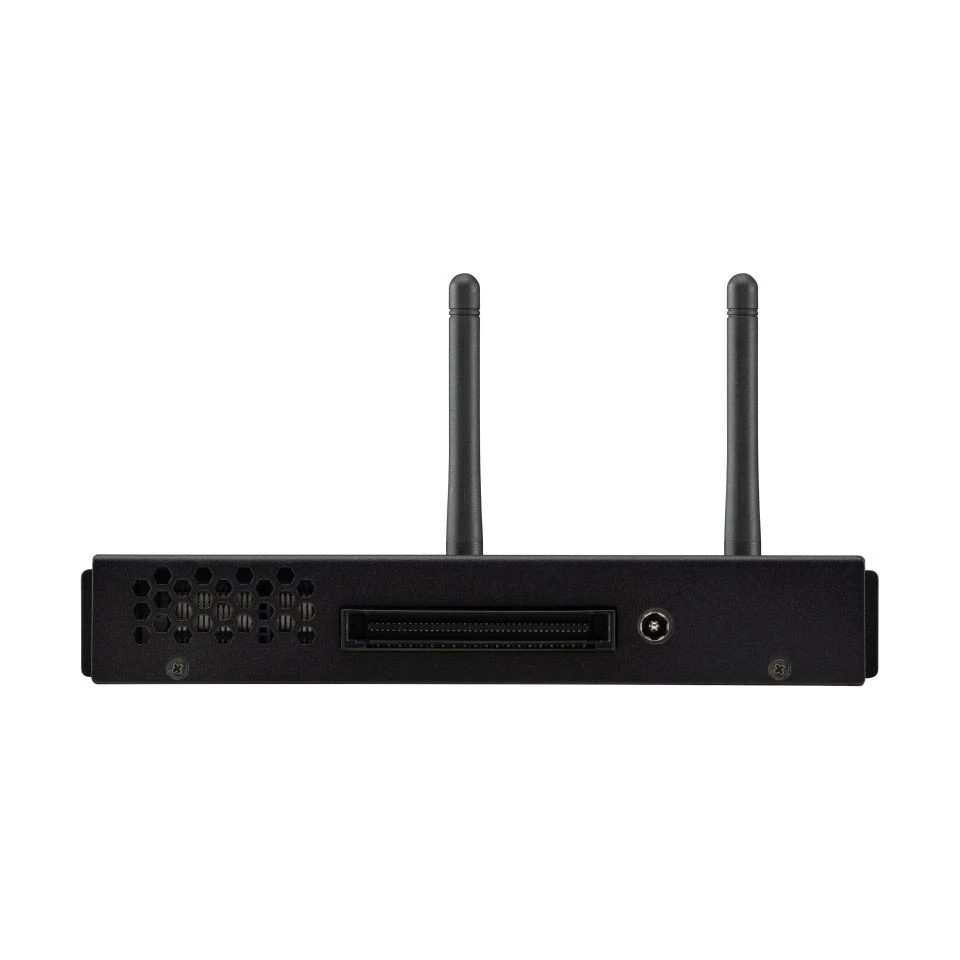

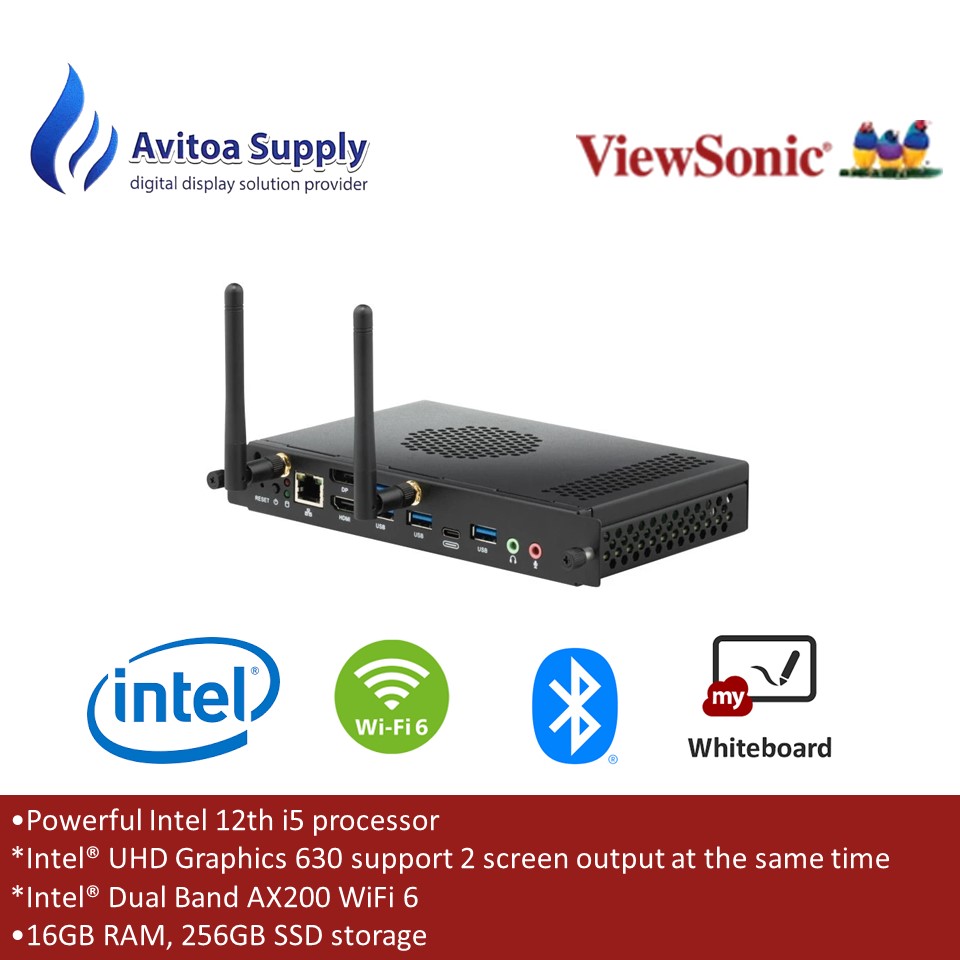

Package Contents: 1. VPC OPS

2. Quick Start Guide
