LDM136-151
136” All-in-One Direct View LED Display
OVERVIEW

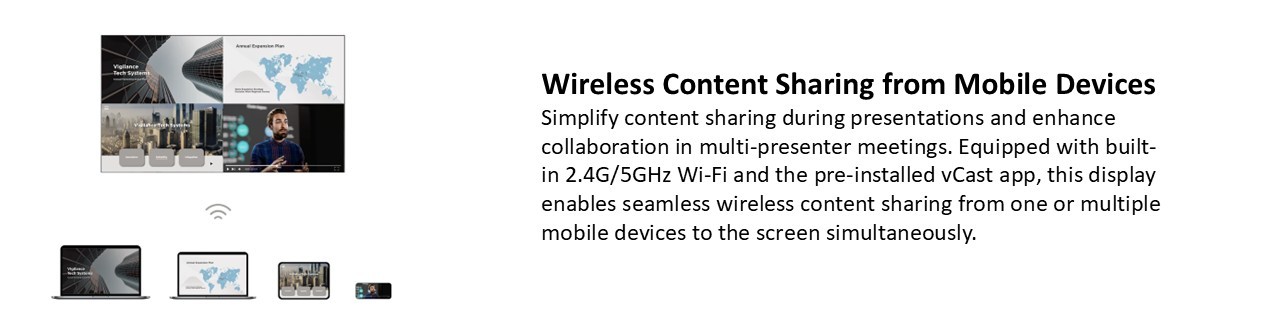

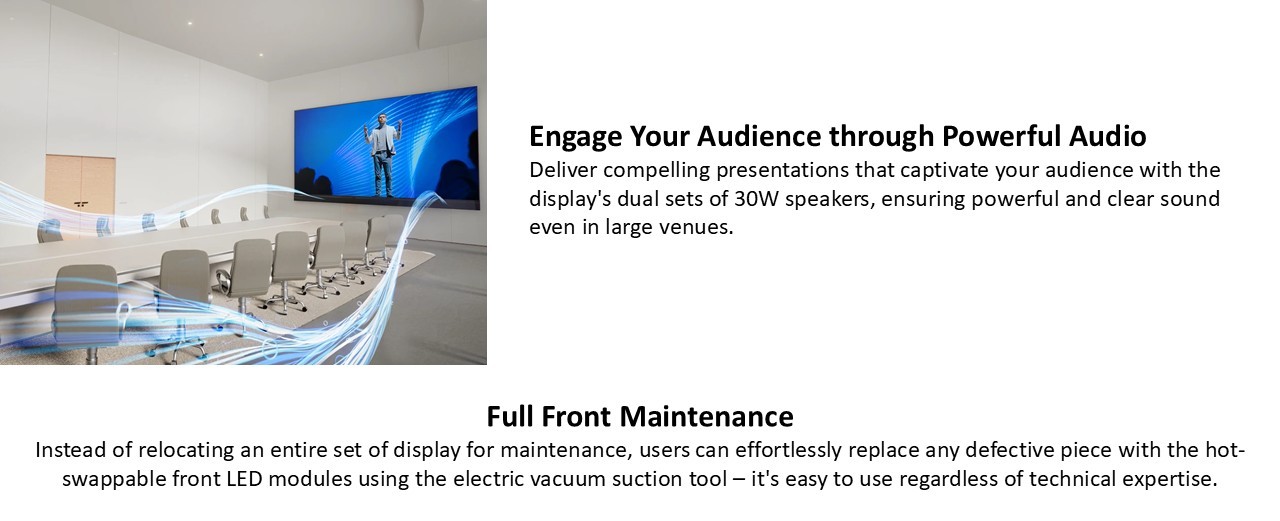

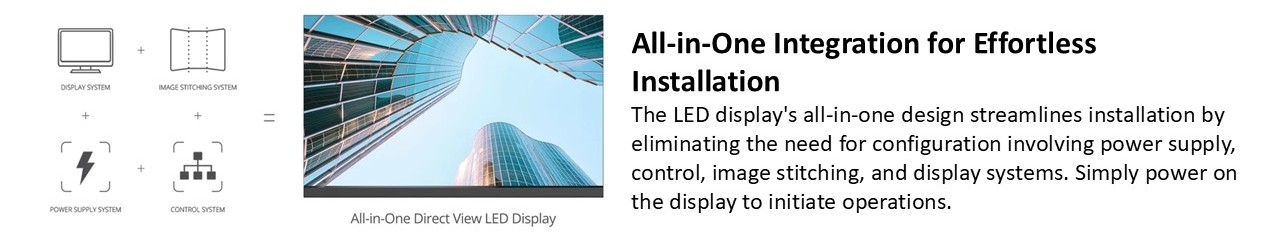

The ViewSonic LDM136-151 is a cutting-edge 136” All-in-One LED display designed to elevate visual and auditory experiences in high-end corporate and educational environments. Boasting an impressive 600-nit brightness, a high 6,500:1 contrast ratio, and a 3,840Hz refresh rate, complemented by dual 30W speakers, it ensures exceptional clarity and immersive audio for every video, presentation, or lecture. The All-in-One display features a user-friendly design for a simplified installation experience. It also utilizes the Glue-on-Board (GOB) surface treatment technology, achieving an IP54 rating for enhanced protection from collisions, dust, and moisture. Featuring a 31mm ultra-slim design and 6mm thin bezels, the display offers a premium aesthetic and ensures an engaging viewing experience. Additionally, the detachable control box enables it to achieve a nearly 99% screen-to-body ratio, seamlessly integrating into any space while providing easy accessibility. Moreover, it supports PIP/PBP display and wireless casting capabilities, offering more flexibility for collaboration. Adding to its convenience, compatibility with AV control systems enables IT staff to remotely configure the display.










Specifications
|
Display |
Screen Size: 136" Display Area (mm): 3000 (H) x 1687.5(V) Native Resolution: 1920x1080 Panel Technology: Direct view LED LED Package Type: SMD 3 in 1 (GOB) Bonding Wire: Copper Pixel Pitch (mm): 1.56 Brightness (max.): 600 nits (100 levels adjustable) Contrast Ratio (typ.): 6500:1 Orientation: Landscape Viewing Angles (typ.): H = 170, V = 170 LED Lifetime (typ.): 100,000 Hours Local Storage: Total 32GB (26GB available storage) Embedded OS: Android 9.0 Resolution Support: VGA (640 x 480) to 4K (3840 x 2160@60hz) HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p Horizontal Frequency: 31K-94kHz Vertical Scan Rate: 56-85Hz |
|
Input |
HDMI: 4 (HDMI 2.0/HDCP 2.2) (internal x3, external x1) USB Type A: 3 (USB3.0 x1, USB2.0 x2) RJ45 Input (Internet): 3 (internet x2, control x1) IR in (3.5mm): 1 Wi-Fi Input: 2.4G/5G Hz USB Type C: 1 (data only) |
|
Output |
HDMI out: 1 (HDMI 1.4/HDCP 1.4) (internal x1) Speaker: 30Wx2 Audio out (3.5mm): 2 S/PDIF: 1 USB Type A (Power): Shared with USB A input (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1) USB Type C (Power): Shared with USB Type C input (5V/1A x1) |
|
Control |
RJ45 (LAN control): x1 (shared with internet) USB Type A (Services): x1 (shared with USB A input) RS232 (DB 9-pin female): x1 IR Receiver: x1 |
|
Others |

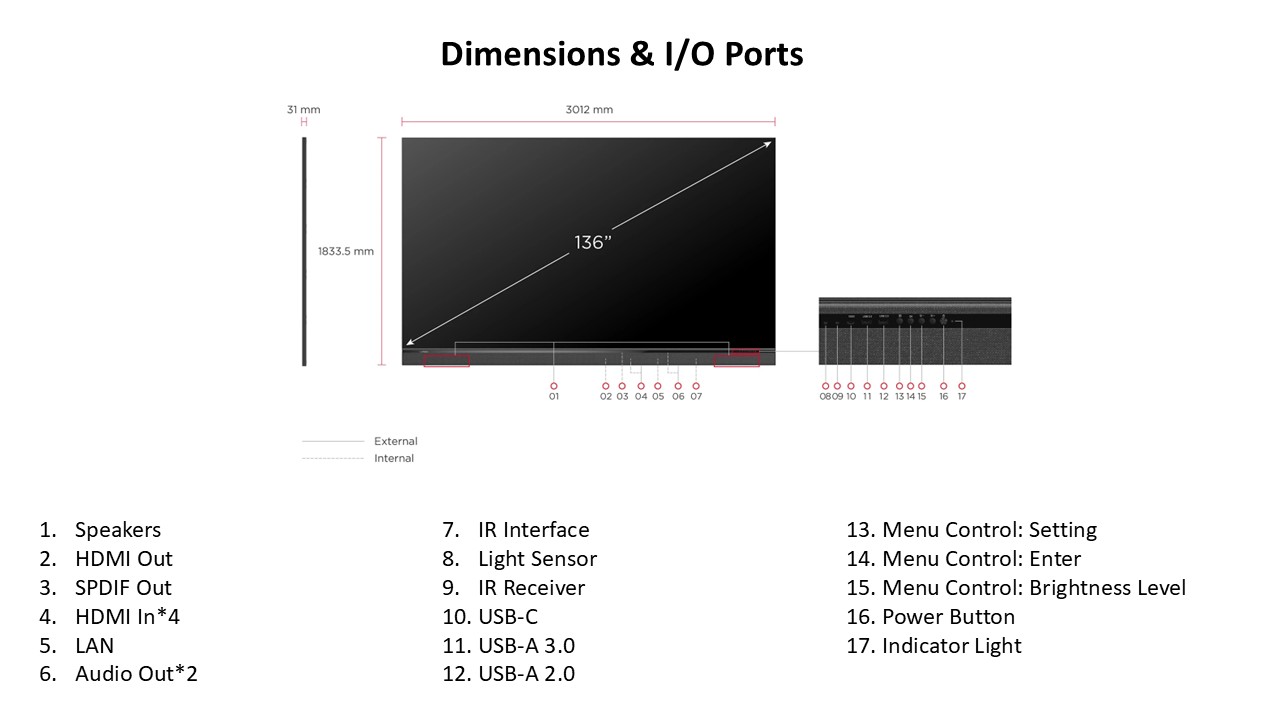

Power Supply Voltage: 100-120V/20A ~ 50/60Hz or 220-240V/10A ~ 50Hz (vary by country) Power Consumption: 609W (typ), 1740W (max) < 0.5W (Hibernate) Operating Temperature: 0~40℃ Total LED Module Quantity: 100 Ingress Protection Rating: IP54(Front) Impact Protection Rating: IK06(Front) Net Weight: 357.14 lbs (162 kg) Gross Weight: 668 lbs (303kg) Product Dimensions (WxHxD): 118.58 x 72.19 x1.2 inches (3012 x 1833.5 x 31mm) Product Dimensions (WxHxD) with wall mount: 118.58 x 72.19 x 2.1 inches (3012 x 1833.5 x 53mm) Packing Dimensions (WxHxD): 77.95 x 42.28 x 39.37 inches |
|
Standard Accessories |
Power Cord: 1 LAN Cable (Cat 5E): 1 IR Extender Cable: 1 Remote Control: 1 Installation Guide: 1 Wall Mount: 1 Spare Parts: LED module x7 Maintenance Tool: LD-MK-004 x1 LD-MK-006 x1 |
|
Optional Accessories |
Maintenance Tool: LD-MK-004 x1 LD-MK-006 x1 Floor Stand: LD-STND-009 |
