Viewsonic LDS138-151 Foldable 138” All-in-One LED Display

MYR194888.00

Brand: ViewSonic

  • Share

Get shipping estimates

Country
State
Shipping Method

LDS138-151

Foldable 138” All-in-One LED Display

=       Pre-assembled kit, ready for immediate use—no installation required

=       Foldable screen that fits easily into large passenger elevators for convenient transport

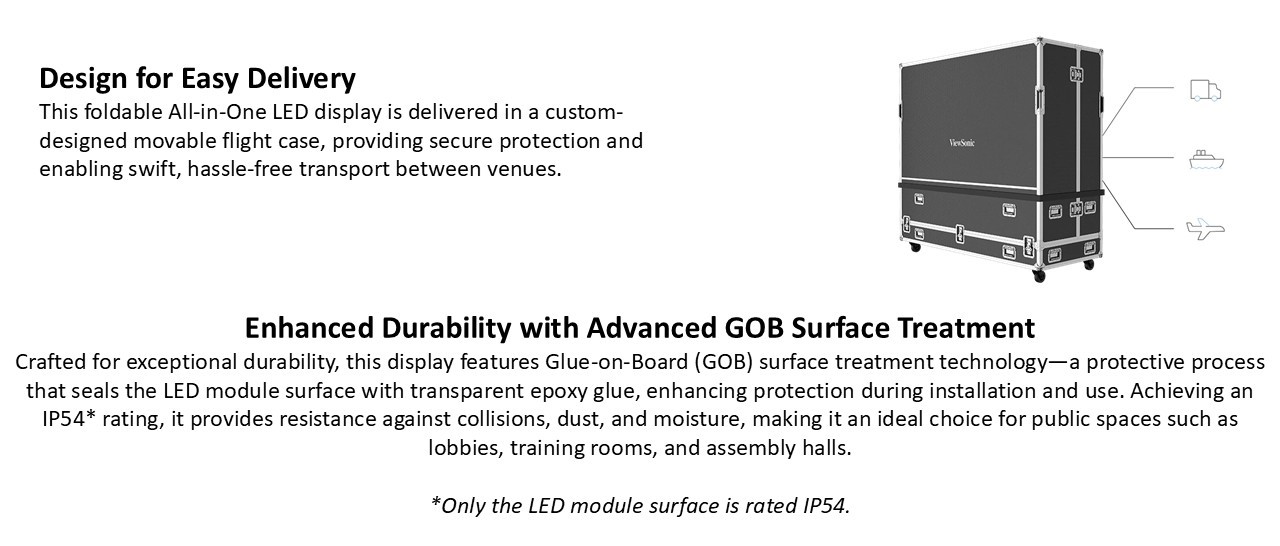

=       Shockproof, dustproof, and moisture-resistant with GOB surface treatment

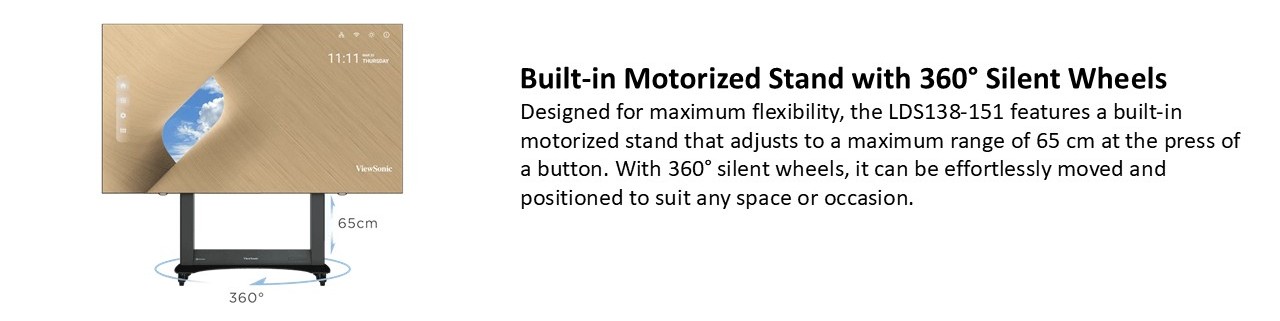

=       Built-in stand with an integrated control box and motorized height adjustment

=       Seamless large display designed to captivate audiences in any space





OVERVIEW

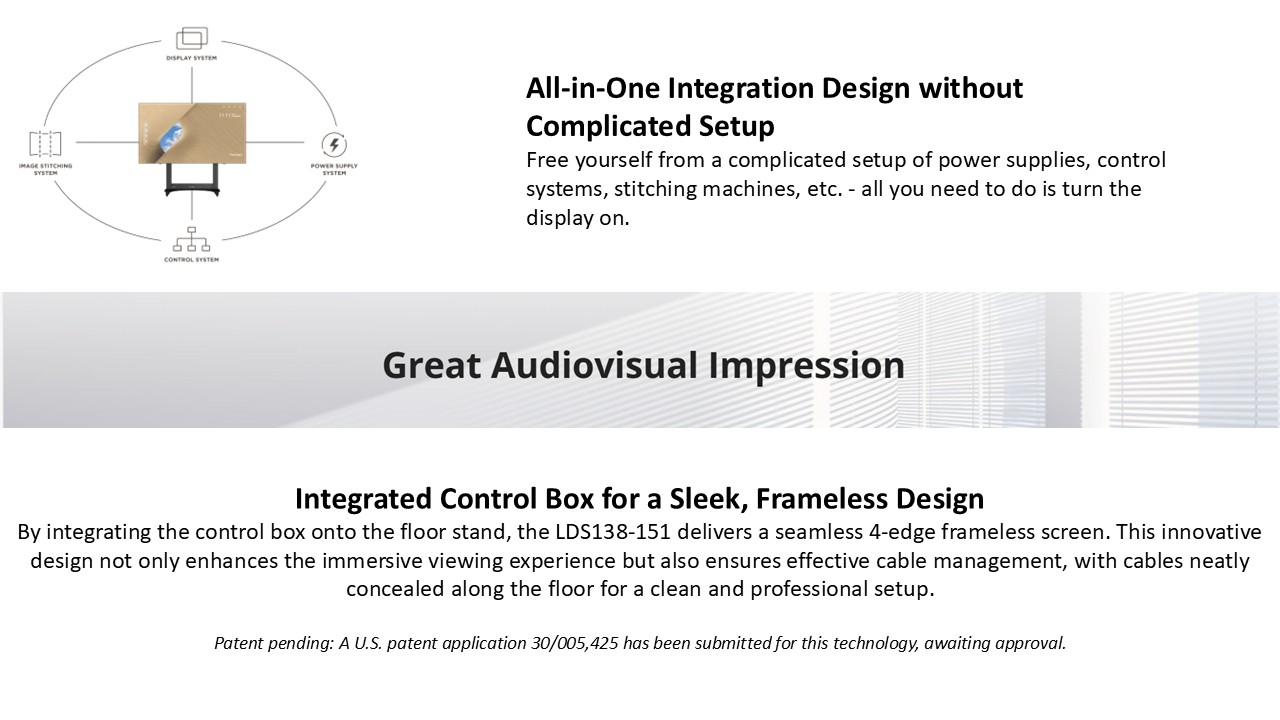

The ViewSonic® LDS138-151 is a foldable 138” All-in-One LED display that provides instant use, easy transport, and convenient operation. With a pre-assembled design and built-in motorized height adjustment, this display can be set up in just 10 minutes without wall mounting, making it ideal for large venues or spaces where renovations are not feasible. The foldable screen design significantly reduces packaging size, cutting shipping costs, improving delivery efficiency, and enabling easy transport between locations. The integrated system control box on the floor stand ensures tidy cable management and a premium, frameless visual experience. Featuring Glue-on-Board (GOB) surface treatment technology, the IP54-rated LED modules offer enhanced protection against impacts, dust, and moisture during installation and use. With its seamless large screen and dual 30W speakers, the LDS138-151 is ready to captivate audiences in environments such as high-end boardrooms, receptions, galleries, auditoriums, and other large venues.



























Specifications

Display

Screen Size: 138"

Display Area (mm): 3050 (H) x 1715(V)

Native Resolution: 1920x1080

Panel Technology: Direct view LED

LED Package Type: SMD 3 in 1 (GOB)

Bonding Wire: Copper

Pixel Pitch (mm): 1.588

Brightness (max.): 600 nits (100 levels adjustable)

Contrast Ratio (typ.): 6500:1

Orientation: Landscape

Viewing Angles (typ.): H = 170, V = 170

LED Lifetime (typ.): 100,000 Hours

Local Storage: Total 32GB

(26GB available storage)

Embedded OS: Android 9.0

Resolution Support: VGA (640 x 480) to 4K (3840 x 2160@60hz)

HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p

Horizontal Frequency: 31K-94kHz

Vertical Scan Rate: 56-85Hz

Input

HDMI: x4

(HDMI 2.0, HDCP 2.2)

(internal x3 + external x1)

USB Type A: x3

(USB3.0 x1, USB2.0 x2)

RJ45 Input (Internet): x3

(internet x2, control x1)

IR in: x1

Wi-Fi Input: 2.4G/5G Hz

USB Type C: x1

(data only)

Output

HDMI out: x1

(HDMI 1.4, HDCP 1.4)

(internal x1)

Speaker: 30Wx2

Audio out (3.5mm): x2

USB Type A (Power): Shared with USB input

(USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1, USB-C 5V/1A x1)

Control

RJ45 (LAN control): x1 (shared with internet)

USB Type A (Services): x1 (shared with USB A input)

RS232 (DB 9-pin female): x1

IR Receiver: x1

Others

Power Supply Voltage: 100-120V/20A ~ 50/60Hz or 220-240V/10A ~ 50Hz

(vary by country)

Power Consumption: 581W (typ), 1745W (max)

< 0.5W (Hibernate)

Operating Temperature: 0~40

Total LED Module Quantity: 200

Ingress Protection Rating: IP54(Front)

Net Weight: 511.16 lbs (250 kg)

Gross Weight: 919.33 lbs (417 kg)

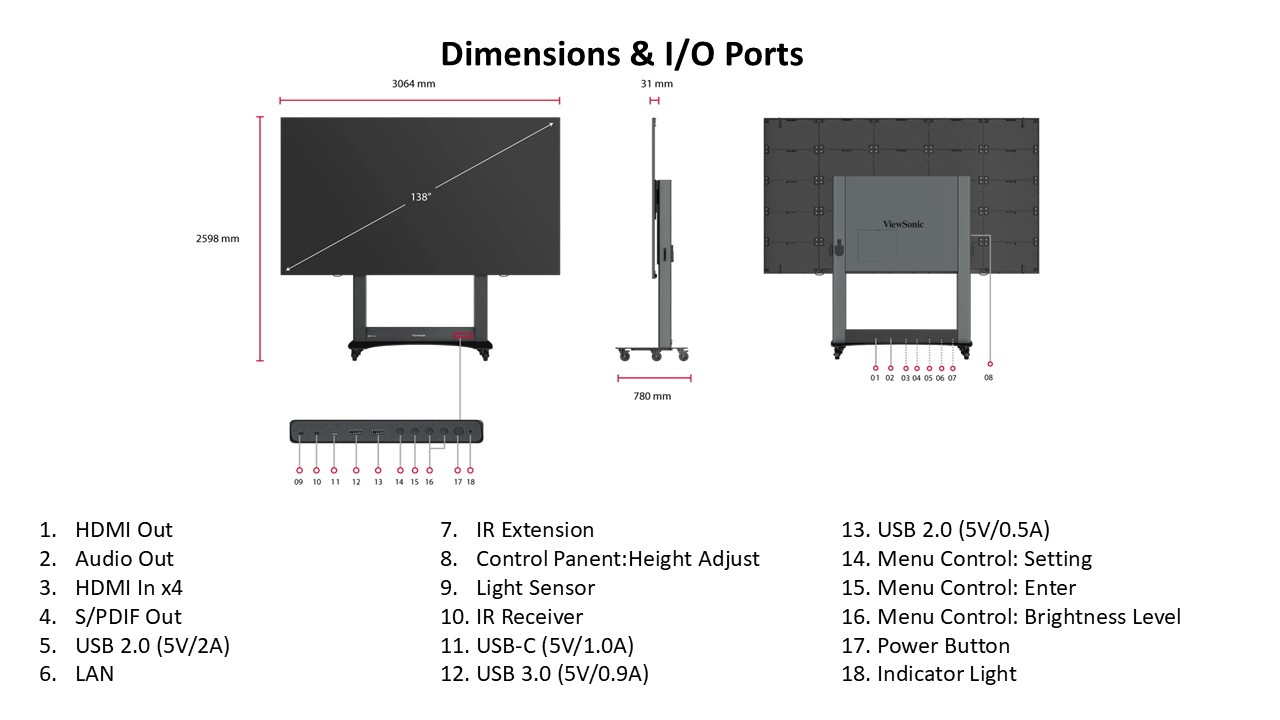

Product Dimensions (WxHxD): 1850.81x1948.4x780mm(min.)

3064x2598x780 mm(max.)

Packing Dimensions (WxHxD): 81.5x78.58x33.35 inches

(2070x1996x847 mm)

Standard Accessories

Power Cord: x1

LAN Cable (Cat 5E): x1

IR Extender Cable: x1

Remote Control: x1

QSG: x1

Spare Parts: LED module x14

Maintenance Tool: LD-MK-004 x1

LD-MK-006 x1

Optional Accessories

Maintenance Tool: LD-MK-004 x1

LD-MK-006 x1
