OVERVIEW

Model Number

JM-CCF-H-AC-32

Product Type

Multi-Device Charger

Functions

Charge/Secure/Storage

Max Power

12W/single-port independent

Slot Number

48 bays

Device Compatibility

Tablet / iPad / iPhone

Shelf Number

3 Shelves

Lock Type

Key

Product Specs

44”(H) x 24”(W) x 17.2“(D) | 232 lbs

110cm (H) x 60cm (W) x 43cm (D) | 105 kgs

Bay Specs

8” (H) x 1.1” (W) x 14.8” (D)

20cm (H) x 2.8cm (W) x 37cm (D)

48 Bays per cabinet

Bay Power

One (1) PD 3.0 USB Type A port

5Vac 2.4A Max One (1) 12W USB-A Power Delivery port per bay

Available output power range: 5V 2.4A

Bay Access

Adapter

Charger with different types of cable

Number of Charging Ports

48

Cart Input Power Specs

100-250V

50/60Hz (auto-select)

16A Max

Input Plug Type

C13 to Country plug

Input Cord Length (m)

2.6 meter

Cart Output Power Specs

100-250Vac

50/60Hz (auto-select)

16A Max

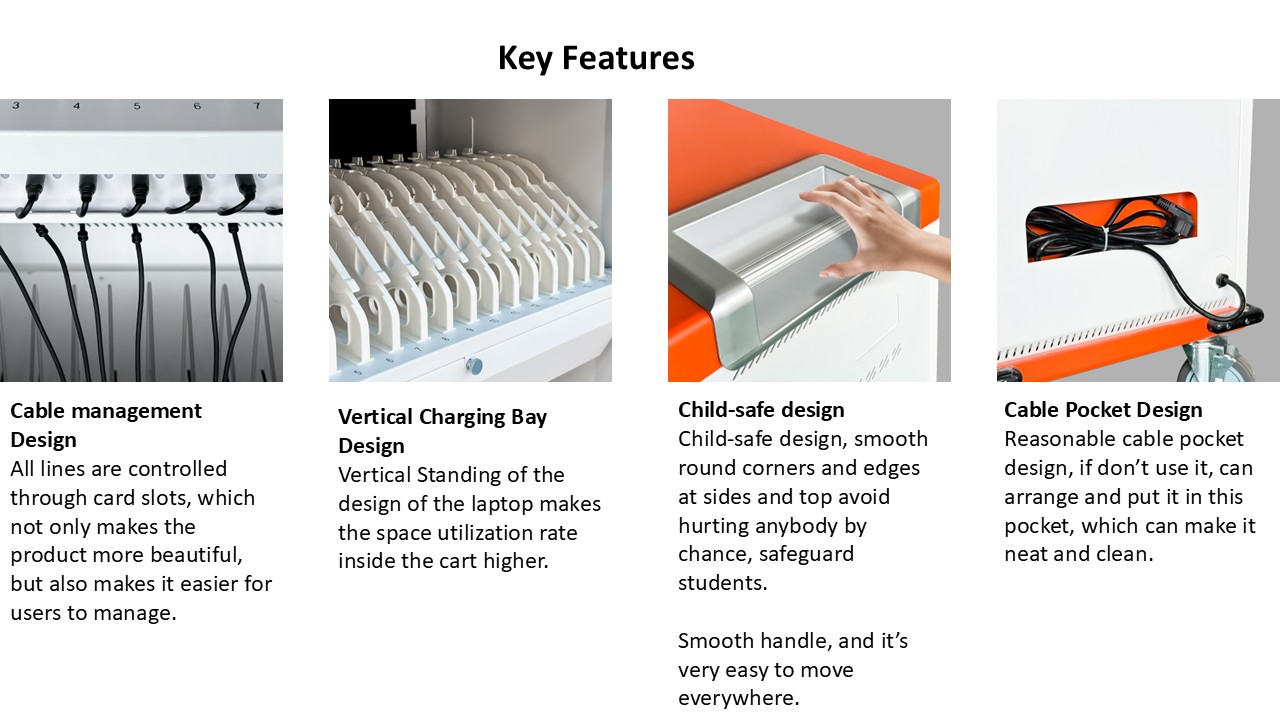

Construction System

Built-In Circuit Breaker

Flow-Through Ventilation

Cord Management

3-point Locking System

Powder-coated steel with 1.2mm thickness

Protection System

Over-charge Protection

Over-current Protection

Auto Cooling System

Warranty

2 Years Limited Warranty on main frame,

1 Year Limited electrical and all other components

Certifications Approvals

Tested to ETL, CCC, CE, Rohs

Optional Accessories

Mechanical Lockers

Smart Digital Locker

Padlock Kit

USB-C to C charging cable

USB Type C to Lightning charging cable

Handle & Caster Kit

UV Sterilization Kit

Wall-mount Kit

SMT Charging Management System

AC Time Charging Management System

Universal Key

1 locker 1 Key

20000 mah 65W Laptop Power Bank Kit

White/Orange/Black/Blue/Green as paint optional
